Electro-Voice 205-8A In-Ceiling Speaker (Discontinued)
By Electro-Voice

Electro-Voice 205-8A In-Ceiling Speaker (Discontinued)

Write a Review
Part #:
F.01U.117.419
Model #:
205-8A
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Electro-Voice 205-8A In-Ceiling Speaker is designed to handle 10 W continuous power (40 W peak) of shaped white noise for eight hours per EIA Standard RS-426A 1980. It is suitable for use in applications requiring highly intelligible speech or smooth musical reproduction.

Description
The Electro-Voice 205 is a high quality 4", full-range loudspeaker for distributed sound systems. An acoustically transparent dome encloses a small, centrally mounted free-edge cone which is used to improve high-frequency dispersion.

To ensure long-term reliability in installations, the 205-8A is designed to handle 10 W continuous power (40 W peak) of shaped white noise for eight hours per EIA Standard RS-426A 1980. It is suitable for use in applications requiring highly intelligible speech or smooth musical reproduction.

Features
  • 4" full-range loudspeaker
  • Includes an acoustically transparent dome
  • Designed to handle 10 W continuous power (40 W peak) of shaped white noise
  • Suitable for use in applications requiring highly intelligible speech or smooth musical reproduction

Specifications
Frequency Response 90 - 18,000 Hz, ±5 dB
Power-Handling Capacity 10 W
Nominal Impedance 8 ohms
Minimum Impedance 6.7 ohms (230 Hz)
Sound Pressure Level 91 dB
Maximum SPL 101 dB for 10 W @ 1 M
Voice-Coil Diameter 1.0 " (25.4 mm)
Magnet Weight 0.72 lb (0.32 kg)
Magnet Material Barium Ferrite
Flux Density 1.0 Tesla
Speaker Frame 22-gauge stamped steel
Frame Color Black
Dimensions (Diameter x H) 8.1" (206 mm) x 2.2" (56 mm)
Weight 2.0 lb (0.9 kg)

Related Products

Sold Out
Electro-Voice 205-4T In-Ceiling Speaker (Discontinued)

Electro-Voice 205-4T In-Ceiling Speaker (Discontinued)

The Electro-Voice 205-4T is a high quality 4", full-range loudspeaker for distributed sound systems. An acoustically transparent dome encloses a small, centrally mounted free-edge cone which is used...
$32.00

Usually arrives in 5-9 business days.

$32.00
Sold Out
Electro-Voice 205-8T In-Ceiling Speaker (Discontinued)

Electro-Voice 205-8T In-Ceiling Speaker (Discontinued)

The Electro-Voice 205 is a high quality 4", full-range loudspeaker for distributed sound systems. An acoustically transparent dome encloses a small, centrally mounted free-edge cone which is used to...
$38.00

Usually arrives in 5-9 business days.

$38.00
Sold Out
Electro-Voice 309-8A 8 inch Coaxial Ceiling Speaker (Discontinued)

Electro-Voice 309-8A 8 inch Coaxial Ceiling Speaker (Discontinued)

The Electro-Voice 309 series loudspeaker systems are two-way loudspeakers with 8-inch low-frequency cones and high temperature voice-coil assemblies coaxially mounted with wide-dispersion cone...
$38.00

Usually arrives in 5-9 business days.

$38.00
Sold Out

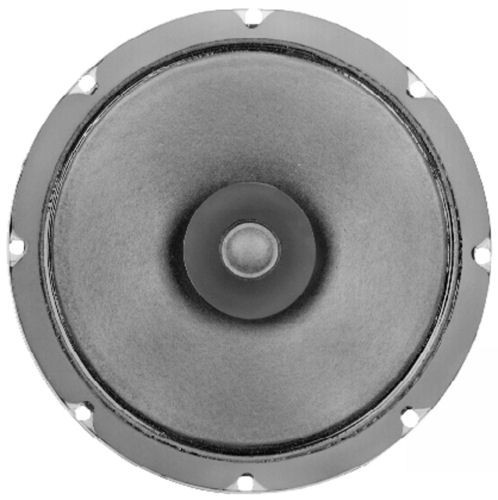

Electro-Voice 209-8A 8 inch Dual Cone Ceiling Speaker (Discontinued)

Electro-Voice 209-8A 8 inch Dual Cone Ceiling Speaker (Discontinued)

The Electro-Voice 209 is a high-quality 8 inch, full-range loudspeaker for distributed sound systems. An acoustically transparent dome encloses a small, centrally mounted free-edge cone which is...
$18.00

Usually arrives in 5-9 business days.

$18.00
Sold Out

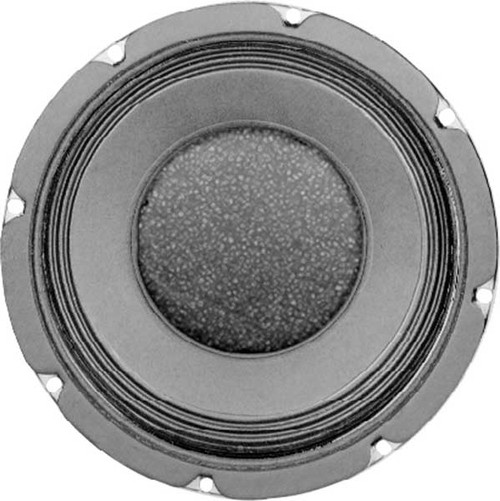

Electro-Voice PRO-8A 8 inch 2 Way Ceiling Speaker (Discontinued)
