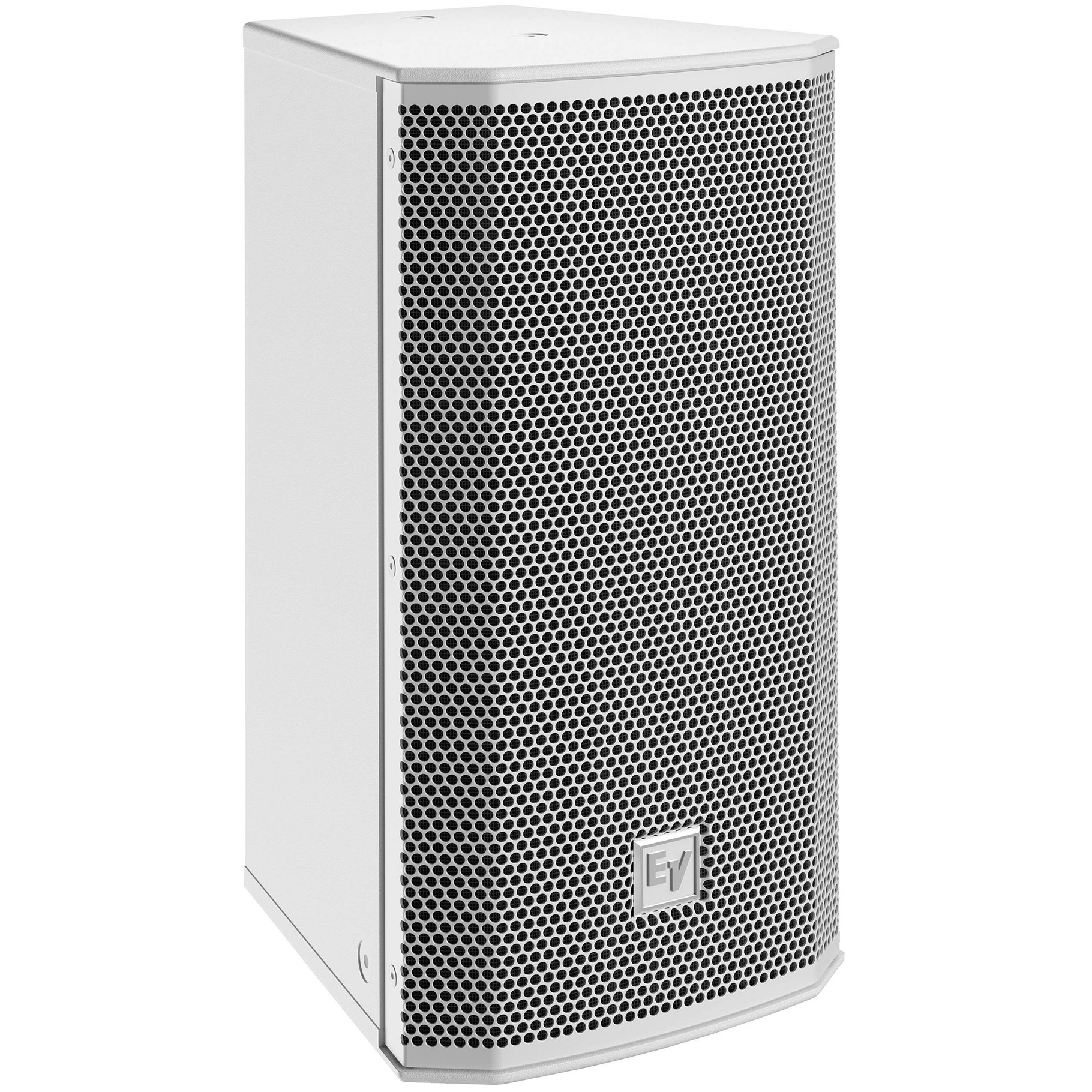

The EVC-1082-96PIW in white is a compact, cost-effective 2-way passive loudspeaker engineered for professional fixed-install applications. It combines a high-output 8" low-frequency woofer with a 1 1/4" titanium dome compression driver mounted on a rotatable constant directivity waveguide. This design provides smooth, linear response with precise vertical and horizontal control, covering 90° horizontal and 60° vertical, making it ideal for speech, music, and multi-purpose installations.
A fourth-order Linkwitz-Riley passive crossover ensures smooth off-axis response and clarity throughout the critical vocal range, while the high-efficiency drivers maintain low distortion and maximum intelligibility at high sound pressure levels. The durable 15-mm plywood enclosure is coated with EVCoat for weather resistance and longevity. Multiple M10 rigging points and optional mounts, including a U-bracket or multi-mount pan/tilt wall bracket, allow versatile placement for indoor or outdoor use.
For 70V/100V operation, the input panel can accommodate EV's TK150 audio transformer. When used, EV's Automatic Saturation Compensation (ASC) maintains low-frequency performance while presenting a stable load to the amplifier, ensuring transformer and non-transformer units sound virtually identical. With optional NL4-type connectors or weatherized gland-nuts and support for wire gauges up to 10 AWG, the EVC-1082-96PIW delivers professional sound and installation flexibility in a clean white, weather-resistant package.
| Speaker Type | 2-way passive loudspeaker |
|---|---|
| Woofer | 8" high-output low-frequency driver |
| HF Driver | 1 1/4" titanium dome compression driver |
| Coverage | 90° horizontal × 60° vertical |
| Frequency Response | 70 Hz - 20 kHz |
| Crossover | Fourth-order Linkwitz-Riley passive crossover (24 dB/octave) |
| Sensitivity | 88 dB (1W/1m typical) |
| Max SPL | 118 dB peak |
| Power Handling | 150W continuous, 300W program |
| Impedance | 8Ω nominal |
| Transformer Option | Optional TK150 audio transformer for 70V/100V operation |
| Enclosure | 15-mm plywood with durable EVCoat finish |
| Mounting | Multiple M10 rigging points, optional U-bracket or pan/tilt wall mount |
| Connectors | Wire input up to 10 AWG, optional NL4-type connectors or weatherized gland-nuts |
| Color | White |
| Dimensions (H x W x D) | 19.38" (492 mm) x 9.76" (248 mm) x 11.01" (277 mm) |
| Weight | 24.8 lbs (11.2 kg) |
| Shipping Weight | 28 lbs (12.7 kg) |
