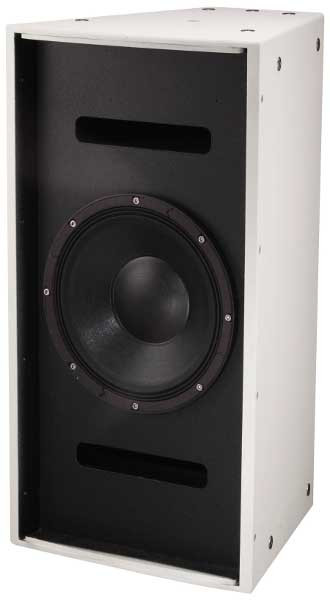

Electro-Voice EVF-1121S-PI 12" Weather Resistant Front-Loaded Bass Element (Discontinued)

Electro-Voice EVF-1121S-PI 12" Weather Resistant Front-Loaded Bass Element (Discontinued)

Name: Electro-Voice EVF-1121S-PI 12" Weather Resistant Front-Loaded Bass Element (Discontinued)
Brand: Electro-Voice
SKU: BOSCH-EV-EVF-1121S-PI
Price: 2648 USD
Availability: OutOfStock

Write a Review

Part #:

f.01u.272.548

Model #:

EVF-1121S-PI

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

In passive mode, the Electro-Voice EVF-1121S has integral low-pass filters that roll off frequencies above 100 Hz at the rate of 12 dB per octave.

Description

A range of acoustically and aesthetically matched front-loaded low-frequency systems are available to compliment your full-range systems. Cabinet heights are the same as those of EVF and EVH full-range loudspeakers systems, so you can create functional, attractive clusters using these low-frequency boxes with almost any combination of EVF and EVH loudspeakers.

Features

Enhanced bass for installations
Low-distortion EVS12SB woofer
99 dB sensitivity, 131 dB maximum SPL
Power: 400W continuous, 1600W peak
Trapezoidal 13-ply birch enclosure
EVCoat, PI or FG finish
22 M10 threaded suspension points
Four M10 metric eyebolts included

Specifications

Frequency Response (-3 dB)	70 - 98 Hz
Frequency Range (-10 dB)	48 - 120 Hz
Recommended High-Pass Frequency	50 Hz
Internal Passive Low-Pass Filter	100 Hz, 12 dB per octave
Sensitivity (SPL, 1 W/1 m)	103 dB
Max. SPL @ 1 m (calc.)	135 dB
System Power Handling (Continuous, Program, Peak)	400W continuous, 800W program, 1600W peak
Nominal Impedance (Passive)	Passive: 4Ω Biamp: 8Ω
Minimum Impedance	Passive: 3.4Ω Biamp: 5.5 Ω
Input Connections	Phoenix/Euroblock style screw terminals; dual-gland-nut input-panel cover
Coverage (Nominal -6 dB) H° x V°	Omnidirectional in normal operating range
Transducer	EVS12SB, 12 in (305 mm) Driver
Enclosure Material	13-ply weather-resistant birch
Grille	18 GA Stainless, Powdercoat, with hydrophobic cloth behind
Environmental	IEC 60529 IP55
Suspension	(22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
Dimensions (H x W x D)	30.26" (768.6 mm) x 16" (406 mm) x 16.27" (413.3 mm)
Net Weight	57.7 lbs (26.2 kg)
