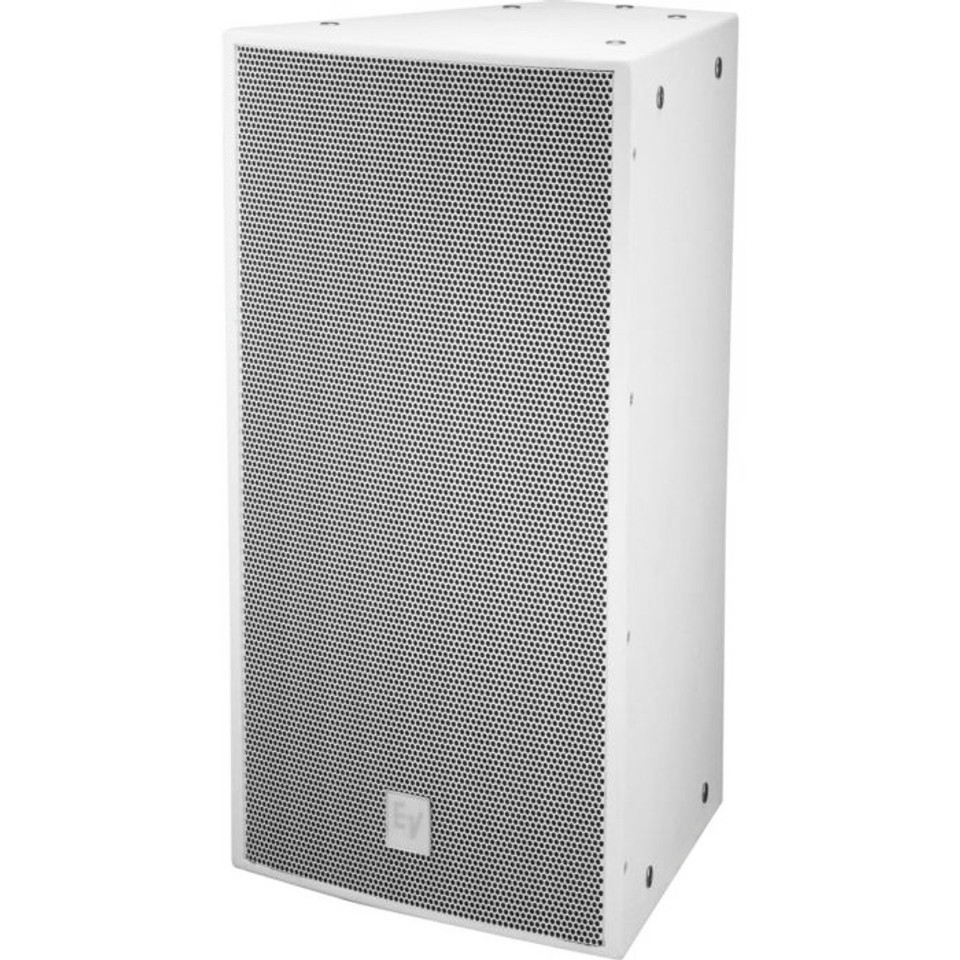

Electro-Voice EVF-1122D/99-WHT Premium 12" 2-Way 2400W Arrayable Point-Source Loudspeaker with 90° x 90° Coverage - White

Electro-Voice EVF-1122D/99-WHT Premium 12-Inch 2-Way Point-Source Loudspeaker

The EVF-1122D/99-WHT is a premium white 12-inch, two-way arrayable point-source loudspeaker engineered for maximum performance and versatility in professional fixed-install audio applications. Delivering 2400 watts peak power, 600 watts continuous, and 97 dB sensitivity, this compact system provides clean, full-range sound at 131 dB maximum SPL. Its rotatable 90° x 90° constant directivity waveguide ensures precise, uniform coverage, making it ideal for theaters, auditoriums, houses of worship, arenas, and other venues requiring high-output, high-intelligibility sound in a clean white finish.

At the core of the EVF-1122D/99-WHT is the DH7N 3-inch titanium compression driver paired with the DVX3121A 12-inch woofer, both optimized with FEA modeling for low distortion, high efficiency, and exceptional vocal clarity. The 24 dB/octave crossover network features equalization for smooth frequency response and linear off-axis performance, while an integrated HF protection circuit ensures long-term reliability. An externally accessible passive/active jumper allows flexible configuration, and an optional 70V/100V transformer kit supports distributed audio system setups.

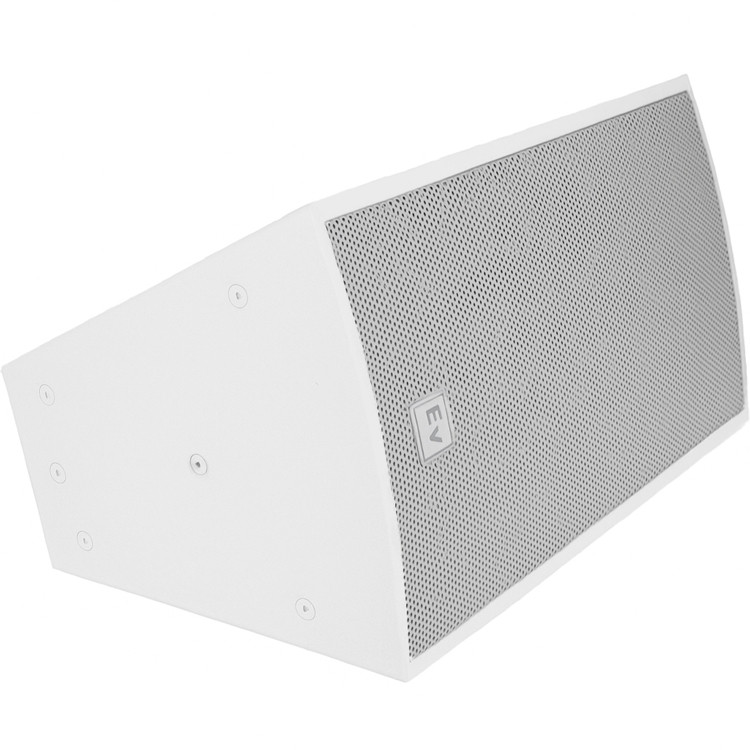

Built to last, the loudspeaker features a trapezoidal, weather-resistant birch enclosure with clean white EVCoat finish, designed to withstand challenging environments while maintaining professional aesthetics. Its innovative rigging system supports vertical and horizontal arrays with other EVF and EVH series models, providing maximum installation flexibility. Available in partially-weatherized (PI) and fully-weatherized (FG) versions with stainless-steel grilles and gland nut connectors, the EVF-1122D/99-WHT combines power, durability, and style to deliver outstanding Electro-Voice performance for any permanent installation.

• Premium white 12" 2-way arrayable point-source loudspeaker
• 2400W peak/600W continuous power handling
• 97 dB sensitivity, 131 dB maximum SPL
• Rotatable 90° x 90° constant directivity waveguide
• High-output DH7N 3" titanium compression driver
• DVX3121A 12" woofer for low distortion and high efficiency
• Clean white birch plywood enclosure with EVCoat finish
• Externally selectable passive or active operation
• Optional 70V/100V transformer kit for distributed systems
• Flexible rigging for vertical or horizontal arrays

Data Sheet

Manual
