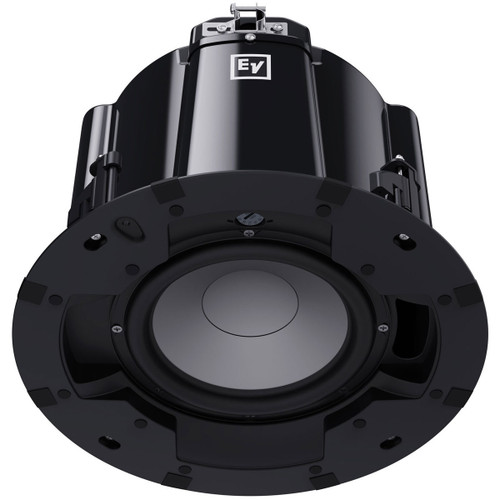

The Electro-Voice EVID-C8.1S-G2 is a complete 8-inch subwoofer that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The subwoofer features a point-source design to improve off-axis response and overall uniform coverage.

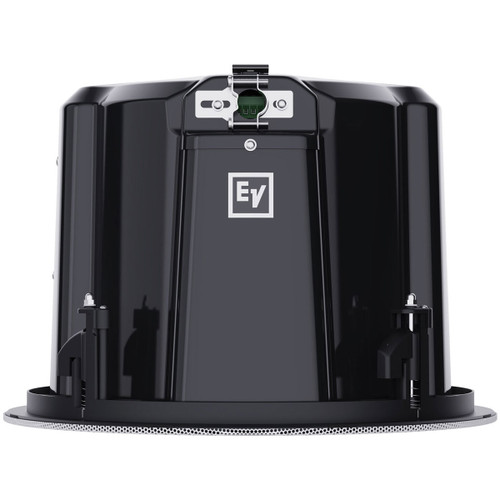

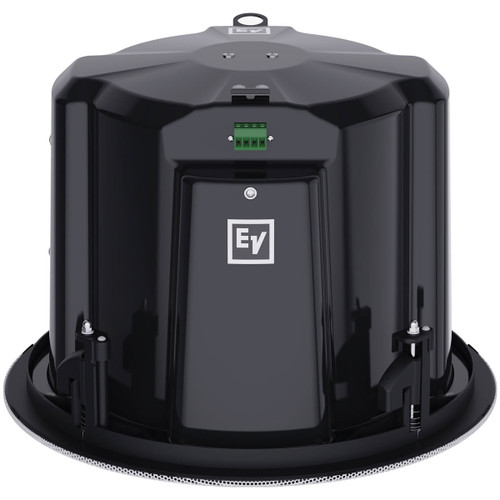

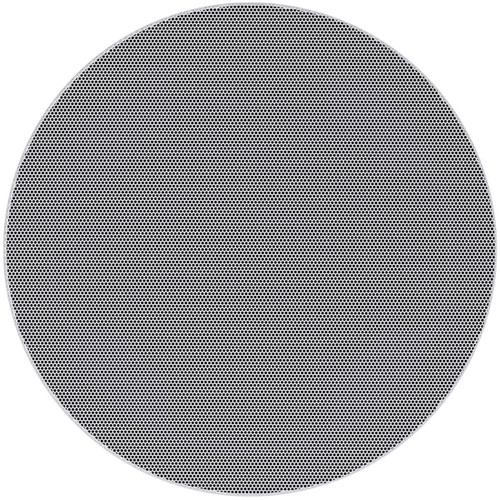

The EVID-C8.1S-G2 utilizes a transformer that offers a selection of 3.75 (70-V only), 7.5, 15, 30 or 60 watts delivered to the subwoofer system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.1S-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiberbased ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
| Frequency Range (-10 dB) | 45 Hz - 380 Hz |
|---|---|
| Maximum Continuous SPL | 113 dB |
| Maximum Peak SPL | 119 dB |
| Sensitivity | 90 dB SPL 1 W, 1 m |
| Coverage Pattern | 360° conical |
| Power Handling | Continuous: 180W Peak: 720W |
| Nominal impedance | 8 Ω (Low Z) |
| Long Term Power Handling | Continuous: 150W Peak: 600W |
| Input Configuration | 8 Ω, 70V/100V |
| 70V/100V Power Taps | 70V: 60 W; 30 W; 15 W; 7.5 W; 3.75 W 100V: 60 W; 30 W; 15 W; 7.5 W |
| Wire Size | 12 AWG (maximum) |
| Wire Diameter | 3.3 sq. mm (maximum) |
| Mounting Depth | 9.5" (240 mm) |
| Mounting Cutout | 12.7" (322 mm) |
| Ceiling Thickness | 0.5 - 1.5" (12.5 - 38 mm) |
| LF Driver | 8" |
| Connector Type | 4-pin Euroblock Input + Pass through |
| Material | Steel |
| Grille Material | Powder coated steel |
| Color | White (RAL 9003 Signal white) |
| IP Rating | IP34 |
| Weatherization | Indoor |
| Safety Agency Ratings | UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62638 |
| Dimensions (Dia x D) | 13.9" (353 mm) x 9.9" (350.7 mm) |
| Weight (ea) | 16 lbs (7.25 kg) |
