The Electro-Voice EVID-C8.2-G2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage.

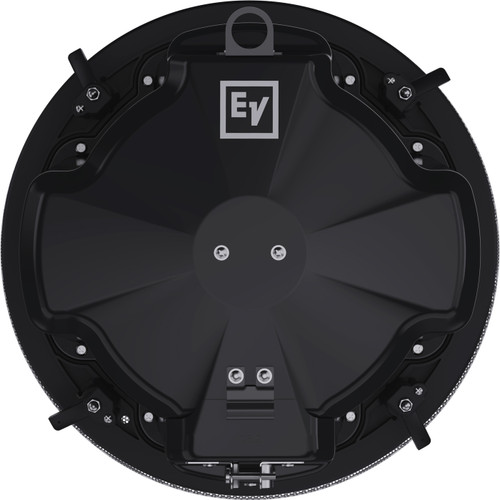

The EVID-C8.2-G2 utilizes a transformer that offers a selection of 3.8 (70-V only), 7.5, 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel.

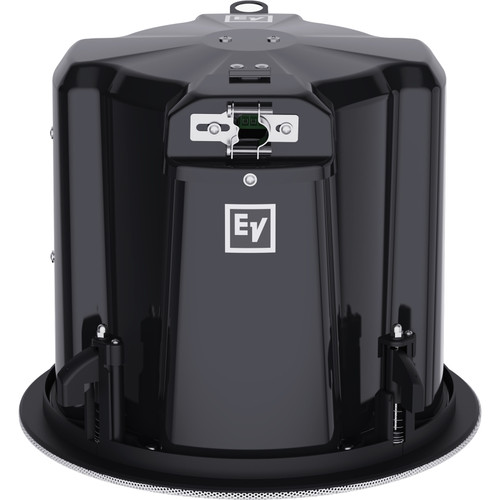

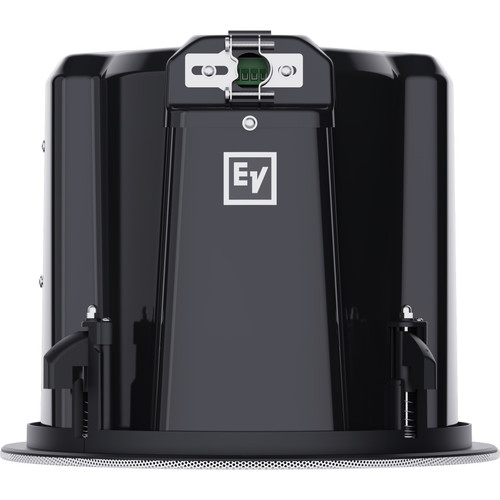

The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers. A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber based ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions and to be used in combination with other EVID surface-mount and in-wall speakers.
| Frequency Response (-10 dB) | 50 Hz - 20 kHz |
|---|---|
| Sensitivity (1 W, 1 m) | 92 dB SPL 1 W, 1 m |
| Coverage Pattern | 90° conical |
| Power Handling | Continuous: 90W Peak: 360W |
| Nominal impedance (Ω) (Low Z) | 8Ω |
| Input Configuration | 8Ω, 70V/100V |
| 70V/100V Power Taps | 70V: 15W; 3.75W; 7.5W; 30W; 60W 100V: 15W; 7.5W; 30W; 60W |
| LF Transducer | 8" |
| HF Transducer | 1" |
| Connector Type | 4-pin Euroblock Input + Pass through |
| Material | Steel |
| Grille Material | Powder coated steel |
| Color | White (RAL 9003 Signal white) |
| IP Rating | IP34 |
| Weatherization | Indoor |
| Dimensions (D x Dia) | 10" (255 mm) x 11.8" (300 mm) |
| Weight (ea) | 11 lbs (5 kg) |
