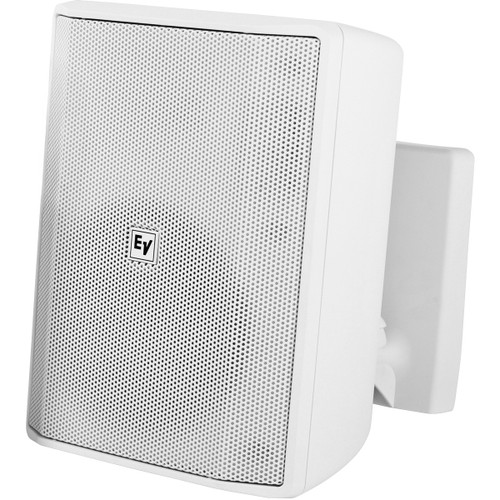

The EVID-S5.2TW is a professional-grade pair of 5.25" 2-way full-range surface mount loudspeakers designed for outstanding performance in both indoor and outdoor environments. With up to 300W peak power handling, these speakers deliver smooth, intelligible sound and extended low-frequency response, ideal for background and foreground music or paging applications in restaurants, patios, retail stores, fitness centers, and hospitality venues.
Each speaker features a long-throw 5.25" woofer and a precision high-frequency driver for balanced, dynamic sound. The integrated 70V/100V transformer includes multiple tap settings for distributed systems, plus an 8-ohm bypass for direct low-impedance connection. The IP54-rated ABS composite white enclosure and powder-coated grille ensure durability against weather, sun, and moisture.
Installation is quick and secure thanks to the QuickMount Strong-Arm bracket, allowing 90° horizontal and 45° vertical rotation for flexible positioning. Combining rugged reliability, modern aesthetics, and superior Electro-Voice sound, the EVID-S5.2TW delivers professional performance and lasting value for a wide range of installation environments.
| Frequency Response (-3 dB) | 85 Hz - 20 kHz |
|---|---|
| Frequency Response (-10 dB) | 60 Hz - 20 kHz |
| Sensitivity | 90 dB |
| Max SPL | 109 dB (115 dB Peak) |
| Coverage Angle | Horizontal 90°, Vertical 90° |
| Power Handling | 75W (300W Peak) Continuous Pink Noise (100 hours) |
| Low Z | Yes |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6Ω |
| Recommended High-Pass | 60 Hz (24 dB/octave) |
| Input Transformer (70V/100V) | 30W |
| Transformer Taps | 70V: 3.7W, 7.5W, 15W, 30W, 8Ω 100V: 7.5W, 15W, 30W, 8Ω |
| LF Transducer | 5.25" (133 mm) |
| HF Transducer | 0.75" (20 mm) |
| Connectors | Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm) |
| Environmental | IP54 (per IEC-60529) |
| Color | White (RAL 9003) |
| Included Hardware | Mounting bracket and 5-mm Allen wrench |
| Dimensions (H x W x D) | 10" (255 mm) x 7.1" (180 mm) x 6" (151 mm) |
| Weight | 14 lbs (6.35 kg) |
| Shipping Weight | 17.5 lbs (7.9 kg) |
