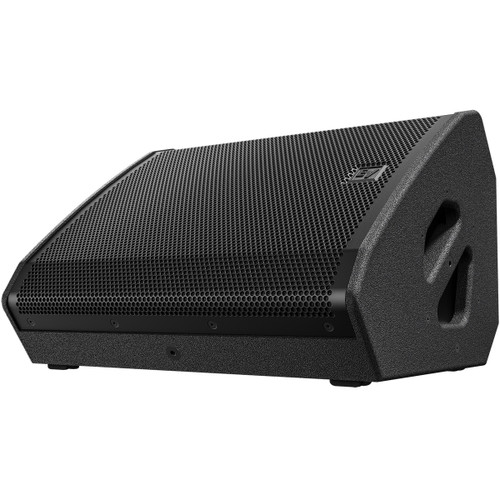

The MFX-12MC-W 12" 2-way multi-function coaxial monitor delivers professional-grade sound from a compact, versatile package. Designed for live stage monitoring, short-throw sound reinforcement, front and side fill, or permanent installations, it combines high output, clarity, and precise coverage. With a maximum SPL of 135 dB and a frequency range of 62 Hz to 18 kHz, the MFX-12MC-W offers reliable, powerful performance in a low-profile, ergonomic white enclosure that preserves sightlines on stage.
Equipped with a coaxial driver and rotatable horn, this monitor provides consistent coverage and can be oriented horizontally for stage use or vertically for short-throw applications. Its constant-directivity waveguide enhances midrange coverage, minimizes feedback, and allows excellent gain-before-feedback performance. The enclosure features a recessed input panel with NL4 connectors, loop-through, and a passive/bi-amp switch, along with factory DSP presets optimized for multiple applications.
Durable and versatile, the MFX-12MC-W includes an integrated pole cup, four M10 suspension points, and compatibility with truss clamps, stand mount adapters, or custom U brackets for wall or flown installations. Lightweight yet rugged, it is perfect for touring, rental, or permanent installations where flexibility, durability, and professional sound are essential.
| Frequency Response (-3 dB) | 62 Hz - 18 kHz |
|---|---|
| Frequency Range (-10 dB) | 50 Hz - 19 kHz |
| Rotatable Coverage | 60° x 40° FOH, 40° x 60° Monitor |
| Rec. High-Pass Frequency | Use factory preset |
| Axial Sensitivity | 97 dB (1W/1m) |
| Max. SPL | 135 dB |
| Power Handling | 450W (Continuous), 3000W (Peak) |
| Nominal Impedance | 8Ω |
| Transducer | CXCA3128-1CA |
| Connectors | Neutrik NL4 input with NL4 pass through |
| Monitor Angles | 35° and 55° |
| Grille | 1.5 mm zinc plated steel with corrosion resistant coating |
| Handles | Two, with integrated cup for standard 35 mm pole |
| Suspension | Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories |
| Enclosure | 12-18 mm Baltic birch plywood with EVCoat |
| Color | White |
| Dimensions (H x W x D) | 11.7" (298 mm) x 19.7" (500 mm) x 16.5" (420 mm) |
| Weight | 42 lbs (19 kg) |
| Shipping Weight | 46.7 lbs (21.2 kg) |
