Electro-Voice R300-E Wireless Headworn Microphone System - C Band (516 - 532 MHz)

Part #:
F.01U.306.184
Model #:
R300-E
MSRP: $413.00
$375.00
Availability: Usually arrives in 10-15 business days Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Electro-Voice R300-E is a robust UHF wireless bodypack system, suitable for any application where the convenience of a wireless headworn microphone is required.

Description

The Electro-Voice R300 opens a new category of wireless microphone in today's market; Entry Level Professional. With one-touch ClearScan and EZ sync transmitter update the R300 is as easy to setup and use as any entry level wireless microphone. But the R300 also a true rack mountable metal receiver, metal body pack and handheld transmitters, and remote mountable antennas normally found in higher priced professional systems.

With the touch of one button ClearScan scans through all 32 preset channels and selects the clearest channel. Having the clearest channel ensures noise free operation with the longest operating range. ClearScan gives you confidence In an increasingly difficult RF world.

Matching the transmitter frequency to the receiver also requires just the touch of a button. EZsync uses infrared technology to set the transmitter to the correct frequency and confirms operation in one automatic step. EZsync ensures error free setup. BP-300 is an all new metal bodypack transmitter that is rugged, compact, and easy to use. Using two AA
batteries for 14 hours of use, the BP-300 is one of the most economical transmitters around for applications that require daily operation. The mute function keeps the RF signal live while it mutes the audio to protect your channel and prevent noise in the audio system.

The HM3 is a high quality omnidirectional condenser headworn microphone. Designed for use with the R300-E wireless bodypack system, the HM3 allows users the convenience of a hands-free presentation or performance experience.

The HM3's light weight adjustable headband fits securely over both ears, while the boom with flexible gooseneck end can be fitted to either the left or right side ear hooks.

A generous 1 meter cable clips securely to the headband, and terminates with a TA4F connector for attachment to the R300 bodypack transmitter.

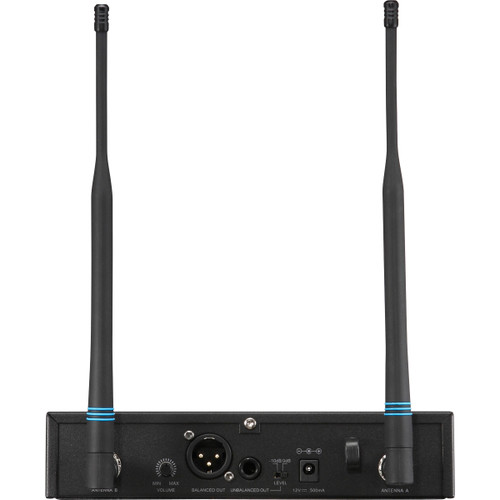

The receiver for the R300 system is equally at home on a table top or in a 19 inch equipment rack. Rack mount kits and front mount antenna cables are available for the R300 for a professional installation.

Features

  • ClearScan automatically finds the clearest channel
  • EZsync one-step channel setup
  • HM3 omni-directional microphone
  • 14 hour battery life from two AA alkaline
  • Rugged metal transmitter
  • Metal receiver chassis with optional rack mount

Specifications

R300 Receiver
Receiver Type Synthesized PLL
Frequency Range (RF) A Band 618 – 634 MHz
B Band 678 – 694 MHz
C Band 516 – 532 MHz
Number of Channels 32
Modulation ± 40 kHz
Diversity True Antenna
RF Sensitivity
Image Rejection > 55 dB
FCC Certification Approved under Part 15
Power Requirements 12 – 16 VDC, 500mA max
Operating Temperature 5° to 45° C (41° to 113° F)
Frequency Response 80 Hz – 18 kHz ± 2 dB
Balanced Output 20 dBV (max @ 40kHz deviation)
Unbalanced Output Adjustable 8 mV to 0.755V RMS
Distortion < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
Signal-to-Noise Ratio > 100 dB A-Weighted
Dynamic Range > 95 dB
Dimensions (H x W x D) 1.72" (43 mm) x 7.8" (206 mm) x 8" (210 mm)
BP-300 Transmitter
Radiated Output 8 mW typical
Back Lit LCD Display Channel, Frequency, Mute, and Battery Level
Microphone Head Electro-Voice PL22 Cardioid Dynamic
TA4F Connector Wiring Pin 1: Ground, Pin 2: Mic Input, Pin 3: +5V bias, Pin 4: N/C
Power Requirement Two AA batteries
Battery Life (Typical) > 14 hours with AA alkaline typical
Bodypack Antenna Flexible external 1/4 wave
Dimensions (H x W x D) 3.3" (84 mm) x 2.6" (66 mm) x 0.89" (23 mm)
