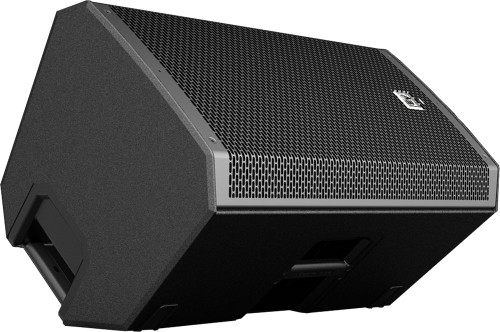

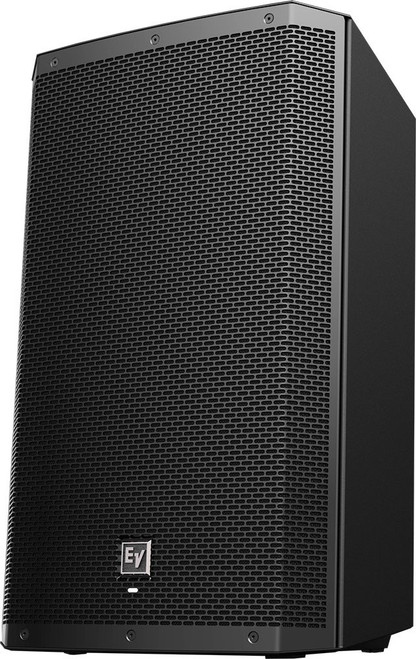

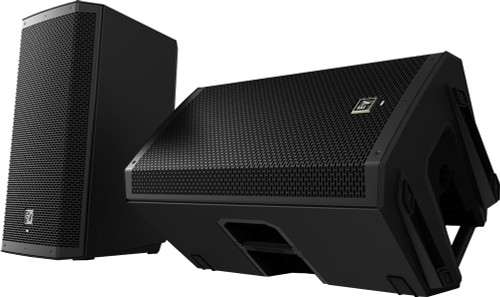

The ZLX-12 cuts through the competition with the most complete and innovative package of features in their class–all of which work together to make it quicker and easier than ever to take control of your sound, whatever the gig. When choosing a loudspeaker, it's always wise to ask "What's inside the box?" then take a listen and hear the EV difference for yourself. Featuring custom drivers housed in an innovative new cabinet design, the two compact and versatile ZLX-12's make EV's renowned sound quality and rugged reliability more accessible than ever before. A compact and versatile loudspeaker featuring EV engineered drivers in a rugged enclosure. Whether pole-mounted or used as a floor monitor, ZLX-12 delivers stunning sonic impact and intelligibility the legendary "EV Sound" the pros trust.
Big sound doesn't need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage. The ZLX-12 has a 12 inch woofer for low-end punch in a compact enclosure and 1.5" high-frequency. It includes a titanium compression driver. It's frequency range is 55 Hz – 20 kHz, with 250 W continuous and 1000 W peak power handling, and 95 dB SPL sensitivity; 125 dB max SPL.
The compact, lightweight ZLX-12P was designed to give you power and performance beyond the scope of other small-format loudspeakers, making it a standout choice for smaller-venue sound reinforcement or stage-monitoring. Pound for pound, no other similarly sized composite box comes close. It is a 1000 W (Class D), with 126 dB max SPL, and 50 Hz – 20 kHz. It includes a 12" woofer and 1.5" high-frequency titanium compression driver.
| Frequency Response | 82 Hz – 18 kHz |
|---|---|
| Frequency Range | 55 Hz – 20 kHz |
| Axial Sensitivity | 95 dB |
| Maximum SPL | 125 dB |
| Recommended HP Frequency | 40 Hz |
| Coverage (Hort. x Vert.) | 90° x 60° |
| Power Handling | 250 Watts Continuous, 1000 Watts Peak |
| LF Transducer | EVS-12K, 300 mm (12 in) Woofer |
| HF Transducer | DH-1K |
| Crossover Frequency | 2.1 kHz |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7 Ω |
| Connectors | Dual NL4 |
| Enclosure | Polypropylene |
| Grille | 18 Gauge Steel with Black Powder Coat |
| Dimensions (H x W x D) | 24" (610 mm) x 14" (356 mm) x 14" (356 mm) |
| Net Weight | 32.8 lbs (14.9 kg) |
| Shipping Weight | 39.6 lbs (18 kg) |
