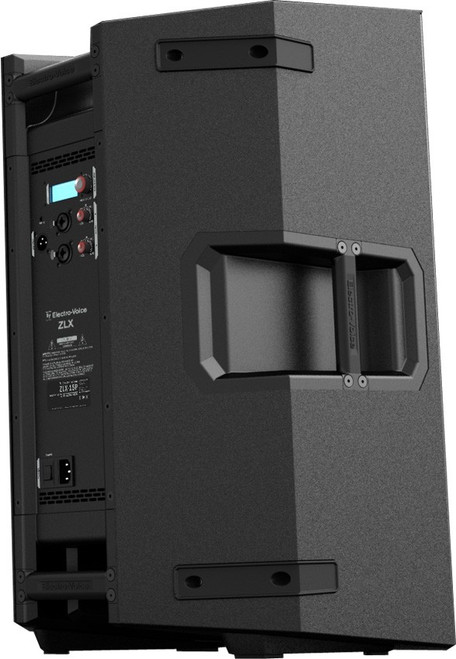

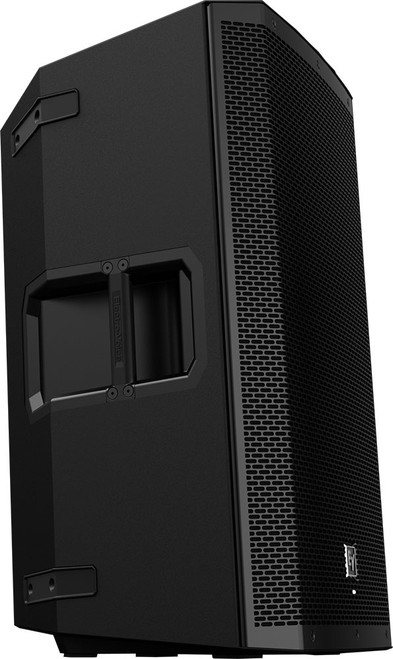

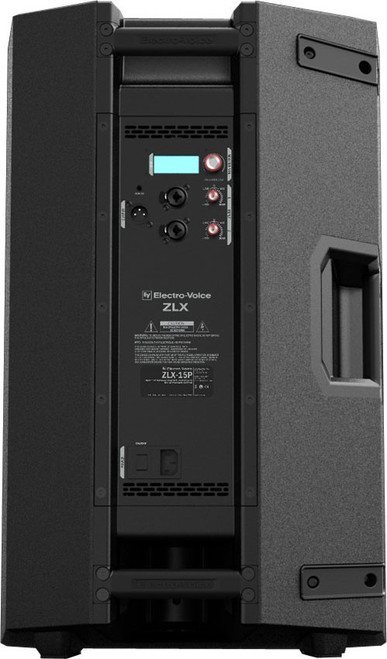

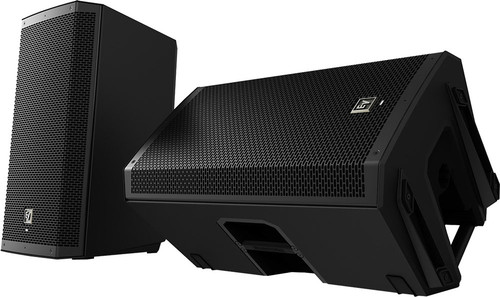

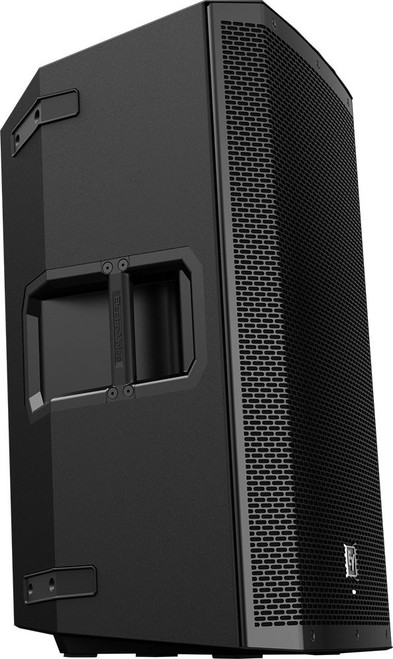

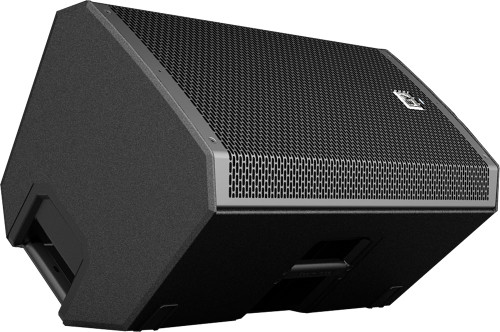

Electro-Voice ZLX-15 15" 2 Way Passive Loudspeaker (Discontinued)

Part #:
F.01U.272.256
Model #:
ZLX-15
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Electro-Voice ZLX-15 15" 2-way passive loudspeaker gives you the confidence of the industry's most trusted components engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.

Description

The ZLX-15 cuts through the competition with the most complete and innovative package of features in their class–all of which work together to make it quicker and easier than ever to take control of your sound, whatever the gig. When choosing a loudspeaker, it's always wise to ask "What's inside the box?" Then take a listen and hear the EV difference for yourself. Featuring custom drivers housed in an innovative new cabinet design, the two compact and versatile ZLX-15 make EV's renowned sound quality and rugged reliability more accessible than ever before. A compact and versatile loudspeaker featuring EV engineered drivers in a rugged enclosure. Whether pole-mounted or used as a floor monitor, ZLX-15 delivers stunning sonic impact and intelligibility the legendary "EV Sound" the pros trust.

The ZLX-15 gives you the confidence of the industry's most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer. It has a 15" woofer for extended low-frequency response and 1.5" high-frequency titanium compression driver. The frequency range is 44 Hz – 20 kHz, with 250W continuous and 1000W peak power handling, and 96 dB SPL sensitivity; 126 dB max SPL.

Extend your low-end with this portable powerhouse. Whether used on its own or with a sub, the ZLX-15P provides crisp, clean highs and tight, deep lows for larger spaces – all with enough amplifier headroom to make sure you're heard both loudly and clearly. It includes 1000W (Class D), with 127 dB max SPL and 42 Hz – 20 kHz. It has a 15" woofer and 1.5" high-frequency titanium compression driver.

Features

  • 15" woofer for low-end punch in a compact enclosure and 1.5" high-frequency titanium compression driver
  • 44 Hz – 20 kHz frequency range
  • 250W continuous and 1000W peak power handling
  • 96 dB SPL sensitivity; 126 dB max SPL

Specifications

Frequency Response 56 Hz – 18 kHz
Frequency Range 44 Hz – 20 kHz
Axial Sensitivity 96 dB
Maximum SPL 126 dB
Recommended HP Frequency 40 Hz
Coverage (Hort. x Vert.) 90° x 60°
Power Handling 250 Watts Continuous, 1000 Watts Peak
LF Transducer EVS-15L, 380 mm (15 in) Woofer
HF Transducer DH-1K
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ω
Minimum Impedance 7 Ω
Connectors Dual NL4
Enclosure Polypropylene
Grille 18 Gauge Steel with Black Powder Coat
Dimensions (H x W xD) 27" (685 mm) x 17" (423 mm) x (15" (383 mm)
Weight 36.5 lbs (16.6 kg)
