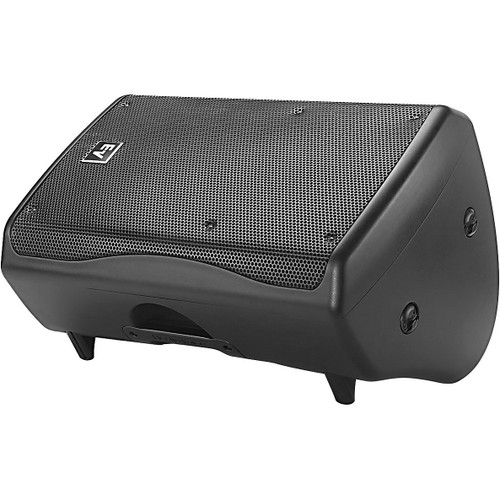

The ZX5-90B sets a new standard for performance, versatility, and durability in professional loudspeakers. This 15" 2-way passive loudspeaker delivers up to 2400W peak power, making it perfect for front-of-house mains, stage fills, or monitor use. Its 90° x 50° constant-directivity horn ensures wide, even coverage, while the rugged black polypropylene enclosure provides reliable performance indoors or outdoors.
At its core, the ZX5-90B features the high-output DVX3150A 15" low-frequency driver with forced-air cooling for exceptional efficiency and low distortion. Complementing it is the 2" ND2 titanium diaphragm compression driver with a neodymium motor, delivering crystal-clear high frequencies with reduced weight and maximum output. Together, these transducers ensure smooth, dynamic sound reproduction with impressive clarity and detail.
The ZX5-90B's high-impact polypropylene enclosure is designed for both durability and versatility, featuring dual monitor angles (45° or 55°) for stage use, ten M8 mounting inserts for suspension, and multiple anchor-plate attachment points. Whether used for portable PA, permanent installation, or stage monitoring, the ZX5-90B provides unmatched sound quality, flexibility, and reliability in a compact, lightweight design.
| Frequency Response (-3 dB) | 58 Hz - 18 kHz |
|---|---|
| Frequency Range (-10 dB) | 39 Hz - 20 kHz |
| Rec. Hipass Frequency | 36 Hz |
| Axial Sensitivity | 98 dB (1W/1m) |
| Max Calculated SPL | 132 dB |
| Horizontal Coverage | 90° |
| Vertical Coverage | 50° |
| Power Handling (Passive) | 600W Continuous, 2400W Peak |
| LF Power Handling (Biamp) | 500W Continuous, 2000W Peak |
| HF Power Handling (Biamp) | 40W Continuous, 160W Peak |
| LF Transducer | DVX3150, 15" (381 mm) Driver |
| HF Transducer | ND2, 1" (25.4 mm) exit Neodymium Compression Driver |
| Crossover Frequency | 1.5 kHz |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 6.5 Ohms |
| Connectors | (2) Neutrik Speakon NL4 |
| Enclosure Material | Polypropylene Structural Foam |
| Grille | Polyester Powder Coated, 16GA Galvanized Steel |
| Environmental Spec | IEC 529 IP24 |
| Dimensions (H x W x D) | 27.26" (692 mm) x 17.57" (446 mm) x 16.16" (411 mm) |
| Net Weight | 49 lbs (22.2 kg) |
| Shipping Weight | 57.4 lbs (26 kg) |
