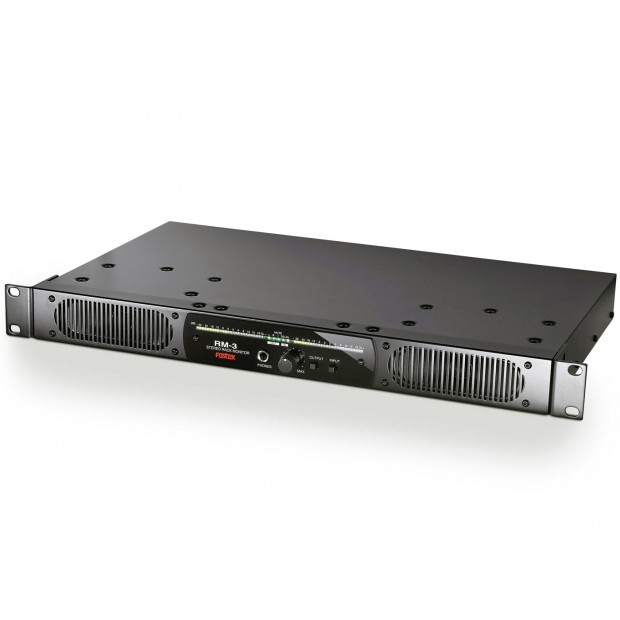

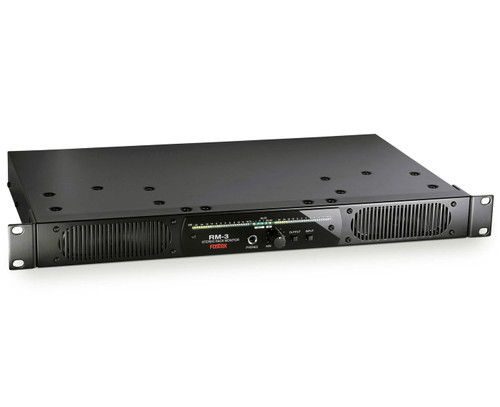

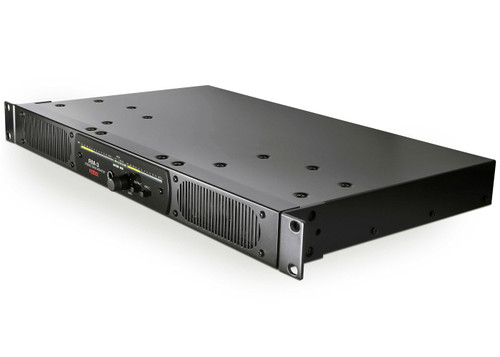

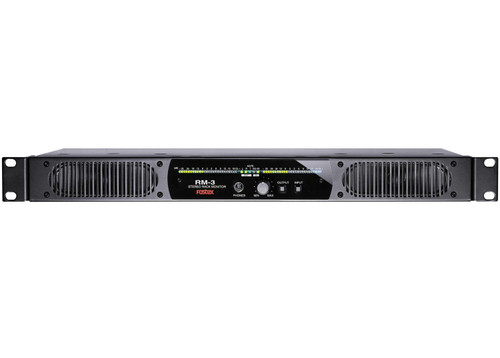

Model RM-3 is a rack stereo powered monitor speaker system to succeed the current model RM-2.
New features include a THRU OUT, brightness adjustment of LED, and auto memory of Input / Output status etc. via newly added DIP switch on the rear panel.
The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.
| Speaker Section | |
|---|---|
| Units | 4.33" (110 mm) x 1.57" (40 mm) antimagnetic cone speakers |
| Frequency Response | 200 Hz – 20 kHz |
| Amplifier Section | |
| Rated Output Power | 10W x 2 |
| Digital Input | XLR-3-31 connector (AES/EBU) |
| Sampling Frequency | 44.1kHz to 96kHz |
| Analog Inputs | XLR-3-31 connector (balanced) |
| Rated Input Level | +4/0dBu |
| Input Impedance | 10k ohm or more; 1/4” Phone jack (unbalanced) |
| Rated Input Level | -10/-14 dBV |
| Digital THRU | XLR-3-31 connector (AES/EBU) |
| Analog THRU | XLR-3-31 / 1/4” TS phone |
| Phones | 1/4” stereo phones |
| Adapted Load Impedance | 16 ohm or more |
| Maximum Output | 20mW + 20mW (32ohm, 1kHz) |
| Level Meter | 26-dot LED x 2 |
| Reference Level | Digital: -20dBFS Analog: XLR +4/9dBu; TS phone -10/-14dBV |
| Power Requirement | AC 100V to 240V 50/60Hz |
| Power Consumption | 10W (0.5W or less in standby mode) |
| Dimensions (H x W x D) | 18.98" (482 mm) x 1.73" (44 mm) x 11.18" (284 mm) |
| Weight | 7.72 lbs (3.5 kgs) |
