Four-Zone Restaurant Sound System with 4 QSC All-In-One Pendant Loudspeaker Systems and 4 Bose Outdoor Patio Loudspeakers

Inside the Design

This four-zone restaurant sound system features four QSC AD-P.HALO 6.5" 200W integrated sub/sat all-in-one pendant loudspeaker systems, each with four satellite speakers and a subwoofer built into one enclosure. Additionally, it includes four Bose DesignMax DM5SE 5.25" 60W surface mount indoor/outdoor loudspeakers for versatile audio coverage in outdoor/patio areas. This system is powered by two Pure Resonance Audio DA2240 dual-impedance 240W rack mount power amplifiers, managed through one Pure Resonance Audio MX84 4-zone 8-channel rack mount mic/line mixer, and offers easy control via four Pure Resonance Audio MX8-WP 2-input wall plates with volume control. Durable Cat5e Ethernet network patch cables and reliable non-plenum audio speaker wire ensure connectivity and performance. This comprehensive system is ideal for large open-ceiling environments such as restaurants, microbreweries, sports bars, and hotels, providing high-quality indoor and outdoor background music and paging with flexible control.

Sound System Features:

• Clear, high-quality background music and paging capabilities
• QSC AD-P.HALO pendant loudspeakers offer a sleek aesthetic design and high-quality sound
• Bose DesignMax DM5SE loudspeakers provide flexibility and style for commercial indoor or outdoor spaces
• Pure Resonance Audio MX84 mixer offers four-zone control with eight input channels
• Pure Resonance Audio DA2240 amplifiers deliver dual-impedance 240W power for reliability and performance
• Pure Resonance Audio MX8-WP wall plates with volume control for convenient sound management
• Durable Cat5e Ethernet patch cables ensure reliable connectivity

About the System Components

QSC AD-P.HALO 6.5" All-In-One Pendant Loudspeaker Systems

The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure. Designed for business music installations where music drives the atmosphere, it features a 200W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.

Bose DesignMax DM5SE 5.25" Surface Mount Indoor Outdoor Loudspeakers

DesignMax loudspeakers have the flexibility and style to deliver outstanding audio and aesthetics for any commercial space. With a selection of loudspeakers and subwoofers to choose from — including ceiling-mounted, surface-mounted, and outdoor-rated options — it’s easy to create tailored DesignMax solutions.

Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer

The Pure Resonance Audio MX84 mixer offers four-zone control with eight input channels, providing professional audio mixing for commercial applications. This rack-mountable mixer is ideal for restaurants, bars, and similar venues that require multiple audio sources and zones.

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers

The Pure Resonance Audio DA2240 amplifiers deliver reliable dual-impedance power with 240W output. These rack-mount amplifiers are built for consistent performance in commercial audio environments and offer the flexibility needed for various installations.

Pure Resonance Audio MX8-WP 2-Input Wall Plates with Volume Control

The Pure Resonance Audio MX8-WP wall plates offer convenient volume control and input management for multi-zone audio systems. With two input channels, they are ideal for commercial installations requiring user-friendly operation.

System & Component Videos

QSC AD-P.HALO 6.5" 200W Integrated SUB/SAT All-In-One Pendant Loudspeaker Systems

• Integrated 6.5" subwoofer and four 2.75" satellite transducers in a single pendant-mount enclosure
• All-in-one solution with no assembly required
• 200W RMS power rating
• Consistent tonal characteristics across the entire AcousticDesign series family for surface, ceiling, and pendant applications
• Intrinsic correction voicings available via Q-SYS Ecosystem and QSC processing amplifiers
• Rugged ABS enclosure
• Low-saturation 70 / 100V transformers with 6Ω bypass
• Transformer taps: 100W, 50W, 25W, 12.5W
• IP-54 ingress rating
• UL1480A and CE compliant
• Available in black (RAL 9011) or white (RAL 9010)
• Included suspension hardware and fasteners
• Complete EASE, CAD, and BIM information available online

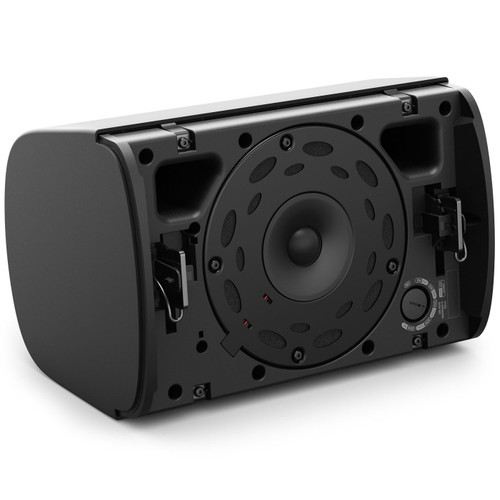

Bose DesignMax DM5SE 5.25" 60W Surface Mount Indoor Outdoor Loudspeakers

• Combine models to complete any design, big or small — 12 loudspeakers to mix and match
• Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system
• Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white
• Reduce installation time with the patented QuickHold mounting system
• Install easily — all models include Euroblock connectors
• Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use

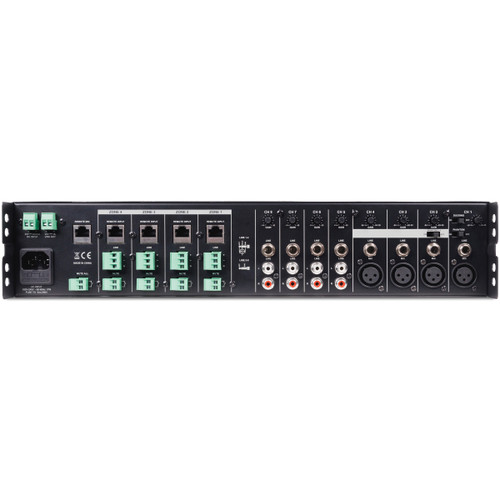

Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer

• Eight input channels with individual volume controls
• Four separate zone outputs
• Rack-mountable design for professional installations
• Phantom power for condenser microphones
• Durable metal construction for long-term reliability
• Ideal for commercial spaces, restaurants, and houses of worship



Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers

• Dual-impedance support for 4-ohm and 70V/100V systems
• 240W of power per channel
• Built-in protection circuitry for thermal and short-circuit protection
• Compact rack-mountable design
• Front panel LED indicators for signal, clip, and protection
• Designed for commercial audio applications

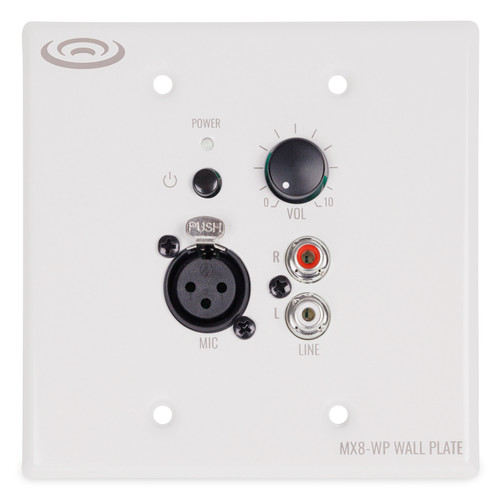

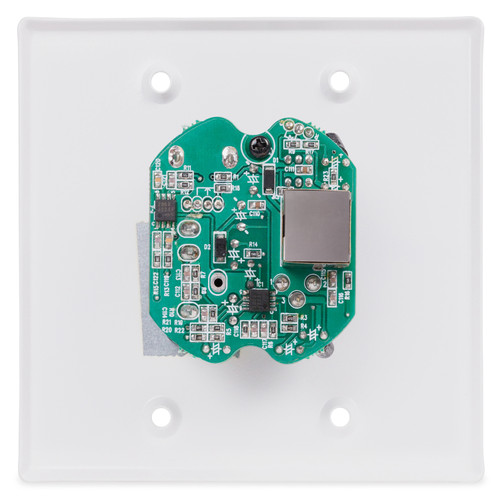

Pure Resonance Audio MX8-WP 2-Input Wall Plates with Volume Control

• Two input channels with independent volume controls
• Wall-mount design for easy access
• Durable metal construction
• Compatible with a wide range of audio systems
• Ideal for zone volume control in commercial installations



• (4) QSC AD-P.HALO 6.5" 200W Integrated SUB/SAT All-In-One Pendant Loudspeaker Systems
• (4) Bose DesignMax DM5SE 5.25" 60W Surface Mount Indoor Outdoor Loudspeakers
• (1) Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer
• (2) Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers
• (4) Pure Resonance Audio MX8-WP 2-Input Wall Plates with Volume Control
• (4) Pure Resonance Audio PREP-3-PREP Prep to Prep Patch Cables - 3ft

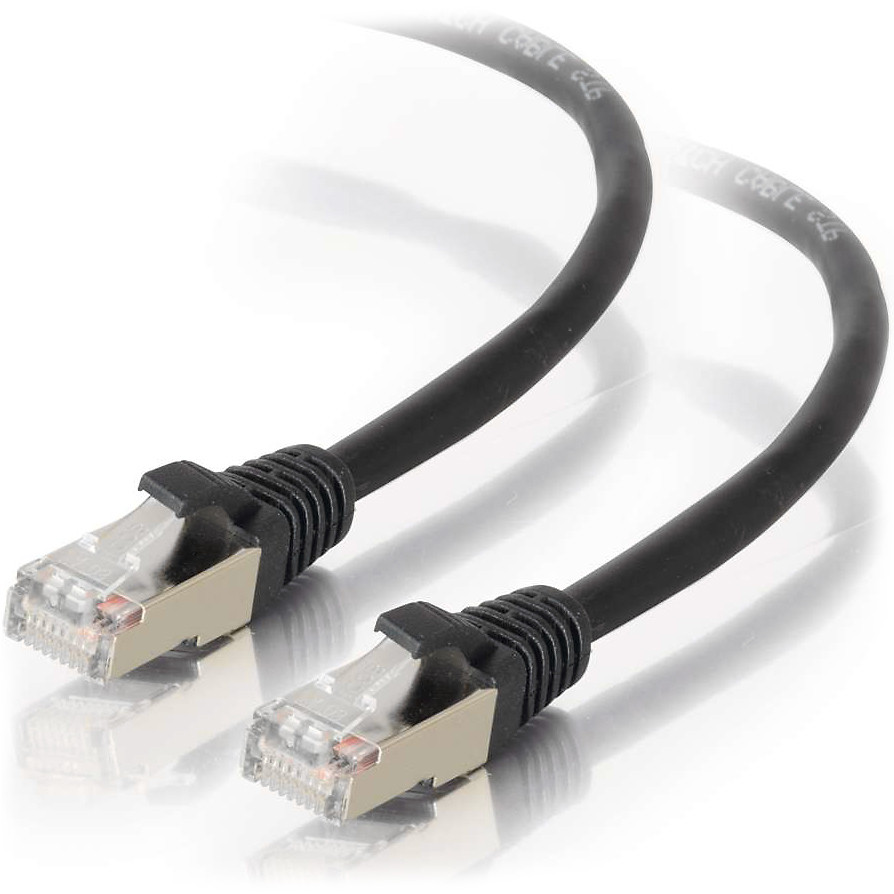

• (4) C2G 28696 Cat5e Snagless Shielded (STP) Ethernet Network Patch Cables, Black - 50ft
• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
