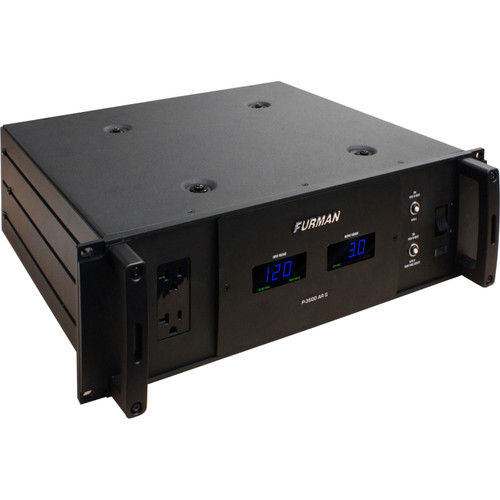

The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V.

Description

The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V.

The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when traveling to countries with 100V, 220V, 230V, or 240V services.

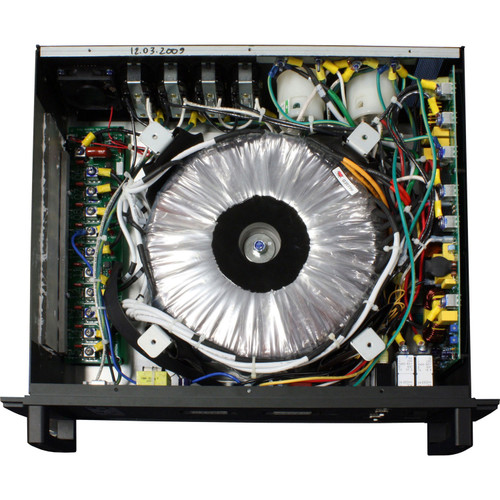

The P-3600 AR G's predecessor, the Furman AR-PRO, has been an indispensable product for many professional users. The updated model features Furman's True RMS Regulation Technology (utilizing an ultra-low-noise toroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages. The unit also offers Furman's exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration.

These features, along with the P-3600 AR G's 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step- down transformers.

Features

  • Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
  • Furman’s exclusive SMP technology provides the highest level of surge & spike protection available
  • LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity
  • Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
  • LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
  • Large LED voltmeter displays incoming line voltage
  • Large LED ammeter displays output current draw
  • 30 Amp rating featuring a high inrush magnetic circuit breaker for added protection
  • 11 total outlets (nine rear panel outlets and two front panel convenience outlet)

Specifications

Max Current 30 amps
Voltage Regulation 120 VAC (±4%)
In Regulation Range (Low) 88-133 VAC @ 50/60Hz(High) 170-265 VAC @ 50/60Hz
Spike Protection Modes Line to neutral, zero ground leakage
Spike Clamping Voltage 191V Peak @ 3,000 Amps
Response time 1 nanosecond
Maximum surge current 6,500 amps
Noise Attenuation 10 DB @ 10KHz, 40 DB @ 100 KHz, 55 DB @ 500 KHz
Receptacles (Front panel) Two 120V 20A Edison Spec Grade NEMA-20 outlets
Receptacles (Rear panel) One 120V L-5 30A female, Eight 120V 20A Edison Spec Grade NEMA-20 outlets
Line Cord L-14 male twistlock inlet (twistlock cable-mount connector included)
Dimensions (H x W x D) 5.25" (133 mm) x 19' (483 mm) x 14.25" (305 mm)
Weight 98 lbs (44.5 kg)
