Galaxy Audio AS-1800-4 Band Pack Wireless In-Ear Personal Monitor System (Discontinued)
Usually arrives in 5-9 business days.
The Galaxy Audio AS-950-4 wireless personal monitor is perfect as an affordable in-ear monitor solution for the entry-level user while providing a high-quality sound for an economical price.
Galaxy Audio AS-950-4 Wireless Personal In-Ear Monitor System with EB4 Earbuds (4 User)

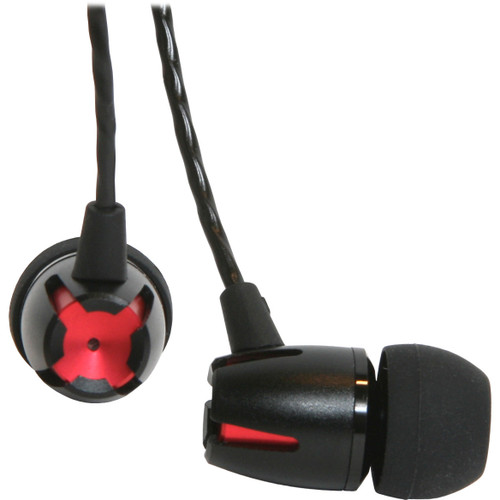

The AS-950 Wireless Personal Monitor system offers reliable quality and exceptional value. The receiver features a 50mW x 2 output with RF and stereo indicator. The transmitter features L/R level display, channel LCD display with channel up and down select, stereo XLR / 1/4" inputs and a headphone output with volume control. The Galaxy Audio AS-950 Wireless Personal Monitor system also offers 16 selectable UHF frequencies. The Galaxy Audio EB4 earbuds feature titanium drivers, extended bass response, aluminum, alloy construction and now come standard with all WPM models. This system comes in options of a Single system, Twin Pack system, and Band Pack system. The Galaxy Audio AS-950 wireless personal monitor is perfect as an affordable in-ear monitor solution for the entry-level user while providing a high-quality sound for an economical price.
The Twin Pack and Band Pack Systems make it easy for any duo or band to Get Personal. The Twin Pack system includes two receivers and one transmitter. The Band Pack system includes four receivers and one transmitter. They are designed to get the duo or whole band wireless in one package. The AS-950-2 and AS-950-4 will allow a duo or band to send one stereo mix to 2 or 4 individuals. Additional transmitters may be purchased at a later date to add mixes.
An unlimited number of receivers may be added at any time.
AS-950-4 Wireless In-Ear Monitor System:

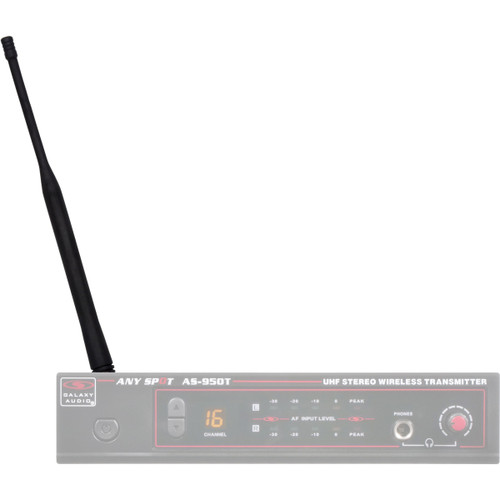

AS-950T Transmitter:

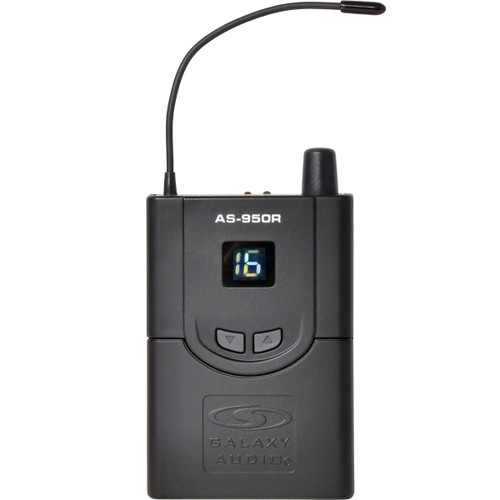

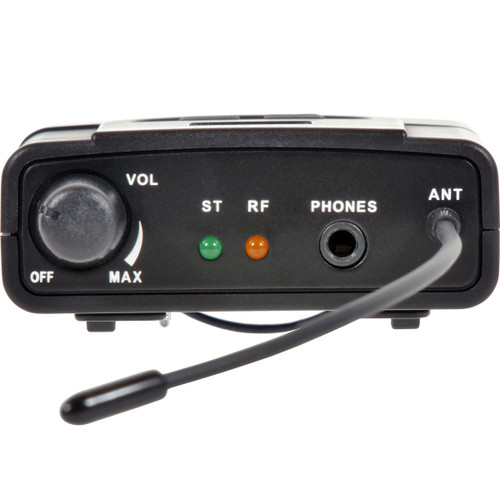

AS-950R Receiver:
| AS-950 | |
|---|---|
| Band | UHF |
| Frequencies Range | N - 518 MHz - 542 MHz P2 - 470 MHz - 489 MHz |
| Frequencies | 16 |
| Transmitter Output Level | 10 mW |
| Operating Range | Under Typical Conditions 200' (61m) Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics |
| Audio Frequency Response | +/-3dB 50Hz - 15kHz |
| Total Harmonic Distortion | < 1% @ 1kHz |
| Signal to Noise | > 80dBA |
| Maximum Deviation Range | +/-40kHz |
| Dynamic Range | > 90dB A-weighted |
| Operating Temperature | Range 14º F to 122º F (-10º C to 50º C) Note: battery characteristics may limit this range |
| AS-950T Transmitter | |
| Main Frame Size | EIA STANDARD 1/2 U |
| Modulation Mode | FM Stereo Modulation |
| RF Output | 10 mW |
| Max Audio Input Level | +6dBV |
| Gain Adjustment Range | 40dB |
| Controls | Headphone Volume, Channel Up/Down, and Power Button |
| Indicators | LCD Display, Input Level |
| Audio Input | Line Level X 2, XLR / 1/4" Combo Jack |
| XLR Input | Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio - |
| Transmitter Antenna | Detachable 1/2 Wave BNC Antenna |
| Power Requirements | 12-18 V DC at 300 mA, supplied by external power supply |
| Dimensions (H x W x D) | 1.73" (44 mm) x 8.34" (212 mm) x 3.77" (96 mm) |
| Weight | 1.23 lbs (0.56 kg) |
| AS-950R Receiver | |
| Audio Output Level | 50 mW x 2 Earphone Out with Volume Control |
| Sensitivity | -94dBm for 30dB |
| Stereo Separation | 40dB (at 1kHz) |
| Output Connector | 1/8" (3.5 mm) Stereo Earphone Connector |
| Controls | Volume, Channel Up/Down |
| Indicators | LCD Display, Stereo LED, RF LED |
| Power Requirements | (2) "AA" size alkaline or rechargeable batteries |
| Battery Life | About 12 hours (alkaline) |
| Dimensions (H x W x D) | 3.54" (90 mm) x 2.51" (64 mm) x 0.9" (23 mm) |
| Weight | 0.21 lbs (0.095 kg) |
