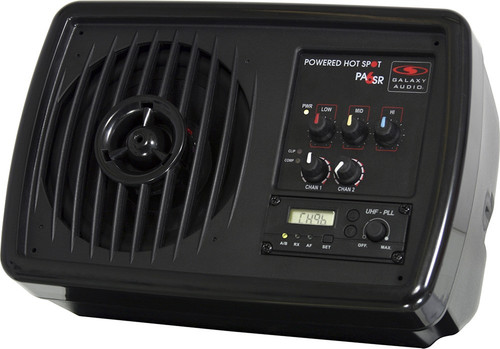

Galaxy Audio PA6SR Powered Hot Spot Personal Monitor (Discontinued)

Part #:
PA6SR
Model #:
PA6SR
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Galaxy PA6SR has all of the great features of the PA6S, plus a built in wireless receiver. This wireless option can be used in many ways.

Description

The PA6SR has all of the great features of the PA6S, plus a built in wireless receiver. The wireless option can be used in many ways:

  1. With a handheld mic or a body pack transmitter with a headset/lavalier mic. The PA6SR will receive signals from one of the optional transmitters. This is very convenient for performers, teachers, or A/V presentations.
  2. The receiver option may be used in conjunction with our AS-TXRM table top/rack mount transmitter. This allows a signal to be wirelessly transmitted to the PA6SR from a remote source.

Whether you are transmitting your church service to an overflow or cry room, a DJ needing to get sound in a remote location, transmitting your monitor mix to the stage, or using the receiver to pick up your wireless microphone signal, you will love the convenience of not having to run the extra cable to patch signals.

With over 30 years of building compact PA systems, Galaxy Audio built the PA6S/PA6SR with the user in mind. It is designed to cover a multitude of applications and provide the power to handle nearly any situation. A new amplifier, new 2 way speaker system, lighter weight, more power output, and great built in features make the PA6S the best sounding, lightest, and most powerful compact PA system on the market.

The PA6SR has a built in 170 watt amplifier designed to handle the most demanding audio situations. This high tech Class D amplifier produces plenty of power to cover a wide variety of applications. This design allows the PA6SR to function both as a stand-alone PA system and as a high-powered vocal monitor to cut through loud stage volumes. For larger gigs that require more coverage, you may simply patch from the Preamp Output to the main house PA, while using the PA6SR as your onstage monitor.

The PA6SR also features a built in 18dB Compressor/Limiter circuit with Compressor and Clip LEDs. The Compressor acts to smooth out transient peaks in the signals, thus improving overall sound quality and increasing apparent volume. The Limiter helps protect the woofer and tweeter from being damaged by amplifier distortion. The Clip LED indicates when a reduction in volume is recommended.

Features

  • 2-Way Speaker System
  • 6.5" Neodymium Woofer
  • 1.5" Titanium Dome Tweeter
  • Built-in Wireless Receiver
  • 170W Class D Amplifier
  • 3 Inputs (2-XLR/1/4" Combos, One 1/8")
  • Mounts to Any Mic Stand
  • Integrated Handle, Mounting Points for Mic Boom & Bracket
  • Built In Compressor/Limiter
  • XLR Pass Thru On Channels 1 & 2
  • Built in Compressor/Limiter prevents output distortion
  • -20dB pad switches on each XLR input allow high-level signals without distortion
  • 3 band EQ (High, Mid, Low) to adjust the sound to what you want to hear
  • Pass through on each channel acts as a built in splitter to send signals to a mixer snake or another PA6S

Specifications

Woofer One Galaxy Audio SW6.5, 6.5" Neolite Neodymium Woofer
Tweeter One ST1.5 ferro fluid cooled 1.5" Neolite Neodymium Titanium Dome Tweeter
Nominal Impedance 4Ω
Power Handling Capacity 170W
Enclosure Materials Fire retardant styrene
Color Black
Equalization Three band center detent
Sensitivity (1W @ 1 Meter) 98 dB (1 kHz octave band)
Frequency Response 80 Hz–18 kHz
Maximum SPL @ clip 118 dB
Total Harmonic Distortion
Input Connections Two 1/4" Balanced/Unbalanced Two XLR 24V Phantom PWR One 1/8" Stereo Line In
Output Connections Two XLR Thru Outputs One 1/4" Preamp Output
Indicator LEDs Power, Clip & Compressor
Power Requirements, Domestic 120 VAC 60Hz
Export 230VAC 50Hz
Safeguards Short circuit current limiting. Short circuit foldback limiting. Thermal short circuit protection
Oscillation Type PLL synthesized control OSC
Adjustable Frequency Pre-programmed max. 96 switchable channels
Dynamic Range 110 dB
T. H. D. Less than 0.5%
Squelch Tone key and noise lock dual-squelch
Frequency Response 70 Hz ~ 16 kHz (wireless)
Operating Range 160 - 230 ft (50 ~ 70 M) (open field) with built-in antenna
Antenna Mode Diversity
Sensitivity 4µV @ 30 dB
Display Status LCD indicator displays channel or frequency
Channel Select Set, Up, Down keys
Carrier Frequency Range 640 ~ 664 MHz
Dimensions (H x W x D) 7.75" (197 mm) x 11.75" (298 mm) x 6.75" (171 mm)
Net Weight 6.4 lbs (2.9 kg)
