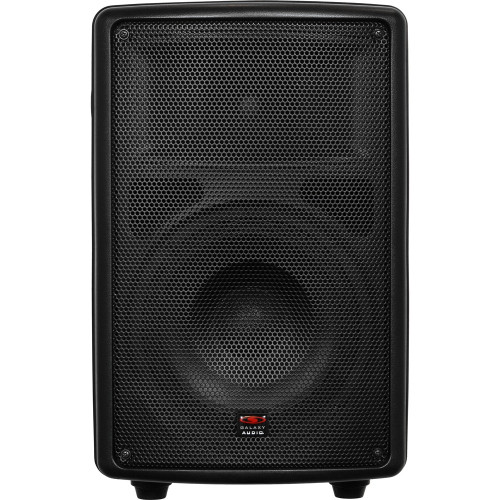

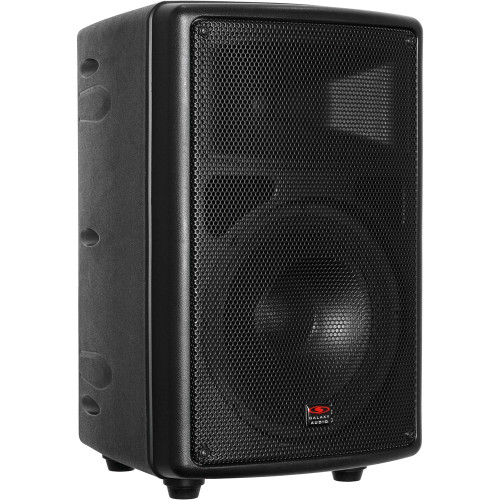

Galaxy Audio TQ8-24HSN Traveler Quest 8 150W 8 inch Portable PA Sound System with Dual Mic Receivers, Handheld Mic, Headset Mic and Body Pack

Home /
Galaxy Audio TQ8-24HSN Traveler Quest 8 150W 8" Portable PA Sound System with Dual Mic Receivers, Handheld Mic, Headset Mic and Body Pack (Discontinued)

Description

Details

Galaxy Audio TQ8 Traveler Quest 8 150W 8" Battery Powered Bluetooth PA Sound System
with Dual Mic Receivers, Handheld Mic, Headset Mic, Body Pack and MP3 Remote for Portable Applications

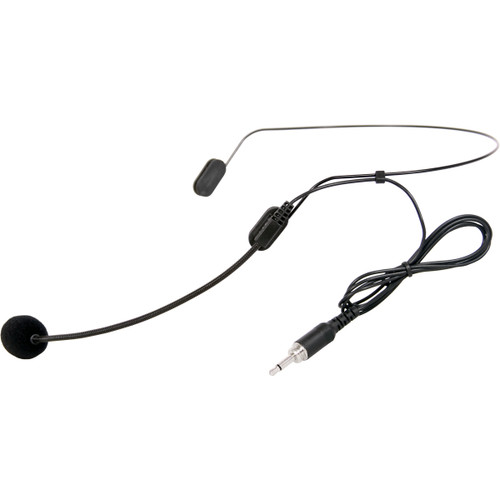

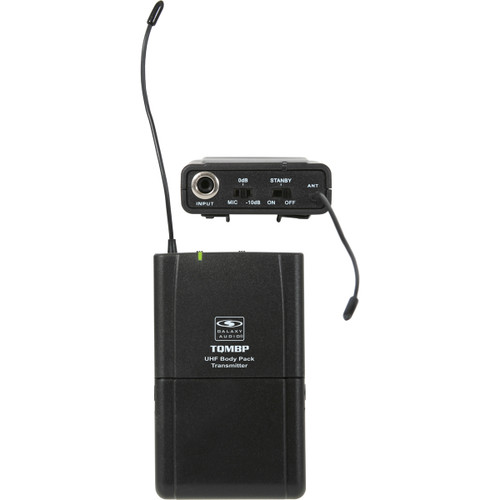

The Galaxy Audio TQ8 is a Traveler Quest Series portable and lightweight PA system that runs on AC or battery power and comes standard with a built-in battery and charger. This configuration includes the TQ8 PA speaker with a dual mic receivers, TQHH dynamic handheld mic, HS13-UBK headset mic, TQMBP body pack, MP3 remote, and power supply.

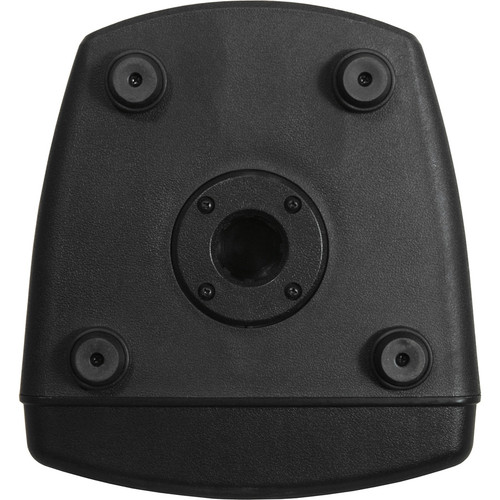

Features of the TQ8 include a built-in 150 watt amplifier with an 8" woofer, 1" horn, two XLR / 1/4" combo inputs each with their own volume control, one RCA input and one AUX 1/8" input with shared volume control, 3-band EQ with master volume control, and built-in media player with Bluetooth. The built-in media player enables playing audio from an SD card, USB drive, or from a Bluetooth® enabled device. Features also include an integrated handle for easy transportation which comes equipped with a 1-3/8" (35 mm) speaker pole socket for mounting.

The TQ8 will operate on AC power indefinitely, as well as battery power for about 24 hours depending on the usage†. A full recharge of the batteries takes about 7-8 hours. The TQ8 may be operated while batteries are recharging. If a power failure occurs when operating on AC, audio will not be interrupted and the unit will continue to operate until batteries are exhausted.

The TQ8 features a voice priority button, which automatically reduces the volume of the media player, Bluetooth® and line level input when it receives a transmission from a wireless or wired handheld microphone (either plugged into the unit or an installed wireless system). The voice priority can be turned on or off.

Whether being used for schools, houses of worship, emergency personnel, corporate functions, fairgrounds, auctioneers, graveside funeral services, or aerobics instruction, the TQ8 is an "all-in-one" portable PA that offers superior audio quality and reliable performance, all at an affordable price.

Features

Features

150W amplifier
Battery or AC powered
Rechargeable batteries
2 XLR/Line inputs
Built-in Bluetooth®
Built-in MP3 player
Built-in handle
Pole-mountable
Runs 24+ hours

Specification

Output/Peak	150W
Max SPL	105 dB
Frequency Response	70Hz ~ 18kHz ±3 dB
Battery	12V, 2.8Ah * 2 (lead-acid) rechargeable batteries
Battery Operation	24+ hours (battery operation time dependent on program)
Battery Charging	7 ~ 8 Hours
Speaker	8" LF woofer 1" Horn
S/N Ratio	>70dB
Sensitivity	Input Dependent
Audio Input	Two XLR/1/4" combo Mic/Line in RCA -1/8" stereo-aux input Bluetooth SD input USB input
EQ	Low, Mid, High
Indicators	Charging meter LED, signal/limiter, mic on
Power Requirements	32 VDC 2A (Universal 100-240VAC 50/60Hz power supply included)
Antenna	Built-in antenna

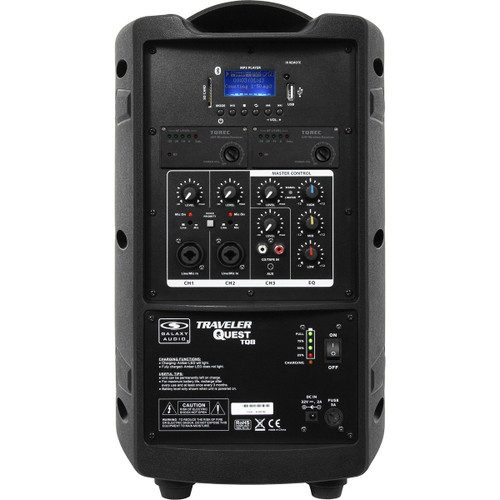

Master Controls	Master Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, Voice Priority
MP3 Player Controls	Mode, Play/Pause, Stop, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down
Bluetooth Operating Distance	Tested up to 100ft (30 m) (under optimum conditions)
Operating Distance	Tested up to 200ft (60 m) (under optimum conditions)

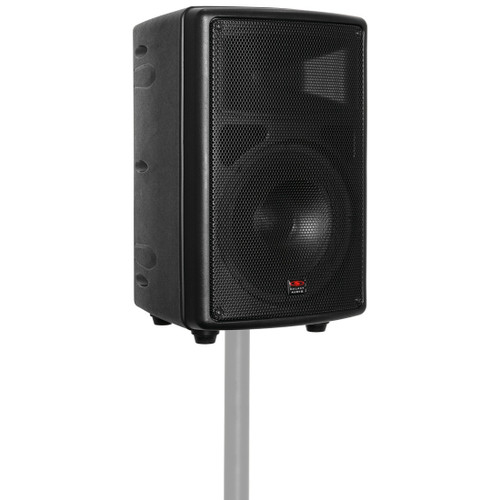

Mount Type	Pole mountable - 1 3/8" (35 mm) speaker stand
Dimensions (H x W x D)	17.25" (438 mm) x 11.5" (292 mm) x 10.5" (267 mm)
Weight (PA System with Batteries)	18.85 lbs (8.55 kg)
