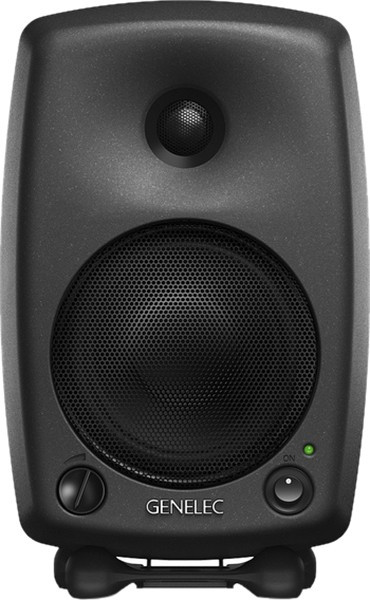

The Genelec 8030B is a very compact bi-amplified active monitor system with performance comparable to much larger systems. The 8030B excels in applications where space is at a premium, taking full advantage of the unconventional design and advanced technologies of Genelec’s 8000 Series loudspeaker range. The all-aluminium Minimum Diffraction Enclosure™ (MDE™) and advanced Directivity Control Waveguide™ (DCW™) technologies are carefully matched with advanced amplifier and electronics circuitry and the latest drivers. Bass response has been widened down to 55 Hz (-3 dB) while distortion is substantially lower due to a uniquely new rear reflex port design. The system's excellent directivity characteristics and accurate imaging together with its compact size and flexible mounting options make the 8030B the perfect monitoring tool for a wide range of applications.
The 8030B has been specially designed to have a sufficient LF extension for most situations. However if greater SPL's and a lower cutoff frequency are required, it can be complemented with Genelec subwoofers.
| Lower Cut-Off Frequency, -3 dB | < 55 Hz |
|---|---|
| Upper Cut-Off Frequency, -3 dB | > 21 kHz |
| Free Field Frequency Response | 58 Hz – 20 kHz (± 2.0 dB) |
| Maximum Peak Acoustic Output Per Pair | > 108 dB |
| Self Generated Noise Level | < 10 dB (A-weighted) |
| Harmonic Distortion at 85 dB SPL | 50...100 Hz < 2 % > 100 Hz < 0.5 % |
| Drivers | Bass: 5” (130 mm) cone Treble: 0.75” (19 mm) metal dome Both drivers are magnetically shielded |
| Dimensions (H x W x D) | 11.25” (285 mm) x 7.44” (189 mm) x 7” (178 mm) |
| Weight | 12.3 lbs (5.6 kg) |
