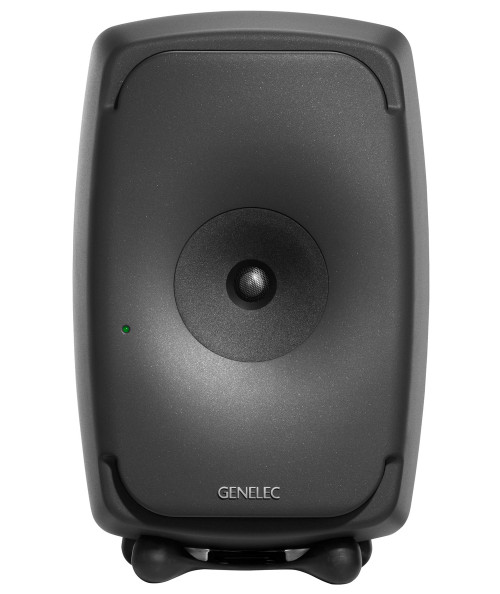

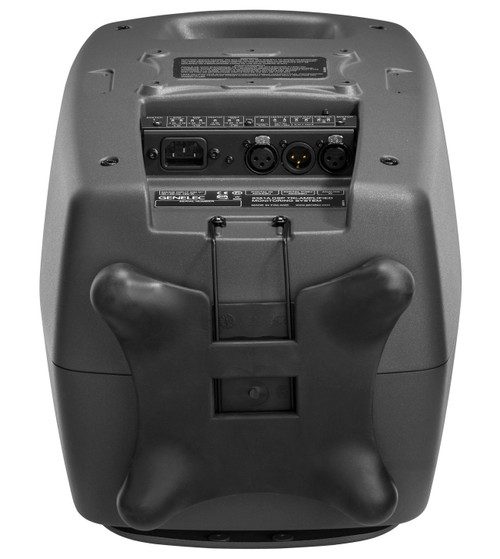

Genelec 8351A SAM Studio Monitor (Discontinued)

Part # 8351A
Model # 8351A

The unconventional and delightfully compact Genelec 8351A SAM™ studio monitor is a revolutionary achievement in three-way monitor design.

Description

Details

The 8351A combines our breakthrough Acoustically Concealed Woofers (ACW™) technology together with our Minimum Diffraction Coaxial (MDC™) driver and Maximised Directivity Control Waveguide (MaxDCW™) to produce controlled directivity over a very wide bandwidth. Genelec Loudspeaker Manager (GLM™ 2.0) computer control allows for repeatable, consistent performance over flexible proprietary network. Genelec AutoCal™ measures and automatically align every monitor on the network for level, timing, and equalisation of room response anomalies.

Providing identical performance in both vertical and horizontal orientation, the 8351A delivers outstanding monitoring accuracy for music studios, post-production houses, edit suites, radio, TV and outside broadcast applications.

Features

Features

  • Space effcient size and design allow for astounding acoustical performance in various user environments
  • Acoustically Concealed Woofers (ACW™) technology represents a new breakthrough in electroacoustic design
  • Maximised Directivity Control Waveguide (MaxDCW™) produces controlled directivity over a very wide bandwidth
  • Dual woofer design extends directivity control also to bass frequencies
  • Equally perfect performance in both vertical and horizontal orientations
  • Elegant and minimalistic industrial design combining function and aesthetics
  • Genelec Loudspeaker Manager (GLM™) computer control allows for repeatable, consistent performance over fexible proprietary network
  • Genelec AutoCal™ measures the response in the listening area and applies relevant compensation to minimize the room’s acoustical infuences
  • Genelec quality and reliability ensures long term investments and outstanding audio quality
Specification
BassDual 8.5 x 4"
Midrange5" (120 mm) Coax
TrebleAl-cone 0.75" (19 mm) Coax Al-dome
Free Field Frequency Response of System32 Hz - 35 kHz (- 6 dB)
Accuracy of Frequency Response38 Hz - 20 kHz (± 1.5 dB)
Crossover Frequency470 Hz, 2.6 kHz
Self Generated Noise Level≤ 5 dB
Input SignalAnalog: 1 XLR female (10 kOhm input load impedance)
AES/EBU (single wire and dual wire): 1 XLR female (conforms to IEC 60958-4)
Output / Thru SignalAES/EBU (single wire and dual wire): 1 XLR male (conforms to IEC 60958-4)
Digital AudioWord Length: 16 - 24 bits
Sample Rate: 32 - 192 kHz
Analog Input Level for 100 dB SPL at 1 m6 dBu
Maximum Analog Input Signal+21 dBu
Control NetworkType: proprietary GLMTM network
Connection: 2 RJ45, CAT5 cables
System CalibrationAutoCalTM, GLMTM manual, Stand-alone
Bass Amplifier Output Power
Midrange Amplifier Output Power
Treble Amplifier Output Power
150W
120W
90W
Power ConsumptionIdle: 20W
Full Output: 290W
Dimensions (H x W x D)17.06" (433 mm) x 11.25" (286 mm) x 10.94" (278 mm)
Weight42 lbs (19 kg)
