Genelec M040 Active 2 Way Monitor

Home /

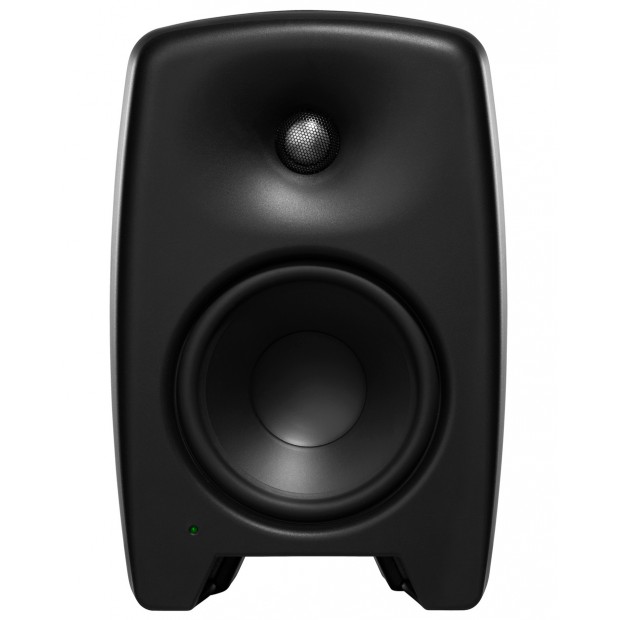

Genelec M040 Active 2 Way Monitor (Discontinued)

Description

Details

The M040 features our advanced Directivity Control Waveguide (DCW™) and Laminar Integrated Port (LIP™) built into our environmentally friendly Natural Composite Enclosure (NCE™). Designed by acclaimed industrial designer Harri Koskinen, the M040 is built to be truthful to the source and to ensure enduring listening performance. Every single M040 is carefully handcrafted, tested and calibrated in our factory in Finland with unmatched attention to details. Its low distortion, high output Class D amplifiers power a 6.5 inch woofer and a 1 inch tweeter housed in a large DCW and its room response controls are easy-to-use, enabling adjustment to any acoustic environment.

Features

Features

5" Woofer, 3/4" Tweeter
50W Bass Amplifier, 30W Treble Amplifier
Environmentally Friendly Enclosure
Auto Switching to Standby Saves Power
Class D Amplifiers are Power Efficient
Low Turbulence Bass Reflex Port

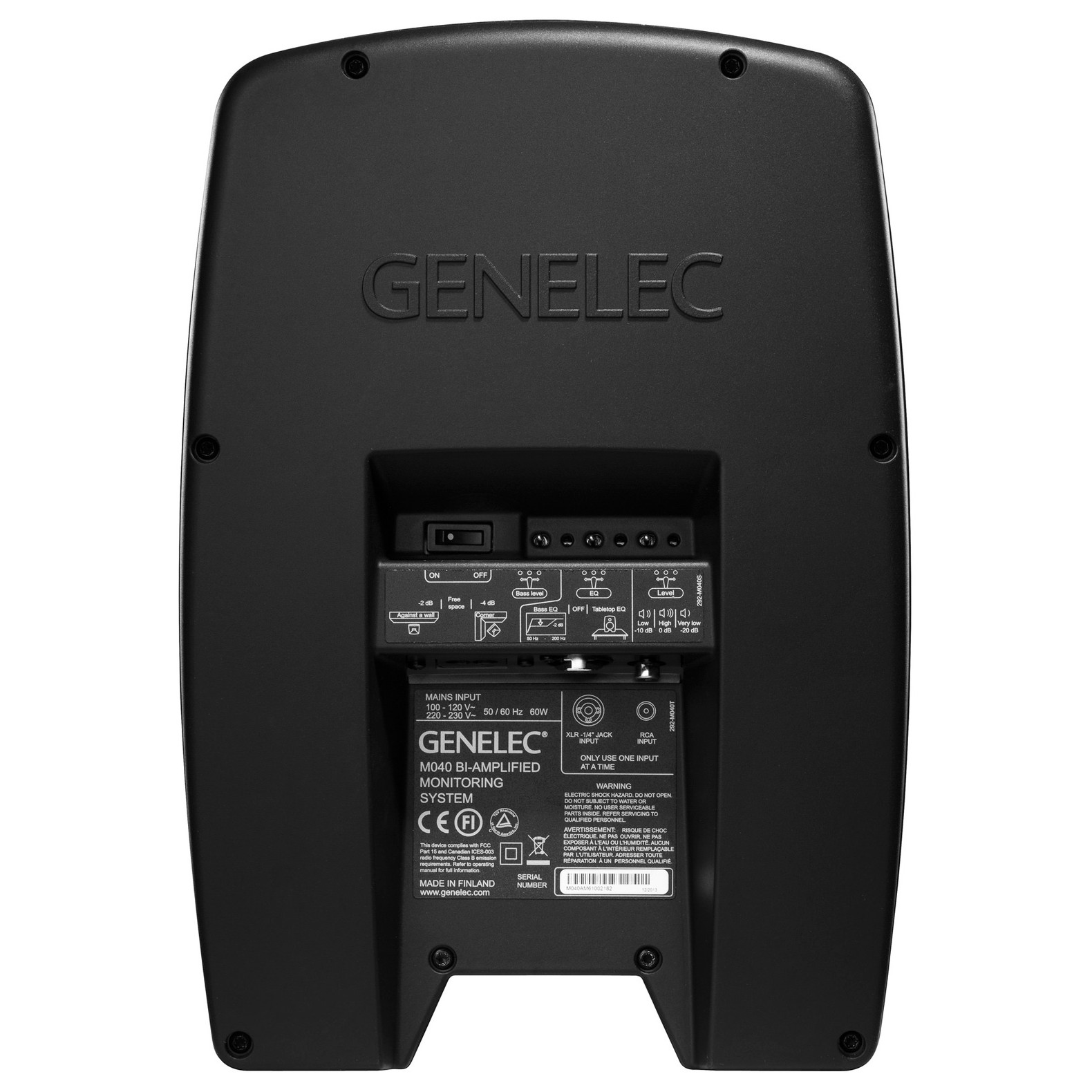

Room Response Controls
Advanced Directivity Control Waveguide

Specification

Maximum Sound Output	107 dB SPL
Frequency Range (-3 dB)	48 Hz – 20 kHz
Crossover Frequency	2.5 kHz
Bass Driver (Magnetically Shielded) Treble Driver (Magnetically Shielded)	6.5" (165 mm) 1" (25 mm)
Amplifier Short Term Power (Bass + Treble)	80W + 50W
Signal Input Connectors	Balanced XLR / 1/4” TRS phone jack combination; Unbalanced RCA
Input Impedance	10 kΩ
Power Consumption	Standby / Idle / Full Output <0.5W /10W / 60W
Dimension (H x W x D)	13.25" (337 mm) x 9.25" (235 mm) x 9" (229 mm)
Weight	15.4 lbs (7.4 kg)
