Group Fitness Sound System with 4 AtlasIED Powered Loudspeakers, Samson Wireless Fitness Headset and Media Player with Bluetooth (Discontinued Components)

By AtlasIED

Group Fitness Sound System with 4 AtlasIED Powered Loudspeakers, Samson Wireless Fitness Headset and Media Player with Bluetooth (Discontinued Components)

Name: Group Fitness Sound System with 4 AtlasIED Powered Loudspeakers, Samson Wireless Fitness Headset and Media Player with Bluetooth (Discontinued Components)
Brand: AtlasIED
SKU: FTSS-4SMA12RM69AHX
Price: 3963.89 USD
Availability: OutOfStock

Write a Review

Part #:

FTSS-4SMA12RM69AHX

Model #:

FTSS-4SMA12RM69AHX

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This installed fitness sound system features a wireless sweatproof fitness headworn microphone, a multi-media player with Bluetooth, CD player, SD, USB and AM/FM tuner with four powered wall mount loudspeakers for exercise establishments up to 6000 sq ft. Perfect for group fitness classes such as strength training, spin cycling, dance and cardio classes. Quickly connect with the 3.5 mm jack or stream wirelessly from any Bluetooth device.

Description

Inside the Design

Sound System Features:

High-performance 12" powered loudspeakers for a variety of applications
Durable speakers with versatile wall or pole mounting
Wireless water-resistant microphone and double ear headset ideal for fitness instructors and other high-energy performers
TASCAM CD-400U is a professional, versatile, and reliable media player offers the latest audio content playback options
Portable rack allows you to transport your system or safely and easily store it away

Group Fitness Sound System

About the System Components

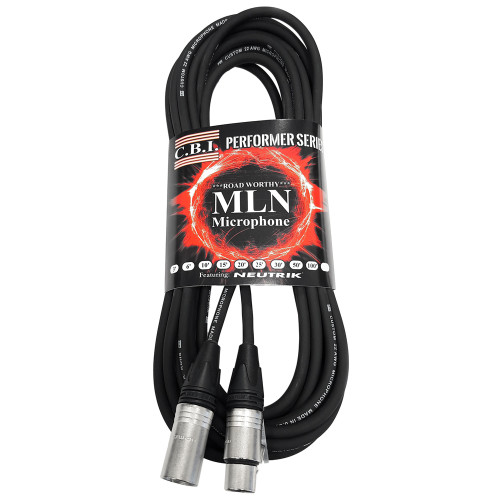

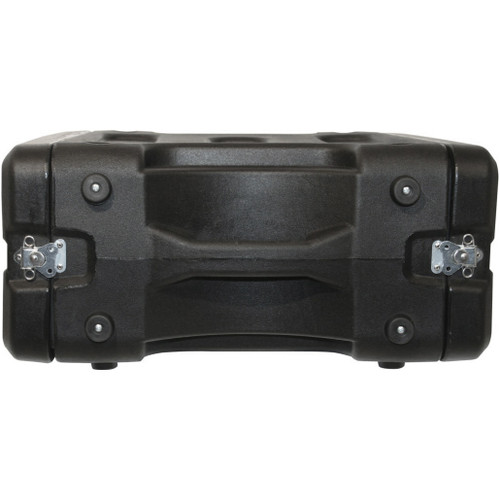

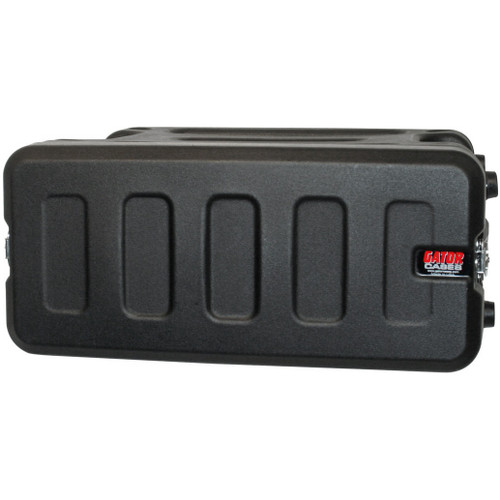

This Pro Acoustics designed fitness sound system includes four Atlas Sound SMA-12 12" 2-way powered speakers, a Samson AHX fitness headset micro transmitter UHF wireless system, a Rolls RM69 MixMate 3 mic/source mixer, a Tascam CD-400U CD and media player with integrated AM/FM receiver and Bluetooth, an Atlas Sound AP-S15A 15A power conditioner and distribution unit, a Gator G-PRO-4U-19 4U 19" deep molded audio rack, four Atlas Sound SMA15CBRKT surface mount u-brackets and four 50' XLR speaker cables.

Not sure if this is the right Fitness Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

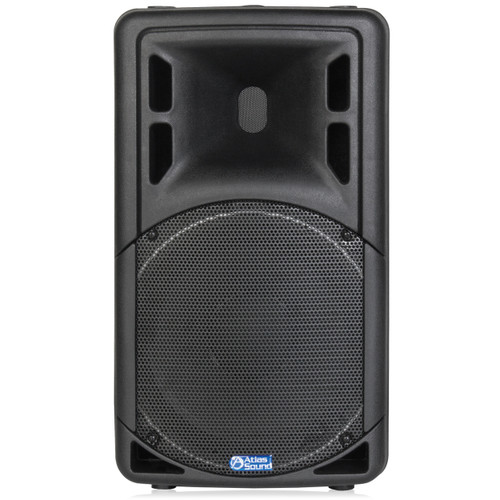

Atlas Sound SMA-12 12" 2 Way Powered Speakers:

High Performance, High Frequency Compression Driver
Durable Injection Molded Polypropylene Enclosure
Die-Cast Frame Low Frequency Driver
Separate Line In: Gain, Low Band and High Band Controls
Separate Mic: Gain, Low Band, Mid Band, and High Band Controls
Dual RCA Line Input
XLR Line Out
XLR Line Input
XLR Mic Input
Speak-ON Amplifier Output
Easy Grip Handles on Both Sides
Includes Integral 1.38" Pole Socket for Use with Atlas SS500E

Samson AHX Fitness Headset Micro Transmitter UHF Wireless System:

Frequency-agile UHF wireless system
80 operating channels across 24MHz bandwidth
Up to eight simultaneous systems per frequency band (region dependent)
AC adapter and rackmount kit included
Multifunctional backlit LCD (RF, audio, transmitter battery levels)
Group scan for easy single or multi-system setup
IR sync wirelessly matches receiver and transmitter frequency
True RF Diversity design minimizes dropouts
Tone key prevents unwanted noise when transmitter is off/out of range
Removable 1/4-wave antennas
Balanced XLR and 1/4" outputs
Qe condenser microphone capsule with bidirectional pickup pattern
Water-resistant mic design for high-energy instructors/performers
Double ear headset and windscreen included
Up to eight hours of battery life using built-in rechargeable lithium-ion battery
Sealed gold contact charging connector for included USB-style charger
Low battery LED indicator
300' operating range (line-of-sight)
Variable Gain control
1-touch Mute

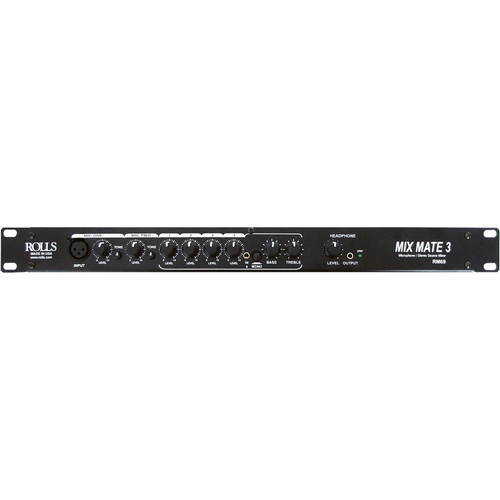

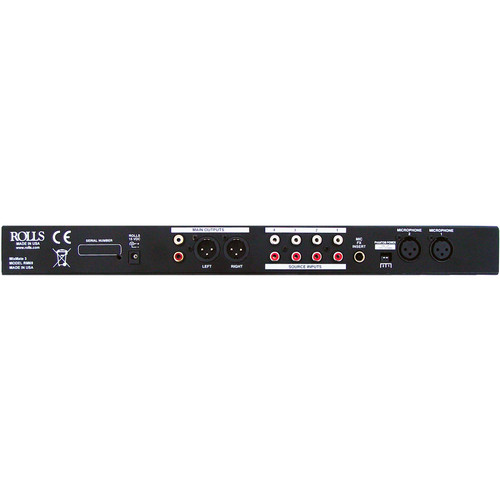

Rolls RM69 MixMate 3 Mic/Source Mixer:

Two XLR Microphone Inputs (including a paralleled front panel input)
Individually switchable phantom power
Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5 mm
1/4" TRS Mic Insert jack
Stereo RCA and XLR Outputs
Headphone output on front panel with volume control

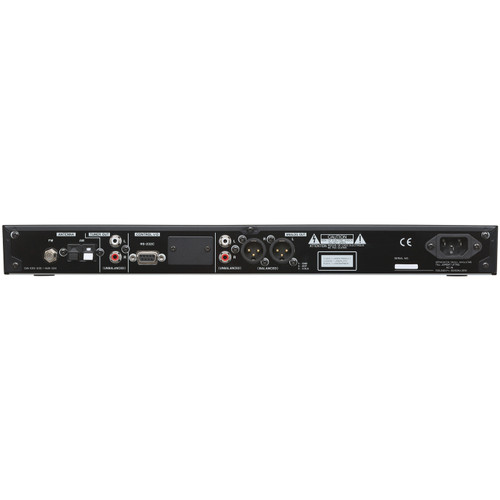

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

CD/SD/USB/and FM/AM tuner realtime audio playback
Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
Outputs: XLR, RCA X 2, and headphone
1/8" audio input for playback from any external source
"Power on Play" function starts audio playback automatically when powered on
"Panel Lock" function disables buttons to avoid unauthorized operation or programming
Real time recording from CD or FM/AM tuner to SD or USB media
External control via RS-232C
Control via ethernet with optional IF-E100 ethernet card is planned in the future

Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit:

9 Total Outlets
8 Rear Panel Outlets: 7 Switched and 1 Unswitched
1 Front Panel Outlet, Unswitched
Radio Frequency and Electromagnetic Interference Filtering
Circuit Breaker Protection @ 15A
Spike Suppression Up to 6000V
Removable 12' IEC Cord
