Gym Sound System with 4 Bose Professional ArenaMatch Speakers 400 Watt 126 dB SPL with 10-Channel Wireless Bluetooth Mixer (Discontinued Components)

Inside the Design

This powerful high-performance gymnasium sound system provides high-quality sound reproduction with a high-SPL up to 126 dB for foreground music and clear intelligible vocals for play-by-plays, announcements and paging. This gym sound system comes with four Bose ArenaMatch IP55 weather-rated speakers with wide, even coverage, a Bluetooth mixer, a wireless handheld and lapel microphone with an operating range of 300' and a wired handheld microphone for the announcers' table. Gone are the days of incomprehensible audio systems, you'll truly be impressed with this incredible sounding high-performance sound system.

Sound System Features:

• Superb intelligible speech for play-by-play and announcements
• Handheld and lavalier wireless mics with 300' operating range
• Incredible foreground music reproduction with high SPL of 126 dB
• Durable IP55 weather-rated Bose loudspeakers with wide coverage
• Bluetooth mixer to play music from any Bluetooth enabled device
• Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand
• Comes with stainless-steel U-brackets to easily mount the ArenaMatch speakers

About the System Components

This high-quality gymnasium sound system includes four high-powered IP55 rated Bose ArenaMatch Utility AMU208 loudspeakers, each with wide 90° x 60° coverage that's sure to impress. Also included is a Bose PowerShare PS602P adaptable 600W power amplifier, a 10-channel Bluetooth mixer, an Audio-Technica wireless handheld and lavalier microphone system with a range of 300' and our UC1S Ultra-Clear™ dynamic vocal microphone with a super heavy-duty housing and ultra-quiet On/Off switch for play-by-plays and announcements from the announcers or judges table, a mic stand and a 20ft microphone cable. Other accessories include U-brackets for the ArenaMatch speakers, a two-bay charger for the wireless mics, a 9U locking rack drawer to store your mics, patch cables and 500ft of Aquaseal speaker wire to complete your sound system.

Not sure if this is the right Gym Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Bose ArenaMatch Utility AMU208 Dual 8" IP55 Rated Outdoor Loudspeakers with 90° x 60° Coverage:

• Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
• Deploy to provide high-level foreground music in any indoor outdoor venue
• Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
• Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
• Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
• Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
• Provide wide, even coverage with 90° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
• Perform in the most demanding applications with 70 Hz – 16 kHz frequency response and 126 dB maximum peak SPL
• Support lowest vocal range with 2x Bose LF8 8-inch woofers featuring a 2-inch extended-excursion voice coil, which extends response to 70 Hz

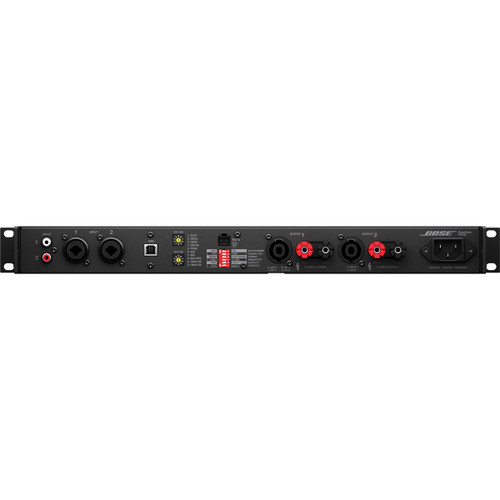

Bose PowerShare PS602P Adaptable Power Amplifier 2 x 300 Watts 4-8Ω 70/100V:

• PowerShare Technology - Patented PowerShare technology allows the total 600 watts of power to be shared asymmetrically across all outputs, as each output is capable of delivering full power. Instead of selecting amplifier power based on the needs of the largest zone, installers now have the freedom to use total amplifier power in the application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.
• Load-Independent Outputs - Each channel can be configured for low-impedance (4-8 Ω) or high-impedance (70/100V) applications without bridging, use of jumpers, or software settings.
•  DFL™ System - The Dual Feedback Loop system, inherited from the field-proven Bose PowerMatch® amplifier line, improves performance and reliability through continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion, while protecting loudspeakers.
•  Integrated Loudspeaker Processing with Optional PowerShare Editor Configuration - For applications requiring additional signal processing the PowerShare Editor Software offers real-time selection and control of Bose loudspeaker EQs, 9-band PEQs, mixing, crossover, limiters, delay, and mute/output polarity through a USB connection. For basic setups without a PC, rear-panel settings allow installers to recall Bose loudspeaker equalization and protection per output channel. These features eliminate the need for an external signal processor in many applications.
•  Auto-Standby - Designed to save power consumption when not in use. PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns.



Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer:

• Convenient front panel jacks add versatility
• Space-saving 3U rackmount design is perfect for venues and mobile rigs
• Bluetooth streaming with simple single-button pairing
• Articulating Bluetooth antenna for optimum reception
• 4 high-gain mic/line preamps with inserts
• 2-band high and low shelving EQ on every channel
• Pre-fader and post-fader aux sends; stereo aux return

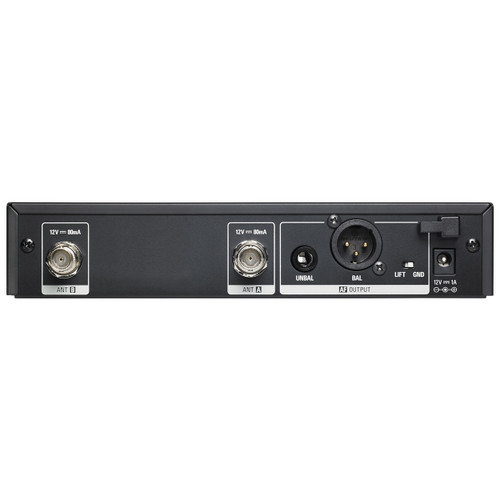

Audio-Technica 3000 Series True Diversity UHF Wireless Microphone System:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• Rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with the ATW-CHG3 smart charging dock to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks



ART PS8-II Professional Power Sequencer:

• Adjustable sequence delay range from 0.5 to 2.0 seconds per output
• Eight individually sequenced outputs with front panel LED indicators for each
• Rear mount remote control terminal block for remote sequence control
• Front panel unswitched and unregulated output
• 1800 watt total power capacity
• Front panel master breaker and power switch
• EMI and RFI filtering
• Surge and spike protection



Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch:

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events

• (4) Bose ArenaMatch Utility AMU208 Dual 8" IP55 Rated Outdoor Loudspeakers with 90° x 60° Coverage
• (1) Bose PowerShare PS602P Adaptable Power Amplifier
• (1) Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer
• (1) Audio-Technica ATW-3212/C510 True Diversity UHF Handheld Wireless System
• (1) Audio-Technica ATW-3211/831 True Diversity UHF Lavalier Wireless System
• (1) ART PS8-II Professional Power Sequencer
• (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch
• (1) Atlas Sound DS7E Adjustable Height Desktop Mic Stand
• (1) Audio-Technica ATW-CHG3 Two-Bay Recharging Station for 3000 Series Handheld and Body-Pack Transmitters
• (1) Gator GRW2009509 9U 21" Deep Sectional Wall Rack with Glass Door

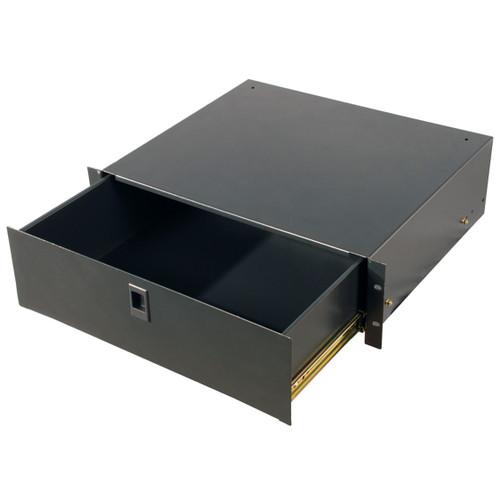

• (1) Gator GRW-DRW3 Rackworks Rack Drawer

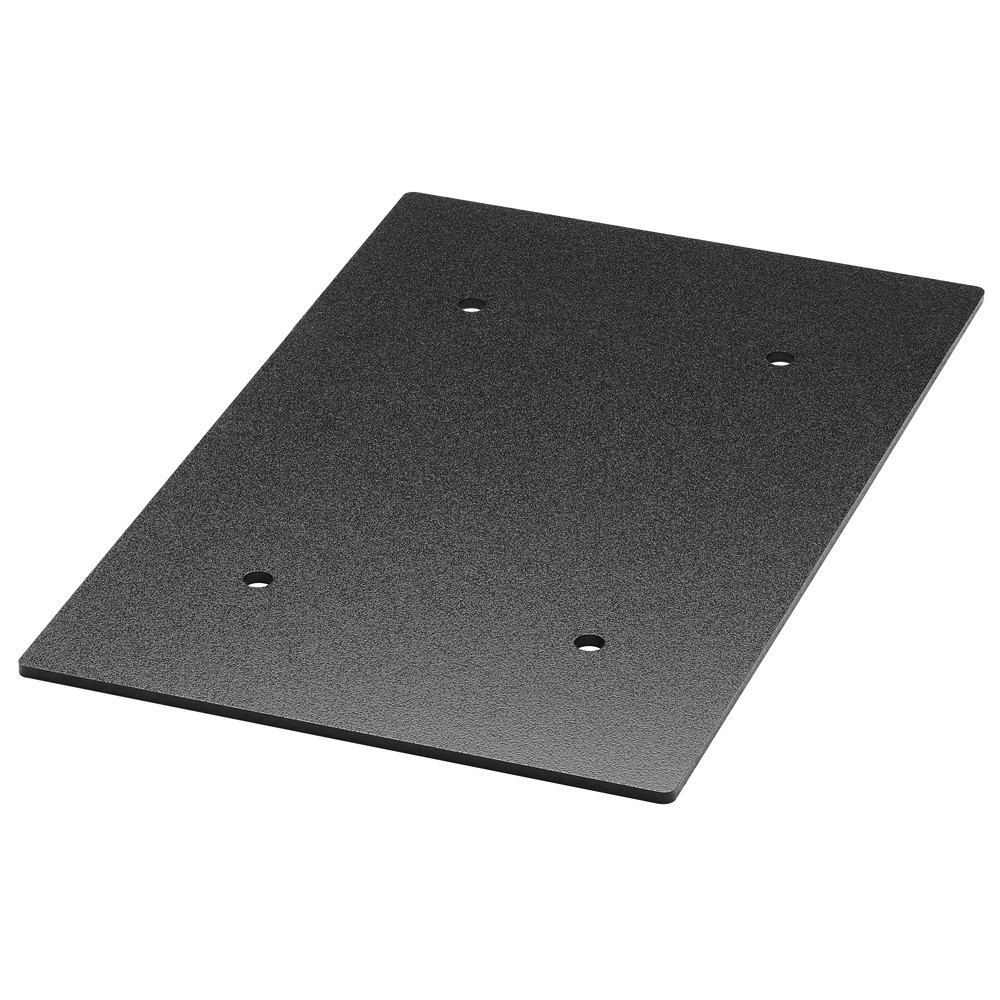

• (1) Audio-Technica AT8631 Joining Plate for Two Half-Rack Wireless Receivers
• (1) CBI MLC-20 LowZ XLR Microphone Cable - 20ft

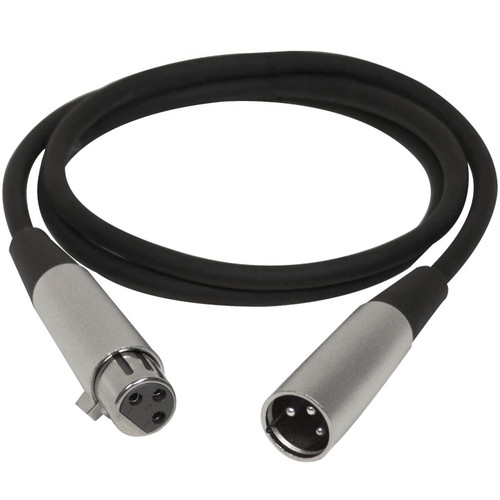

• (2) CBI MLN-3 XLR Patch Cables - 3ft

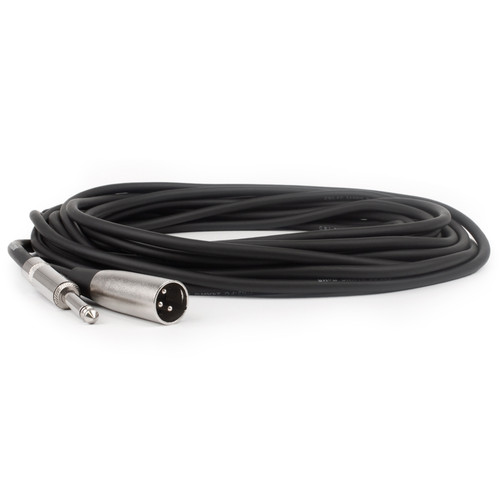

• (2) CBI BLC-3 1/4" Male TRS to Male XLR Cables- 3ft
• (500') West Penn AQ227 12/2 Aquaseal Fire-Alarm Speaker Wire
