Gym Sound System with 8 Bose Professional ArenaMatch Speakers with Multi-Channel Multi-Zone Mixer (Discontinued Components)

By Bose Professional

Gym Sound System with 8 Bose Professional ArenaMatch Speakers with Multi-Channel Multi-Zone Mixer (Discontinued Components)

Name: Gym Sound System with 8 Bose Professional ArenaMatch Speakers with Multi-Channel Multi-Zone Mixer (Discontinued Components)
Brand: Bose Professional
SKU: GMSS-8AMU108PM4500N
Price: 20167.11 USD
Availability: OutOfStock

Write a Review

Part #:

GMSS-8AMU108PM4500N

Model #:

GMSS-8AMU108PM4500N

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This high-quality high-performance Bose Pro Audio gym sound system with Bose ArenaMatch weather rated loudspeakers provide incredible sound reproduction for high-output music and clear vocals for play-by-play, announcements and entertainment.

System Highlights:
- Crowd Size: Small | Medium | Large
- Music Quality: Good | Better | Best
- Multi-Channel Multi-Zone Mixer
- Bluetooth Wireless Streaming
- Wireless Handheld and Lapel Mic

Description

Inside the Design

This powerful high-performance gymnasium sound system provides high-quality sound reproduction with a high-SPL up to 121 dB for foreground music and clear intelligible vocals for play-by-plays, announcements and paging. This gym sound system comes with eight Bose ArenaMatch AMU108 small format speakers with 90° x 60° of wide, even coverage, a multi-channel multi-zone mixer, a Bose PowerMatch PM4500N configurable professional power amplifier, a wireless handheld and lapel microphone and a wired handheld microphone for the announcers' table. The in-wall XLR input and Bluetooth mixer makes it easy for multiple users to control the system or connect additional mics or audio sources. You can easily adjust each individual input via the in-wall mixer, giving you full control of the audio mix. Gone are the days of incomprehensible audio systems, you'll truly be impressed with this incredible sounding high-performance sound system.

Sound System Features:

Superb intelligible speech for play-by-play and announcements
Incredible foreground music reproduction with high SPL of 121 dB
Durable IP55 weather-rated Bose loudspeakers with wide coverage
Multi-zone mixer offers versatile routing, mixing, and control of multiple audio sources in an easy-to-operate design
Bose PowerMatch PM4500N configurable 4-channel power amplifier 4 x 500 watts at 4 ohms
Very efficient and cost-effective wireless, hands-free convenience of a lavalier with the flexibility of a handheld mic
Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand
Comes with stainless-steel U-brackets to easily mount the ArenaMatch speakers

gym sound system

About the System Components

This high-quality gymnasium sound system includes eight Bose ArenaMatch Utility AMU108 8" IP55 rated outdoor loudspeakers with 90° x 60° coverage, a Tascam MZ-372 industrial grade multi-channel multi-zone mixer, a Bose PowerMatch PM4500N 4-channel 2000W configurable power amplifier with an Ethernet port, an Audix AP62 C210 wireless microphone system with R62 true diversity receiver, H60/OM2 handheld mic, and ADX10 lavalier mic, an Atlas Sound WTSD-MIX31K indoor outdoor 3x1 analog wall mic / line / Bluetooth / aux mixer and WTSD-COVER, an all-weather locking security cover, a Pure Resonance Audio UC1S vocal microphone with On/Off switch, an Atlas Sound DS7E 8" - 13" adjustable height desktop mic stand with 25ft mic cable. Also included is a Furman Merit M-8S power sequencer, a Gator GRW2009509 9U 21" deep sectional wall rack with a glass door, a Gator GRW-DRW2 2U rack drawer with lock and key, a 50-pack of rack screws, two 6' CBI XLR cables, four 6' CBI MLN-6-PREP-F female XLR to prep wire cables and 1000' of 12/2 non-plenum speaker wire to complete your sound system.

Not sure if this is the right Gym Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeaker with 90° x 60° Coverage:

Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
Deploy to provide high-level foreground music in any outdoor venue
Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for more consistent frequency and polar response
Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
Provide wide, even coverage with 90° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
Perform in the most demanding applications with 80 Hz – 18 kHz frequency response and 121 dB maximum peak SPL Support lowest vocal range with 1x Bose LF8 8-inch woofer featuring a 2-inch long-excursion voice coil, which extends response to 80 Hz

Tascam MZ-372 Industrial Grade Multi-Channel Multi-Zone Mixer:

Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input "sets"
Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
Separate stereo booth, recording, and headphone outputs each with independent control
One additional mic-compatible XLR input on the front panel with "talkover" function automatically lowering source audio
Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
Compact 3U rack mount design

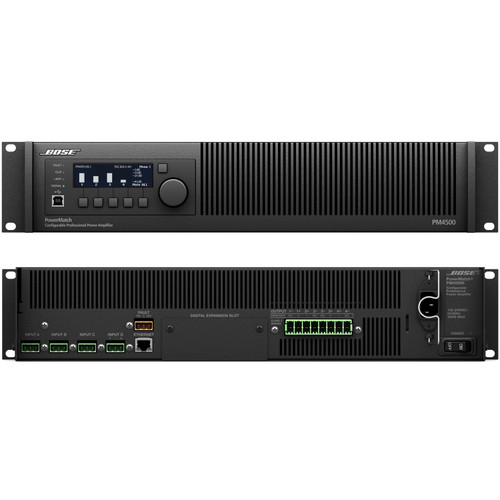

Bose PowerMatch PM4500N 4-Channel Configurable Power Amplifier with Ethernet Network Control:

QuadBridge™ Technology – Allows the 4 available channels to be configured as Mono, V-Bridge, I-Share or Quad mode, allowing the total available power of the amplifier to be allocated to one or more output channels. The amplifier is capable of driving both low impedance and 70/100V loudspeaker loads directly.
Bose® ControlSpace® Designer™ software – PowerMatch amplifiers can be fully configured using ControlSpace Designer software via the front panel USB connection, or the rear panel Ethernet connection. Using ControlSpace Designer software you can access additional features including: Parametric EQ stages, load sweep of each output channel and auto standby. ControlSpace Designer software is also used to integrate network model PowerMatch amplifiers into larger control and monitoring systems comprised of Bose ESP processors and CC control centers.
Auto-Standby/Auto-Wake function – When enabled, this function automatically enters/exits Standby Mode, allowing the system to consume less power.
Dual voltage and current feedback loop – Proprietary design combines Class-D efficiency with a unique current and voltage feedback loop circuit that continuously monitors and controls both the current and voltage delivered to the loudspeaker load. Independent of power level and load impedance, the amplifier consistently delivers the widest possible dynamic range, frequency response and lowest possible distortion.
PeakBank™ power supply – Regenerative 4-quadrant power supply enables higher power density while allowing the re-use of energy from reactive loads that is normally wasted in conventional Class-D designs. This highly efficient amplifier design delivers sustainable and repeatable low frequency response.
Fast-tracking power factor correction (PFC) – Efficiently manages the current drawn from the AC mains, allowing the amplifier to drive loudspeakers to maximum output longer without power fluctuation. PFC provides superior transient response and functions at peak burst power much longer than conventional Class-D amplifier designs to satisfy the requirements of even the most demanding program material.

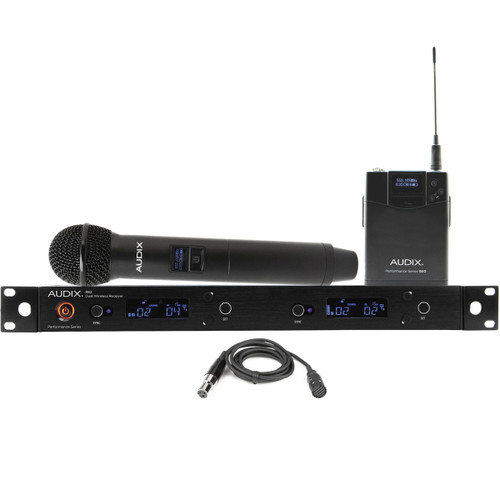

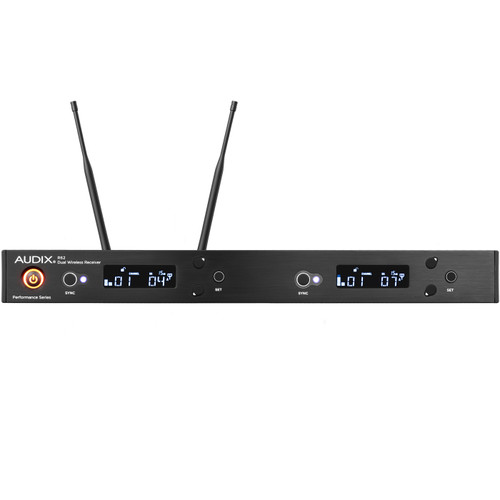

Audix AP62 C210 Wireless Microphone System with True Diversity Receiver, H60/OM2 Handheld Mic and ADX10 Lavalier Mic:

64 MHz wide spectrum tuning receiver
2560 Tunable frequencies
One-touch auto scan searches for clear channel
One-touch sync links transmitter to receiver via infrared beam
64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
Durable metal housing
14 Hour run time - AA batteries
64 MHz wide spectrum transmitter with ADX10 lavalier microphone
Durable metal housing
14 Hour run time - AA batteries

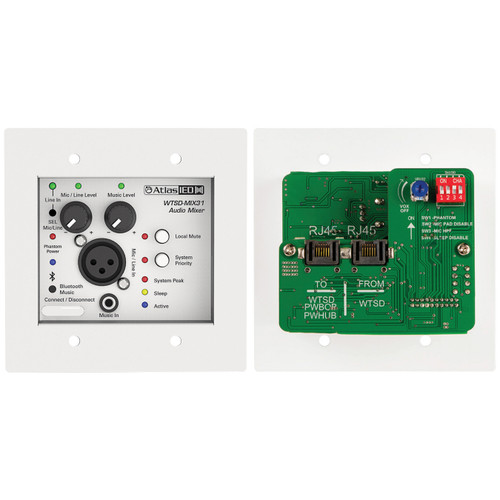

Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer:

Indoor/outdoor use
XLR balanced mic or line input with individual level controls
3.5 mm stereo actively summed input with level control
Commercial grade Bluetooth input with level control
Fits most 2-gang boxes
Uses industry-standard Cat5 or Cat6 cable
High gain balanced line output for applications up to 400ft
120Hz/12dB low cut filter for mic/line
Local mute switch
Remote trigger output for remote amplifier turn on
System priority mute function
Input signal and peak indicators
Energy-saving auto-sleep mode

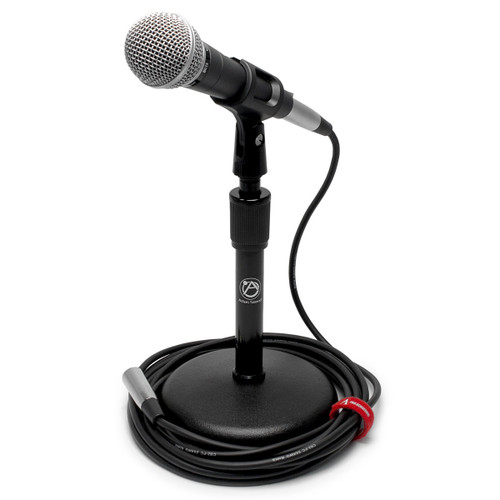

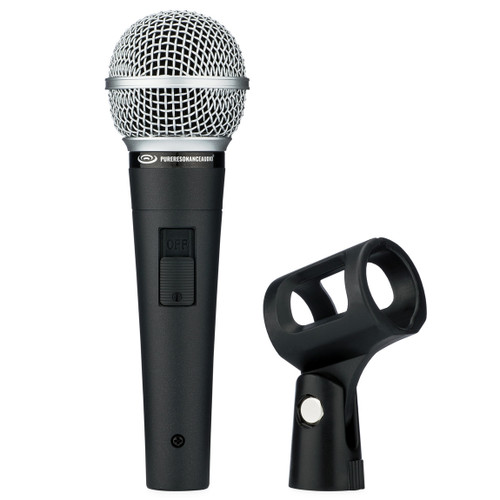

Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch and Mic Clip:

Super heavy-duty housing
Built-in wind and breath "pop" noise filter
Ultra dependable quiet switch
Steel mesh grille
SwitchCraft connector
Frequency response tailored for vocals
Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
Supplied with break-resistant stand adapter
Frequency response: 50 to 16,000 Hz
For outdoor and indoor events

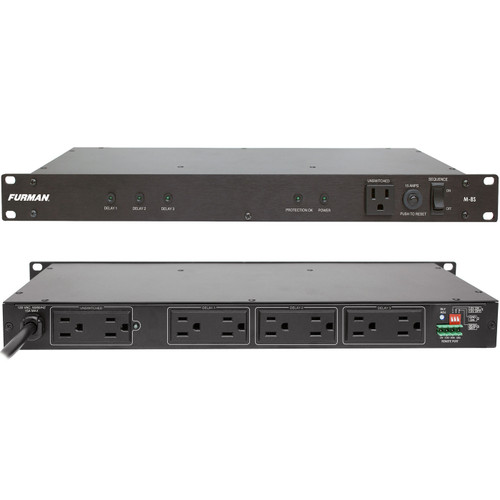

Furman Merit M-8S Power Sequencer:

Standard level AC protection and filtering
Six sequenced rear panel outlets (in 3 groups), two unswitched rear panel outlets, and one front panel unswitched outlet
Momentary and Maintained sequencing via rear panel terminal block or front panel switch (momentary only)
All settings and configurations available on rear panel
15 amp rating
Three year limited warranty

DOCUMENTS

System Includes

(8) Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeakers with 90° x 60° Coverage
(1) Tascam MZ-372 Industrial Grade Multi-Channel Multi-Zone Mixer
(1) Bose PowerMatch PM4500N 4-Channel Configurable Power Amplifier with Ethernet Network Control
(1) Audix AP62 C210 Wireless Microphone System with True Diversity Receiver, H60/OM2 Handheld Mic and ADX10 Lavalier Mic
(1) Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer

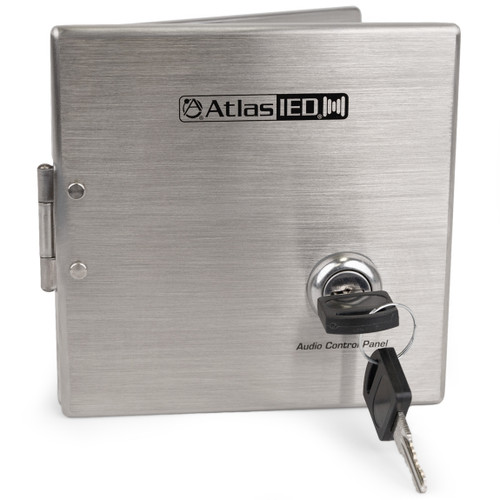

(1) Atlas Sound WTSD-COVER All-Weather Security Cover for WTSD Wall Plates
(1) Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch and Mic Clip
(1) Atlas Sound DS7E 8" - 13" Adjustable Height Ebony Desktop Mic Stand
(1) Furman Merit M-8S Power Sequencer

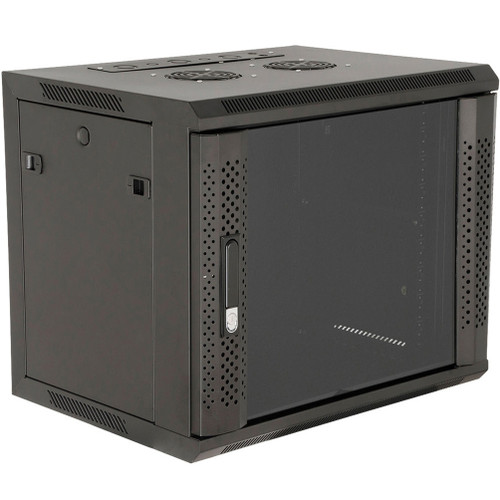

(1) Gator GRW2009509 9U 21" Deep Sectional Wall Rack with Glass Door

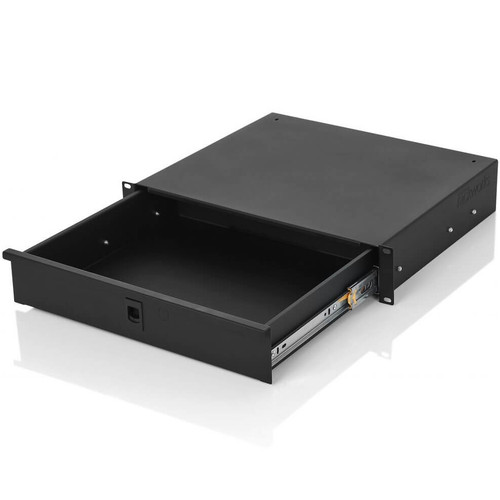

(1) Gator GRW-DRW2 Rackworks 2U Rack Drawer

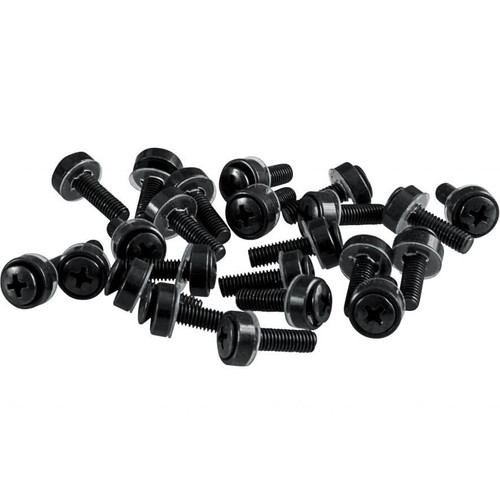

(1) Gator GRW-SCRW050 Rack Screws (50 Pack)

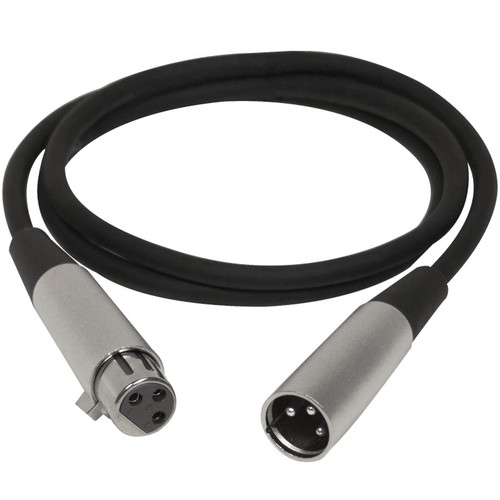

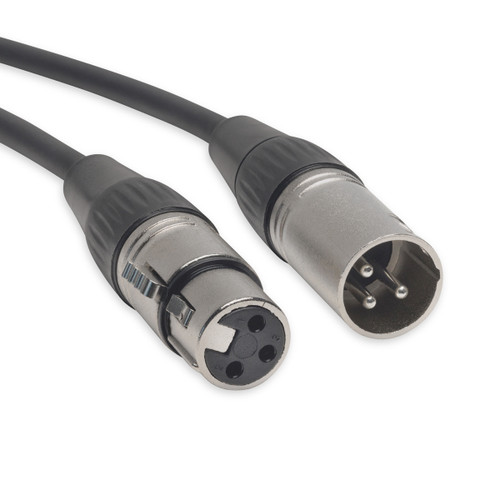

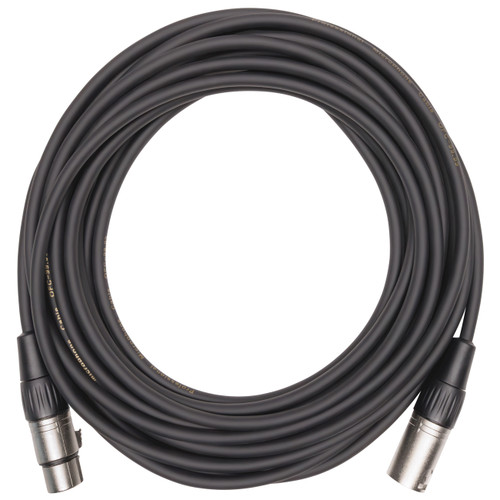

(1) Pure Resonance Audio XLR-25 Microphone Cable - 25ft
(2) Pure Resonance Audio XLR-6 Microphone Cables - 6ft

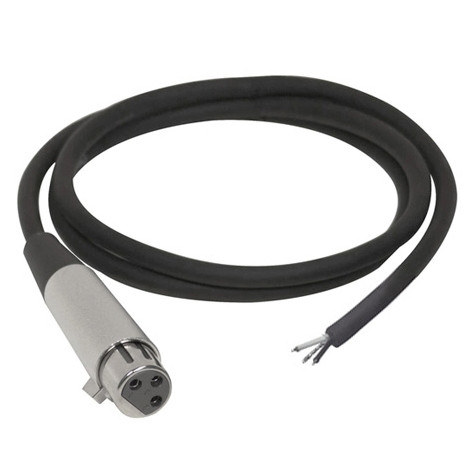

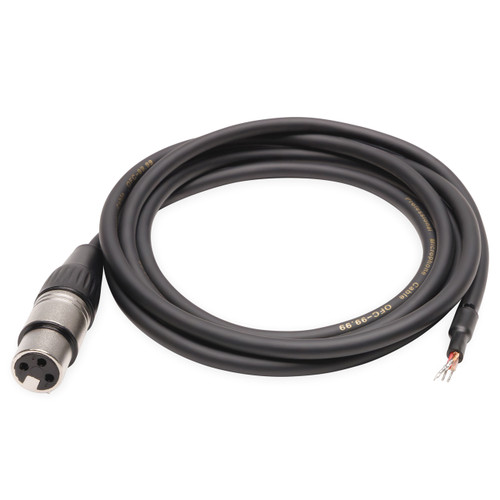

(4) Pure Resonance Audio XLRF-6-PREP Female XLR to Prep Patch Cables - 6ft

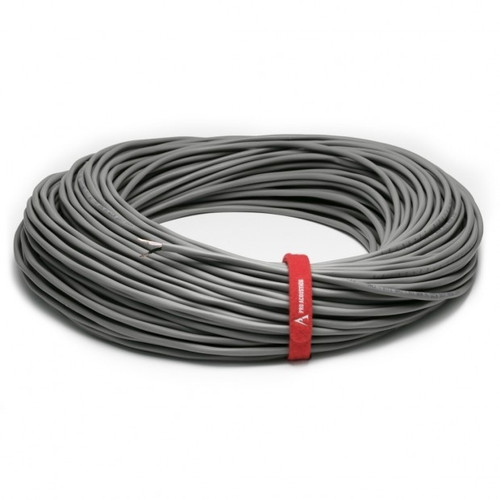

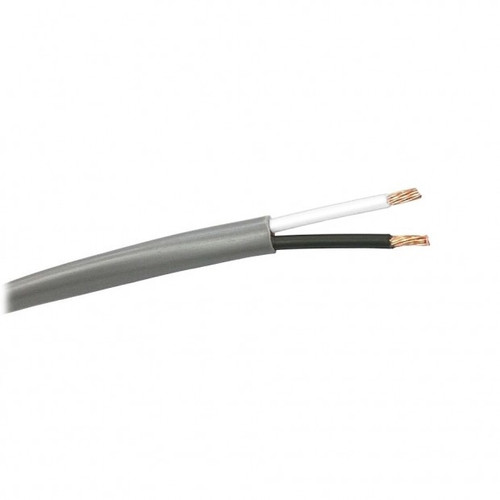

(1000') West Penn 227 12/2 Non-Plenum Audio Speaker Wire
