Gym Sound System with Distributed Hanging Pendant Speakers, Bluetooth Streaming and Wireless Microphone (Discontinued Components)

Inside the Design

This gym sound system is a powerful and dependable solution to your gymnasium audio needs. The indoor/outdoor pendant speakers from SoundTube provides a consistent wide dispersion pattern with BroadBeam technology. These speakers are made to last with weatherized components, steel grilles, and a protective powder-coated finish. The Denon DN-312X 12-channel mixer with 6 mic/line combination inputs and 6 additional line inputs provides individual level control for all inputs in addition to level control for the mono output port and a master level control. With professional audio connections, the Tascam CD-400U is a versatile and reliable media player with AM/FM radio, SD, USB, CD, and Bluetooth. The QSC CMX300Va is a proven and reliable amplifier designed for superior performance and accurate studio-quality sound. Also included is the user-friendly MIPRO ACT-2401/ACT-24HC wireless handheld microphone system, making this gym sound solution easy to operate and budget-conscious.

Sound System Features:

• Durable 125W 8" pendant speakers with wide dispersion which results in fewer speakers, reduced power needs, shorter installation time and cost savings
• Easy to use 12-channel mixer with 6 mic/line combination inputs and 6 additional line inputs
• QSC CMX 300Va 2-channel power amp provides unmatched performance, the right power for the job and an affordable price point
• Wirelessly stream audio from any Bluetooth-enabled smartphone, tablet or other mobile devices with the Tascam CD-400U
• 2.4 GHz wireless handheld microphone with unique multi-layered metal grille that protects capsule against impact, rolling and pop noise to ensure sound clarity



About the System Components

This Pro Acoustics designed sound system includes six SoundTube RS800i 8" 125W weatherized pendant speakers, a Denon Professional DN-312X 12-channel line mixer, a QSC CMX300Va 2-channel power amplifier, a Tascam CD-400U CD and Bluetooth media player, and a MIPRO ACT-2401/ACT-24HC wireless handheld microphone system. We've also included cables and speaker wire to get your system set up.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

SoundTube RS800i 8" Open-Ceiling Weatherized Indoor Outdoor 125W Pendant Speakers:

• Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 10 kHz, independently verified)
• One 8" (203 mm) polypropylene woofer and one 1" (25 mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink
• Weatherized components for indoor and outdoor applications
• Includes UL listed hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot
• Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
• Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking
• Steel grille with protective powder-coated finish for lasting durability
• Average sensitivity of 89.5 dB offers high-output capabilities and reduced amplification costs
• UL 1480 (UEAY), 2239 (hanging cable) and milspec 810 approved
• High-quality black or white paint finish
• Custom paint colors optional
• Optional accessory: AC-RS-SM8 bracket for surface-mount applications

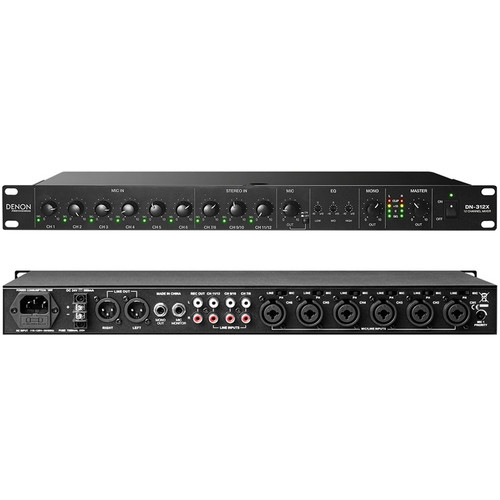

Denon Professional DN-312X 12-Channel Line Mixer with Priority:

• 6 HDHQ™ combination inputs with MIC, Phantom, and Line selector switches
• 6 mono (3 stereo) RCA Inputs
• Mic monitor 1/4" output for private listening to all mic inputs
• Balanced XLR line outputs
• Mono 1/4" line output can be used to feed audio to external recording device
• AC or 24V DC power inputs
• Mic 1 Priority Control
• Master and individual level controls
• 1U rack mountable



QSC CMX300Va 2-Channel Power Amplifier:

• "Flex-Use" loading options allow you to drive low-impedance loads down to 2 ohms and certain models to drive 70 and 100V distributed loudspeaker systems
• "Flex-Use" input connectivity choices including actively balanced barrier strip, XLR, or 1/4" TRS
• "Flex-Use" output connectivity choices include NL4 Speakon™ and detachable terminal block
• Rack mountable with chassis less than 16" or 40.6 mm deep
• 1 dB recessed, detented gain controls for fast, accurate and repeatable settings
• Tamper-proof security cover for gain controls
• Recessed rear DIP switches for easy selection of stereo, parallel, or bridged mode operation, and the additional choice of enabling/disabling low-frequency filter protection
• Low-noise variable-speed fans with rear-to-front airflow keep amplifiers and racks cool

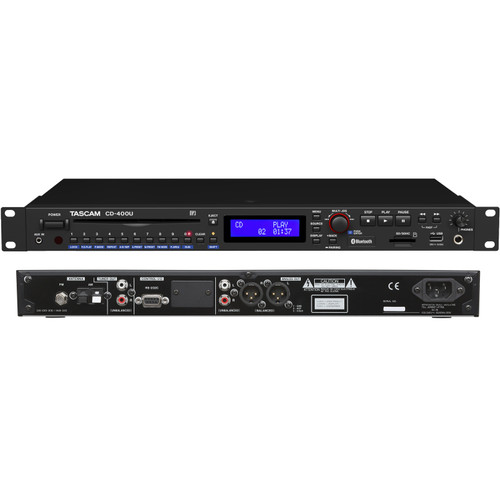

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

• CD/SD/USB/ and FM/AM tuner realtime audio playback
• Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
• Outputs: XLR, RCA X 2, and headphone
• 1/8" audio input for playback from any external source
• "Power on Play" function starts audio playback automatically when powered on
• "Panel Lock" function disables buttons to avoid unauthorized operation or programming
• Real-time recording from CD or FM/AM tuner to SD or USB media
• External control via RS-232C
• Control via ethernet with optional IF-E100 ethernet card is planned in the future

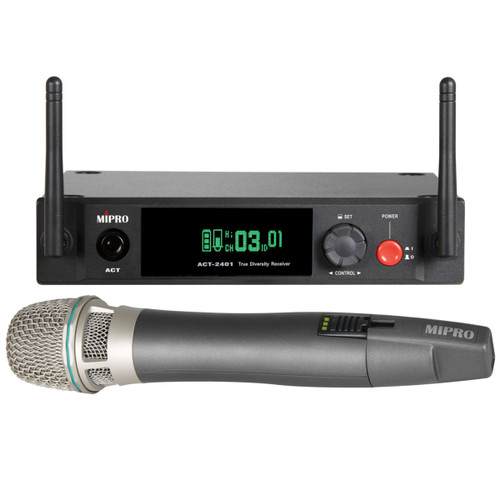

MIPRO ACT-2401/ACT-24HC Single-Channel 2.4 GHz Handheld System:

• Receiver:
• 2.4 GHz ISM band stable digital FSK modulation circuitry. All frequencies are located within this band
• With the FHSS frequency-hopping technique, each channel has 4 preset hopping frequencies
• By using an adaptive tracking algorithm, the 2400-Series can skip the Wi-Fi frequency in use and effectively avoid interference from 2.4 GHz communication products
• The hopping frequencies skip most Wi-Fi frequencies
• With dual tuner, true diversity receiving, receiving distance is up to 100 meters (330 ft) with no signal drop-out
• PCB is enclosed in a sturdy case
• The antennas are fixed at the left / right side of the front panel
• The transmitter has high-efficiency circuitry design and uses a single rechargeable lithium battery for operation
• Ideal for entry-level consumers
• Transmitter:
• Bright LEDs for battery status
• Patented design of the integrated grille and battery housing makes it easy to unscrew the grille to open the battery compartment and exchange the lithium battery
• The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise and ensures sound clarity
• Proprietary capsule suspension design eliminates vibrations and touch noises for a true natural sound reproduction
• Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers
• World's first ACT™ function provides precise and rapid frequency sync to the receiver
• Transmitter has high-efficiency circuitry design and uses a single rechargeable lithium battery for operation

• (6) SoundTube RS800i 8" 125W Open-Ceiling Weatherized Indoor Outdoor Pendant Speakers
• (1) Denon Professional DN-312X 12-Channel Line Mixer with Priority
• (1) QSC CMX300Va 2-Channel Power Amplifier
• (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
• (1) MIPRO ACT-2401/ACT-24HC Single-Channel 2.4 GHz Handheld System

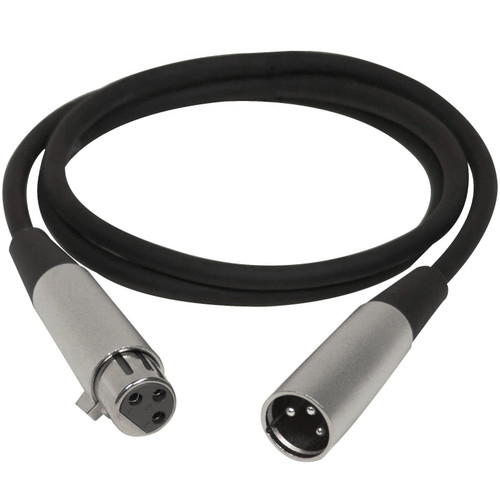

• (1) CBI MLN-3 XLR Patch Cable - 3ft
• (1) CBI BLC-3 22 Gauge Balanced Wire Cable - 3ft

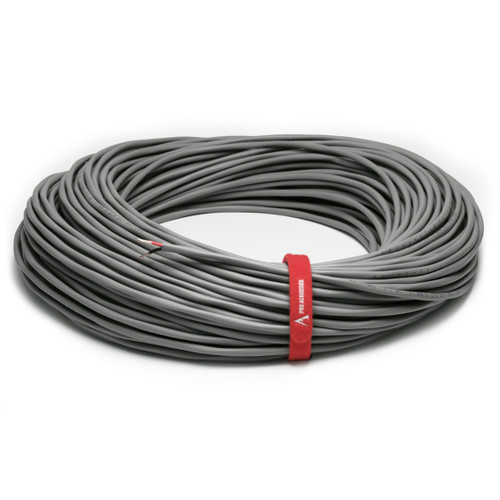

• (500') West Penn 225 16/2 Audio Speaker Wire
