Gym Sound System with TOA Line Array Speakers, Digital Mixer with Wi-Fi and Remote In-Wall Bluetooth Mixer and Input Wall Plate

Part #:
GMSS-2SRT5UI16NX152
Model #:
GMSS-2SRT5UI16NX152
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This gym sound system with two TOA line array speakers provides excellent speech clarity and is designed for most school gyms and athletic spaces with strong reverberation. Features a digital mixer that allows you to control your audio with a tablet or smartphone anywhere in the gym. Convenient in-wall mixers and an XLR input connection plate allows you to connect wirelessly via Bluetooth or patch in any audio source.



System Highlights:
- Budget: Under $14,000
- Crowd Size: Small | Medium | Large
- Music Quality: Good | Better | Best
- Point source line array improves intelligibility in reverberant spaces
- Wi-Fi and Bluetooth Wireless Streaming
- Wireless control via tablet or smartphone
Remote wall plate mixer with built-in Bluetooth receiver
- Includes: Wired handheld mic & 2 handheld wireless mics

Description

Inside the Design

This gymnasium sound system features two TOA line array speakers that provide high-quality speech and music reproduction which is perfect for school gyms and athletic spaces with strong reverberation. This versatile gym speaker system also features a digital mixer that allows you to control the audio from your tablet or smartphone anywhere in the gym. Convenient in-wall mixers and an XLR input connection plate allows you to connect wirelessly via Bluetooth or patch in any audio source. We’ve also included three microphones, one with a 50’ mic cable and desktop mic stand for presentations and sports announcements, and two that you can connect the Sennheiser XSW-D dongles to turn them into wireless microphones with approximately 250ft range.

Sound System Features:

  • TOA SR-T5 line array speakers with uniform sound volume and clear audio output
  • 12-input digital mixer with Wi-Fi can control the audio from your tablet, PC or smartphone
  • Bluetooth-enabled - wirelessly stream backing tracks or background music from any Bluetooth-compatible device
  • Easily controlled via in-wall mixers with balanced line inputs and outputs
  • Ultra-clear microphones and desktop mic stand ideal play-by-play announcers, judges and more

About the System Components

This Pro Acoustics designed gym sound system includes two TOA SR-T5 2-way line array speakers with 2 sets of SR-PB5 wall mount pan brackets, a Soundcraft Ui16 tablet/PC/smartphone controlled digital mixer with Wi-Fi, and an Ashly Audio nX1.52 2-channel power amplifier, 1500W at 2 ohms per channel. Also included is an Atlas Sound WTSD-MIX41K indoor outdoor 4x1 analog wall mic / line aux mixer, an Atlas Sound WTSD-XLR4 4-input XLR wall plate for the WTSD-MIX41K, an Atlas Sound WTSD-MIX31K indoor outdoor 3x1 analog wall mic / line / Bluetooth / aux mixer and three Atlas Sound WTSD-COVER all-weather security covers with lock and keys for extra security. An Atlas Sound AP-S20RT 20A AC power distribution AC suppressor with remote activation, three Pure Resonance Audio UC1S Ultra-Clear dynamic vocal microphones each with a quiet On/Off switch, two Sennheiser XSW-D XLR BASE SET digital XLR wireless systems so you can turn two of your mics into wireless microphones. A Gator GFW-MIC-0601 desktop mic stand with round base and twist clutch, a Gator GRW2012509 12U 21" deep sectional wall rack with a glass door and lock, a Gator GRW-DRW3 rackworks rack drawer with lock, two Gator GRW-PNLUNIKO universal knockout panels, a Rolls XLM113 connector male XLR to screw terminal plugs for installation with 3 connecting wires, two CBI NL4FX 4 pole SpeakON cable connectors, two 50’ C2G 28696 Cat5e snagless shielded (STP) Ethernet network patch cables, 50’ of CBI C222S 22/2 twisted pair shielded microphone cable, two 3’ CBI XLR microphone cables, two 50’ XLR microphone cables and 250' of 12/2 non-plenum audio speaker wire.

Not sure if this is the right Gymnasium Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

TOA SR-T5 2-Way Line Array Speakers:

  • Uniform sound volume and clear audio output
  • Sturdy impact-resistant construction
  • Internal two-way passive crossover network circuitry for single-amplifier operation
  • Speaker's downward angle adjustable with accessory mounting bracket
  • Horizontal angle adjustable in conjunction with optional SR-PB5 Wall Pan Bracket
  • Optional MT-S0601 matching transformer for use in high-impedance applications
  • Safety wire supplied to prevent the speaker from falling during installation work and after installation

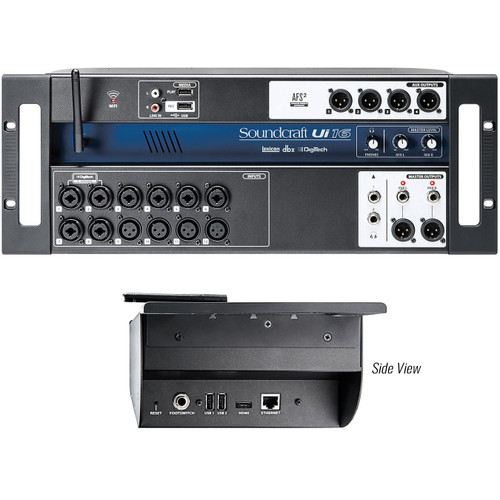

Soundcraft Ui16 Tablet/PC/Smartphone Controlled Digital Mixer with Wi-Fi:

  • Tablet/PC/Smartphone Controlled Digital Mixer
  • Integrated Wi-Fi
  • Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
  • Use up to 10 control devices (tablets, phones, PCs) simultaneously
  • Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
  • Fully recallable and remote-controlled mic preamps
  • 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
  • 31-band Graphic EQ, Noise Gate and Compressor on all outputs
  • Real-Time Frequency Analyser (RTA) on inputs and outputs
  • 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
  • Subgroups, Mute Groups, View Groups, and more mixer controls
  • Show/Snapshot recall with channel safes and security lockout
  • 2-channel USB audio playback and recording

Ashly Audio nX1.52 2-Channel Power Amplifier 2 x 1500W and 2 Ohms:

  • Two or four channel high power, lightweight amplifier design
  • Individually configurable speaker outputs for Low-Z (to 2 Ohm), or High-Z (70V or 100V) via rear panel dip switches
  • Front panel power switch and level controls, defeatable
  • Front panel LEDs for temperature, current, signal, clip, mute, bridge mode, protect, sleep, and disable
  • Combo XLR - 1/4" jack and Euroblock connectors on all inputs
  • SpeakON® twist locking loudspeaker connectors for security, safety, and reliability
  • Back panel DIP switches per-channel for selection of hi-pass filter, limiter, input gain, and speaker output configuration
  • Remote DC level control per channel
  • Automatic selection of 110-120VAC or 220-240VAC operation, 50-60Hz, with detachable PowerCON ® AC connector
  • Power-saving automatic sleep mode, less than 1W, defeatable
  • Continuously variable cooling fan
  • Extensive protection circuitry
  • Independent amplifier and power supply circuitry

Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer:

  • Indoor/outdoor use
  • XLR balanced mic or line input with individual level controls
  • 3.5 mm stereo actively summed input with level control
  • Commercial grade Bluetooth input with level control
  • Fits most 2-gang boxes
  • Uses industry-standard Cat5 or Cat6 cable
  • High gain balanced line output for applications up to 400ft
  • 120Hz/12dB low cut filter for mic/line
  • Local mute switch
  • Remote trigger output for remote amplifier turn on
  • System priority mute function
  • Input signal and peak indicators
  • Energy-saving auto-sleep mode

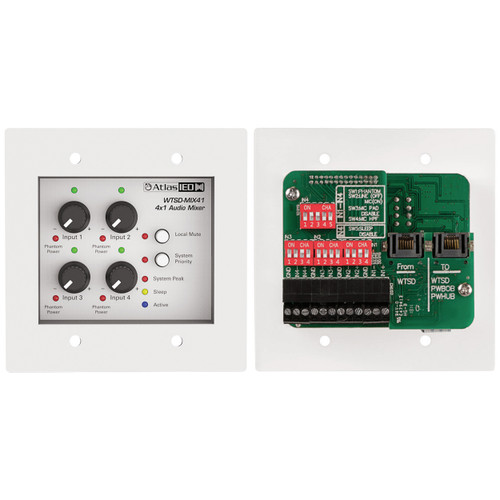

Atlas Sound WTSD-MIX41K Indoor Outdoor 4x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer:

  • Indoor or outdoor use
  • XLR balanced mic or line input with individual level controls
  • Wall plate mounted, fits into most 2 gang boxes
  • Uses industry-standard Cat5/6 wire
  • Linkable with other WTSD units on the same bus
  • High gain balanced line output for long distance applications up to 400ft
  • 120Hz / 12dB low cut filter for mic / line
  • Local mute switch
  • Remote trigger output for remote amplifier turn on
  • System priority mute function
  • Input signal and peak indicators
  • Energy saving auto sleep mode
  • WTSD-XLR4 XLR input plate (optional)
  • WTSD-COVER water-resistant stainless locking cover (optional)
  • WTSD-PWHUB receiver with limiter and isolated relays and emergency mute (optional)
  • TSD-DAC2i Analog to Dante® Digital audio transmitter (optional)

Atlas Sound WTSD-XLR4 4-Input XLR Wall Plate for WTSD-MIX41K:

  • 4 x XLR inputs in a 2-gang standard wall plate form
  • Individual 3-way removable connectors for each XLR
  • Strain relief tie-down on PCB
  • Provides XLR mic / line inputs for WTSD-MIX41K
  • Can be used to add XLR inputs to any balanced audio equipment
  • 25' of 2-conductor + shield hook up wire (3 mm diameter), included
  • Compatible with indoor / outdoor security cover, WTSD-COVER

Pure Resonance Audio UC1S Vocal Microphone:

  • Super heavy-duty housing
  • Built-in wind and breath "pop" noise filter
  • Ultra dependable quiet switch
  • Steel mesh grille
  • SwitchCraft connector
  • Frequency response tailored for vocals
  • Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
  • Supplied with break-resistant stand adapter
  • Frequency response: 50 to 16,000 Hz
  • For outdoor and indoor events

Sennheiser XSW-D XLR BASE SET Digital XLR Wireless System:

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver

System Includes

  • (2) TOA SR-T5 2-Way Line Array Speakers
    • (2 Sets) TOA SR-PB5 Wall Pan Brackets for SR-T5 Speakers
  • (1) Soundcraft Ui16 Tablet/PC/Smartphone Controlled Digital Mixer with Wi-Fi
  • (1) Ashly Audio nX1.52 2-Channel Power Amplifier 2 x 1500W @ 2 Ohms
  • (1) Atlas Sound WTSD-XLR4 4-Input XLR Wall Plate for WTSD-MIX41K
  • (1) Atlas Sound WTSD-MIX41K Indoor Outdoor 4x1 Analog Wall Mic / Line Aux Mixer
  • (1) Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer
    • (3) Atlas Sound WTSD-COVER All-Weather Security Covers for WTSD Wall Plates
  • (1) Atlas Sound AP-S20RT 20A AC Power Distribution AC Suppressor with Remote Activation
  • (3) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphones with On/Off Switch
  • (2) Sennheiser XSW-D XLR BASE SET Digital XLR Wireless Systems
  • (1) Gator Frameworks GFW-MIC-0601 Desktop Mic Stand with Round Base and Twist Clutch
  • (1) Gator GRW2012509 12U 21" Deep Sectional Wall Rack with Glass Door

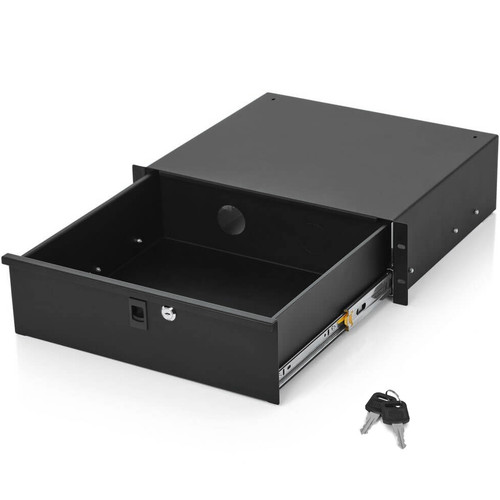

  • (1) Gator GRW-DRW3 Rackworks Rack Drawer with Lock
  • (2) Gator GRW-PNLUNIKO Universal Knockout Panels
  • (1) Rolls XLM113 Connector Male XLR to Screw Terminal Plugs for Installation, 3 Connecting Wires

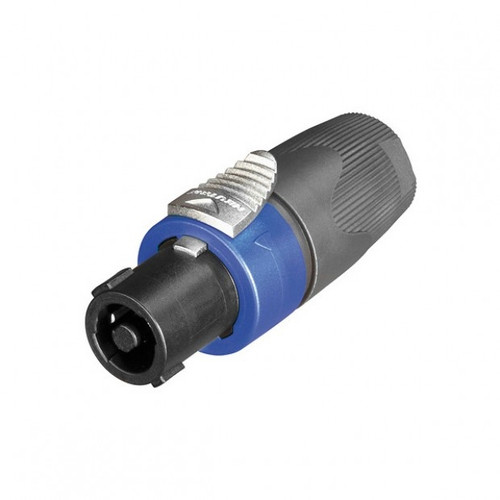

  • (2) CBI NL4FX 4 Pole SpeakON Cable Connectors
  • (2) C2G 28696 Cat5e Snagless Shielded (STP) Ethernet Network Patch Cables, Black - 50ft
  • (1) CBI C222S 22/2 Twisted Pair Shielded Microphone Cable - 50ft

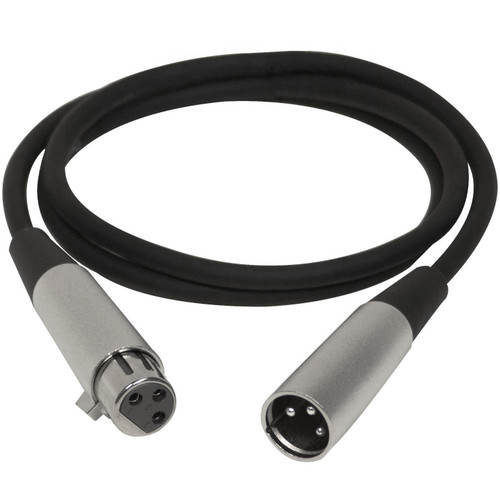

  • (2) CBI MLN-3 Performer Series XLR Microphone Cables - 3ft

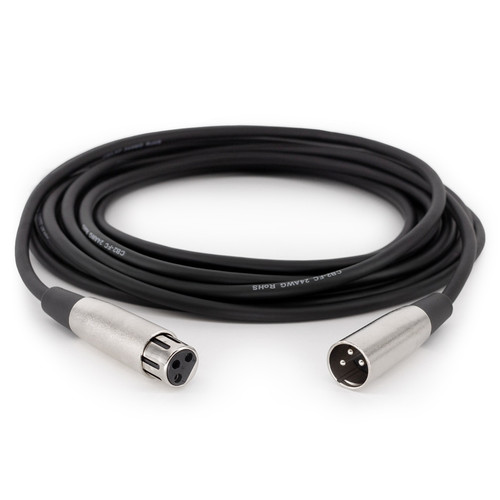

  • (2) CBI MLN-50 Performer Series XLR Microphone Cables - 50ft
  • (250') West Penn 227 12/2 Non-Plenum Audio Speaker Wire
