Gym Sound System with 2 TOA HX-5 Loudspeakers, Subwoofers, Bluetooth Media Player and 2 Microphones

Inside the Design

This gym sound system with TOA line array and sub speaker systems provide variable dispersion with hi-frequency drivers that improve output, power handling and provide enhanced vocal intelligibility for gym classes, sporting events, and pep rallies. Features a wired and wireless microphone for presentations and sports announcements and a Bluetooth media player so you can play music from your phone or tablet, CDs, MP3 player, SD card, USB thumb drive, or the AM/FM radio!

Sound System Features:

• HX-5's wavefront control technology is ideal for reproducing clear sound in spaces with
  long reverberation times or high background noise
• Hi-frequency drivers improve output, power handling, and provides enhanced intelligibility
• FB-120 subs are ideal for reproducing dynamic low-frequency sound
• Yamaha PX10 power amplifier combines intelligent processing with high output power
• Denon DN-312X 12-channel mixer provides individual level control for all inputs
• Electro-Voice RE3-ND76 wireless handheld mic provides crisp, clear, and balanced vocal presence
• Bluetooth media player that plays USB, SD or CD and has built-in AM/FM tuner

About the System Components

This Pro Acoustics designed gym sound system includes two TOA HX-5 line array loudspeakers and two TOA FB-120B subwoofers with two HY-PF1 speaker rigging frames. Also included is a Yamaha PX10 power amplifier, a Denon DN-312X 12-channel line mixer with priority, an Electro-Voice RE3-ND76 UHF handheld wireless mic system, a Pure Resonance Audio UC1S vocal microphone with on/off switch, a Tascam CD-400U CD and media player with integrated AM/FM receiver and Bluetooth, DBX DriveRack PA2 loudspeaker management system and an Atlas Sound AP-S15A 15A power conditioner and distribution unit. Accessories include an Atlas Sound DS7 chrome adjustable height desktop microphone stand, a Gator GR-STUDIO-8U 19" 8U rack, a 1U steel blank panel, five 3' CBI MLN-3 XLR patch cables, one 25' CBI MLN-25 XLR cable and 500' of 227 12/2 speaker wire.

Not sure if this is the right Gymnasium Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

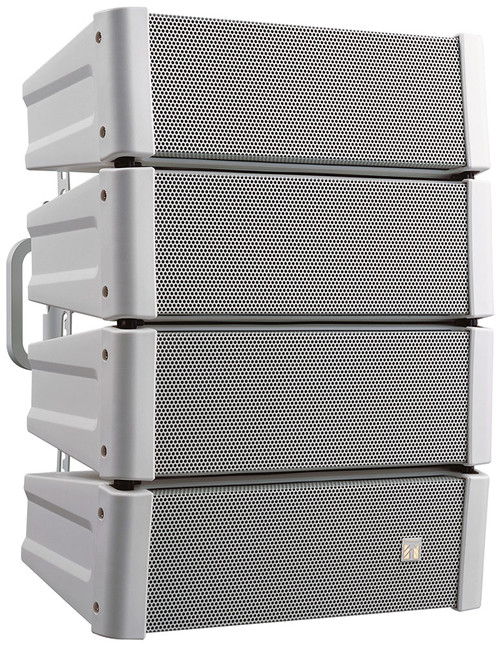

TOA HX-5 Line Array Loudspeakers:

• Measurement Data
• Ideal for auditoriums, houses of worship and gymnasiums and more!
• Adjustable dispersion angle to 60, 45, 30 or 15 degrees
• Improved intelligibility through tailored coverage
• Compact design includes four preassembled modules with four LF drivers and twelve HF dome tweeters
• In-line driver arrangement for superior vertical coverage control
• Horizontal coverage remains broad through speech range: 100 deg. fixed
• Contoured waveguide-baffle for distortion-free coverage control
• High power handling: 600 W cont. (200 W, 24 hr. pink noise)
• High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
• Stack up to four units for improved coverage control
• Lightweight polypropylene construction
• Available in black and white
• Weather-resistant versions
• Parallel connectors - dual Speakon and screw terminal
• Vertical or horizontal mounting
• Built-in surface-mount bracket
• You can change the HX-5 coverage angle in seconds!
• Hardware included for flying / suspension
• Optional wall, ceiling and stand-mount hardware
• Optional bracket for joining multiples into one array
• Compatible with Omnimount 60 Series mounting hardware
• Optional 70 volt transformer, model MT-200



TOA FB-120B Subwoofers:

• Designed for use in conjunction with HX-5 series or other full-range speakers
• Compact indoor subwoofer system, available black or white
• High-power 12” woofer, 600W, 8 Ω
• Ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations
• Equipped with convenient carrying handle

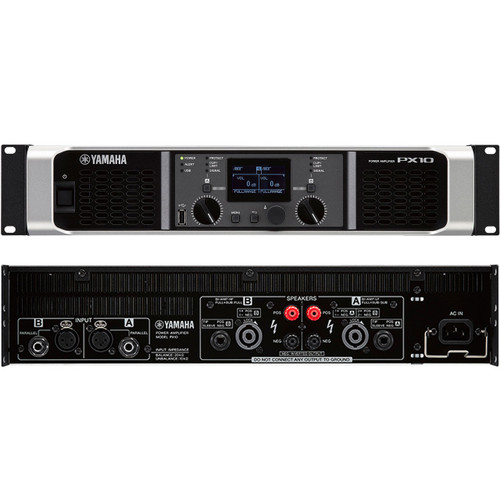

Yamaha PX10 Stereo Power Amplifier:

• 2x 1000W at 8Ω
• 2x 1200W at 4Ω
• Newly developed Class-D amplifier engine with a custom LSI
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Yamaha Speaker presets
• Utlities for safe and secure operation

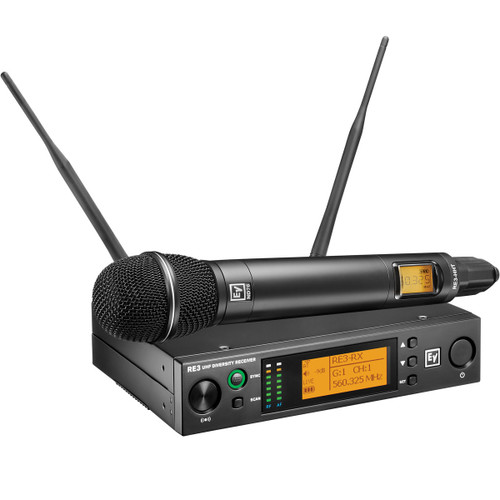

Electro-Voice RE3 Handheld UHF Wireless Microphone System:

• Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
• Excellent all-around vocal performance: crisp, clear and balanced
• Large diaphragm dynamic capsule creates a rich and detailed frequency response
• Shock-mounted capsule minimizes handling noise
• Memraflex grille resists denting

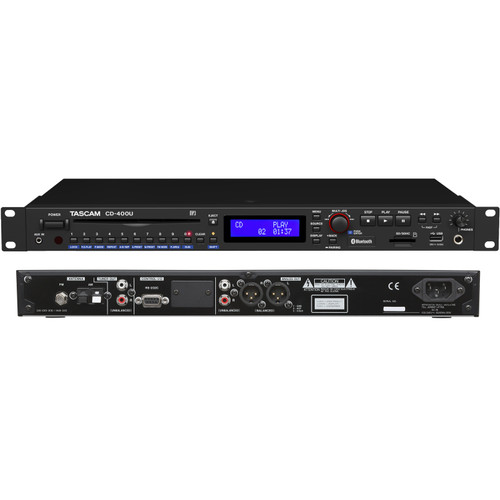

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

• CD/SD/USB/and FM/AM tuner realtime audio playback
• Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
• Outputs: XLR, RCA X 2, and headphone
• 1/8" audio input for playback from any external source
• "Power on Play" function starts audio playback automatically when powered on
• "Panel Lock" function disables buttons to avoid unauthorized operation or programming
• Real time recording from CD or FM/AM tuner to SD or USB media
• External control via RS-232C
• Control via ethernet with optional IF-E100 ethernet card is planned in the future



DBX Driverack PA2 Loudspeaker Management System:

• All New Setup Wizard
• Streamlined AutoEQ™
• All New AFS™ (Advanced Feedback Suppression)
• Mobile Control (Android®, iOS®, Mac®, Windows®)
• dbx Compression
• Graphic EQ
• 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
• Subharmonic Synthesis
• Crossover (supports full range, 2-way, and 3-way systems)
• 8-Band Parametric EQs (used for speaker tunings) Output
• dbx Limiting
• Driver Alignment Delays

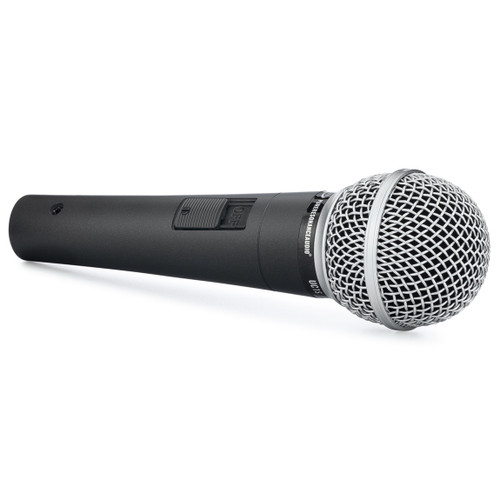

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch:

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events

• (2) TOA HX-5 Line Array Loudspeakers
• (2) TOA FB-120B Subwoofers
• (1) Yamaha PX10 Power Amplifier
• (1) Denon Professional DN-312X 12-Channel Line Mixer with Priority
• (1) Electro-Voice RE3-ND76 UHF Handheld Wireless Mic System with ND76 Dynamic Cardioid Microphone
• (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch
• (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
• (1) DBX DriveRack PA2 Loudspeaker Management System

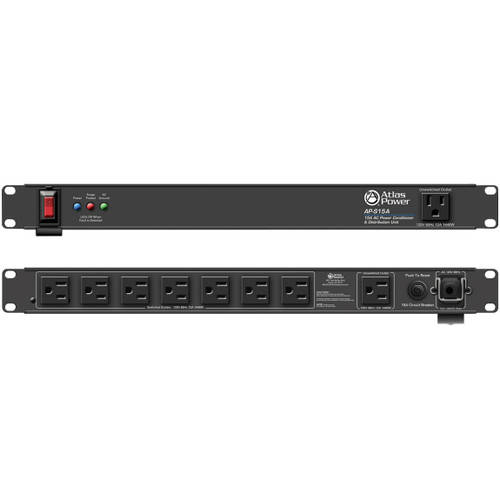

• (1) Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit

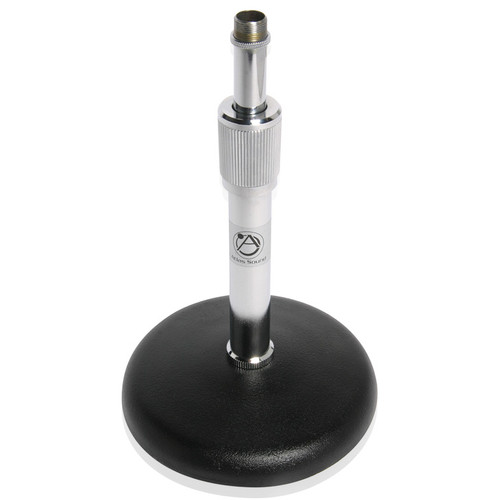

• (1) Atlas Sound DS7 Chrome Desktop Microphone Stand

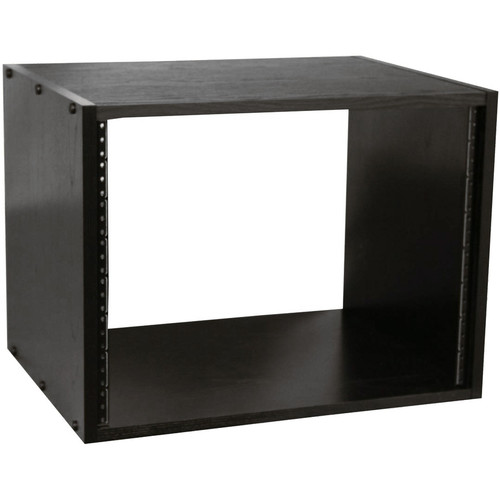

• (1) Gator GR-STUDIO-8U 19 inch Studio Rack
• (1) Gator GRW-PNLSTFT1 1U Steel Flat Panel
• (2) TOA HY-PF1 Speaker Rigging Frames for HX-5 and FB-120

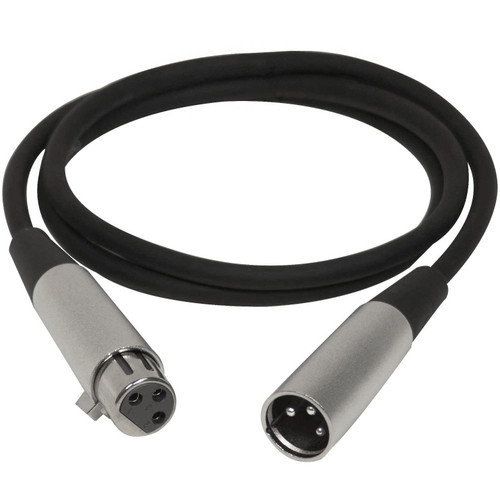

• (5) CBI MLN-3 XLR Patch Cables - 3ft
• (1) CBI MLN-25 XLR Cable - 25ft

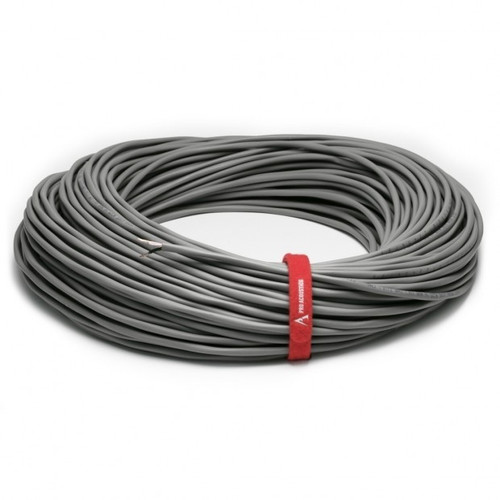

• (500') West Penn 227 12/2 Audio Speaker Wire
