Inside the Design
This gymnasium sound system is ideal for middle schools and high schools offering remarkable voice and music reproduction with wide 90° x 90° coverage from each IP66 rated S10 weatherproof loudspeaker. Includes an RZMA240BT 4-zone Bluetooth mixer amplifier to cover one or up to four different areas, and a BTR1 Bluetooth wireless audio receiver provides an extended 100ft of range. Also included is an Audix AP42 OM2 dual wireless handheld microphone system and a PMZ16 paging microphone capable of paging a single zone, group of zones, and/or all zones.
Sound System Features:
- Highly weatherproof IP66 rated stadium speakers with 200W of continuous power handling and 90° x 90° dispersion
- Provides ideal coverage of more than 4000 sq. ft. and up to 650ft for direct speech from each speaker
- A heavy-duty wall mounting bracket is included with each speaker for a quick, safe, and secure installation
- The RZMA240BT is equipped with built-in MP3, FM tuner, and Bluetooth
- RZMA240BT features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones
- The BTR1 provides ultimate wireless freedom and flexibility with extended 100ft range wireless streaming
- The Audix AP42 OM2 dual-channel UHF diversity receiver is designed to deliver enhanced range and easy configuration
- The remote PMZ16 paging microphone with 4 zone capacity is designed for use with the RZMA240BT mixer amplifier only
- PMZ16 microphone is capable of paging a single zone, a group of zones, and/or all the zones
About the System Components
Pure Resonance Audio S10 10" Loudspeakers
The Pure Resonance Audio S10 10" compact two-way coaxial full-range all-weather outdoor stadium loudspeaker offers superior voice and music reproduction with a wide 90° x 90° coverage angle from a durable construction. IP66 rated for long-lasting reliability in harsh environmental conditions, this highly weatherproof speaker is dust-tight and protected against direct high-pressure water. With a fiber-reinforced plastic and metal enclosure, and a built-in 200W 70V/100V multi-tap transformer with an 8-ohm bypass, the S10 is specially engineered for installation in outdoor commercial environments with the included wall mount bracket for easy mounting.

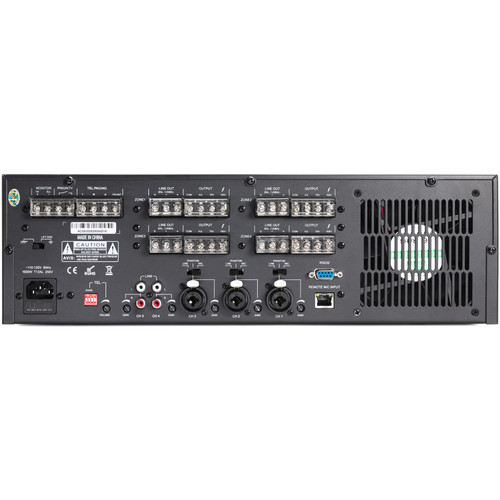

Pure Resonance Audio RZMA240BT 4 Zone Bluetooth Mixer Amplifier
Powerful and feature-packed, the Pure Resonance Audio RZMA240BT is a 4-zone commercial mixer amplifier equipped with built-in MP3, FM tuner, and Bluetooth. Featuring 4 x 240-watt output capability at 4 ohms, 70 and 100 volts, this multi-zone mixer amplifier is full of power. It is designed with advanced matrix technology that allows four-zone selectable inputs to be assigned to a zone, or across multiple zones with the push of a button. A monitor channel provides a 1-watt 8-ohm output for a control room monitor speaker. A convenient IR remote is available for volume and source control, and remote microphones can be daisy-chained via Cat5 for zone paging.
Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver
The BTR1 Bluetooth wireless audio receiver streams high-fidelity audio to your commercial sound system from any Bluetooth-enabled device. The BTR1 provides superior high-resolution audio streaming with an extended wireless range of up to 100 feet. This Bluetooth stereo receiver is easy to set up, pairs quickly, remembers up to 8 devices, and automatically reconnects to the last paired device.

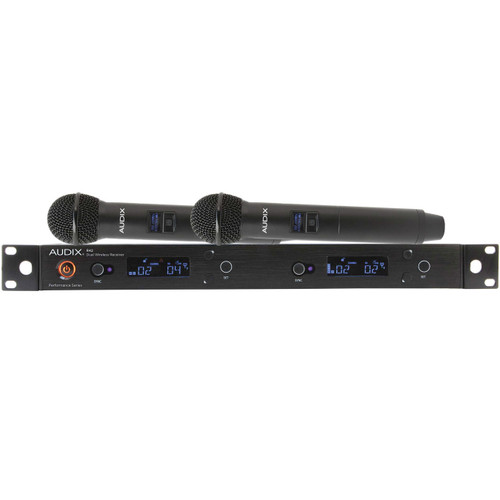

Audix AP42 OM2 Dual Channel Handheld Wireless Microphone System
The Audix AP42 OM2A is a professional true diversity dual handheld wireless system featuring the Audix OM2, which has a slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.
Pure Resonance Audio PMZ16 Paging Microphone Station
The Pure Resonance Audio PMZ16 remote microphone station with a 16" push-to-talk goose-neck condenser microphone is capable of paging a single zone, group of zones, and/or all zones. The PMZ16 paging microphone station can also be connected to the Pure Resonance Audio RZMA240BT multi-zone mixer amplifier, with the maximum shielded CAT5 length between the microphone paging station and mixer amplifier not exceeding 500 feet. This microphone station can be daisy-chained (4 max) via a shielded CAT5 for zone paging and chimes (1-4) and is a great addition to any gymnasium sound system.
