Gymnasium Sound System with Yorkville E12 Loudspeakers and Yamaha PX5 Power Amplifier (Discontinued)

This Yorkville Gymnasium Sound System is comprised of world-class products and brands that meet the demanding needs of indoor sports environments. Perfect for play-by-play announcements where vocal clarity and even coverage is essential. It is also great for the playback of high output music entertainment. Get a complete system including all major components, connectors, cables and accessories.

The Yorkville E12 loudspeaker is one of the first in a new series of élite cabinets designed and built for maximum versatility in multiple applications. Ideal for any small PA rental house, installer or sound company, these loudspeakers may replace a number of specific application cabinets in any inventory. The E12 is 1 x 12-inch / 1-inch, 400 watt loudspeaker delivers amazing punch for its size. The E12 can be utilized vertically or horizontally. The rotatable 80° x 50° horn means high frequency dispersion can be tailored to suit the cabinet's placement.

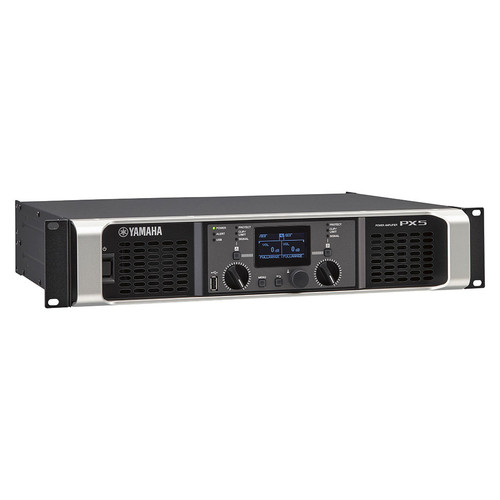

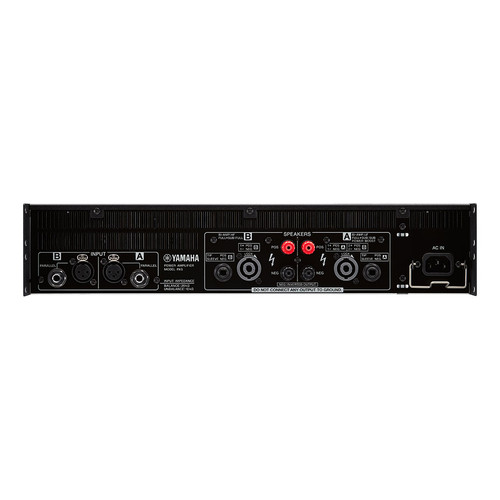

The versatile Yamaha PX5 combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. Ideal for a wide range of live and installed applications, the PX Series provides exceptional performance and advanced processing. PX amplifiers are driven by a newly developed Class-D amplifier engine that concentrates all the necessary functions into a single custom LSI chip. Yamaha’s new and unique PLL technology controls transfer characteristics in real time, achieving exceptional sound quality and power. High quality processing is at the heart of the new range, with flexible onboard parametric EQ, crossover, filters, delay and limiter functions as standard. All models feature Yamaha’s intelligent D-CONTOUR multi-band dynamic processing, allowing users to achieve consistent clarity and high-quality sound at any output level.

The Rolls RM67 is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input. A pre-Master RCA output has been provided for recording, and a Remote Volume output jack is provided for connection to a 100K ohm linear taper potentiometer and used as an external master level control.

Audio-Technica’s second-generation 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. New professional features include two available frequency bands and switchable antenna power. Also new to the 2000 Series, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220a handheld transmitters and/or ATW-T210a UniPak® transmitters in any combination.

The Shure SM48 unidirectional dynamic microphone is a great performance microphone. It maintains a true cardioid pattern throughout its frequency range, ensuring high gain before feedback and rejection of off-axis sound. The tailored frequency response is ideal for lead vocals, backup vocals, and spoken word applications. A presence rise brightens mid-range performance, and a low frequency roll off controls proximity effect. The SM48 includes a shock-mounted cartridge, a steel mesh grille, and an integral "pop" filter.

Yorkville E12 Elite Series Loudspeakers:

• 1200 Watt Full Range Loudspeaker (600 Watts Program)
• 12-inch Woofer / 1-inch Compression Driver
• Max SPL 128dB Peak (131 dB Continuous)
• Designed for Front-of-House or Monitor applications
• 80° x 50° ABS Rotatable Custom Waveguide Horn
• Advanced PTC™ High Frequency Driver Protection
• 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
• Integrated All Metal Speaker Standmount Adaptor
• Solid 5/8-inch (15 mm) Birch Plywood Construction



Yamaha PX5 Stereo Power Amplifier:

• 2x 500W at 8Ω
• 2x 800W at 4Ω
• Newly developed Class-D amplifier engine with a custom LSI
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Yamaha Speaker presets
• Utlities for safe and secure operation



Rolls RM67 Mixer:

• Three XLR mic inputs with switchable phantom power and input padding
• Clip LEDs for each Mic input
• Mute jack, contact closure to ground main output mute
• Master Level control
• Remote Volume jack (connects to an optional 100K ohm potentiometer)
• Stereo Record Out
• Priority ducking/talk-over for microphone paging, and jukebox
• Mic Insert jack for adding signal processing to the Mic Inputs
• Four stereo RCA line/consumer level inputs
• Master Bass and Treble controls (sources only)



Audio Technica ATW-2120 Wireless Microphone System:

• Serious advances in affordable professional wireless
• Clear sound quality and rock-solid, dependable performance
• Automatic frequency scanning
• 10 compatible user-switchable channels in one of two UHF frequency ranges
• Antenna power available for powered antennas & other in-line RF devices
• True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
• Tone Lock™ tone squelch system fights interference
• Rugged metal half-rack receiver with soft-touch controls and LCD display
• Balanced XLR and unbalanced 1/4” output jacks enable use with a wide variety of audio gear
• Switchable transmitter power output with high and low settings offered
• Includes rack-mount kit and detachable UHF antennas
• Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver



Shure SM48S Vocal Microphone:

• Cardioid pickup pattern rejects off-axis sound and provides superior gain before feedback
• Frequency response tailored for vocals, with brightened mid-range and bass rolloff to control proximity effect
• Shock-mounted cartridge for exceptional ruggedness and reduced handling noise
• Built-in "pop" filter that reduces explosive breath sounds and wind noise
• Supplied stand adapter and carrying/storage bag
• Lockable On/Off switch (Model SM48S only)
• Legendary Shure quality and ruggedness

• (4) Yorkville E12 Elite Series Loudspeakers
• (1) Yamaha PX5 Power Amplifier
• (1) Rolls RM67 Mixer
• (1) Audio Technica ATW-2120 Wireless Microphone System
• (1) Shure SM48S Vocal Microphone

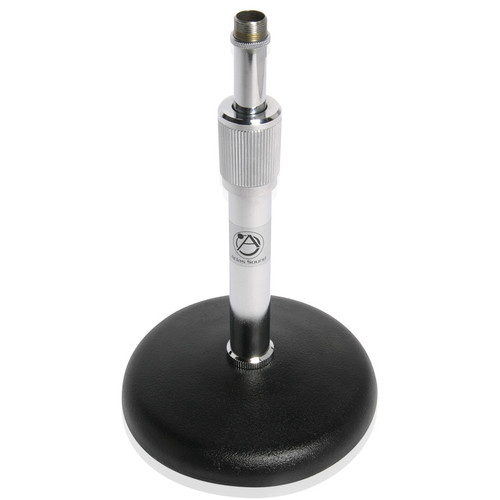

• (1) Atlas Sound DS 7 Desktop Mic Stand
