Indoor Arena PA System with 4 Yamaha Speakers, WiFi Mixer, Bluetooth Media Player, and Wireless Microphones

Inside the Design

This indoor arena audio system with four Yamaha C115VA 15" 1000W loudspeakers is composed of a Soundcraft Ui1 tablet/PC/smartphone controlled digital mixer with Wi-Fi, a Tascam CD-400U CD and media player with AM/FM receiver and Bluetooth as well as a wired mic and 2 wireless microphone systems. Deliver consistent high-performance sound ideal for crystal clear music and voice announcements over a large area with this sound system for hockey arenas, indoor soccer arenas, indoor riding arenas, indoor stadiums, and other indoor sports arenas.

Sound System Features:

• Yamaha C115VAs provide 90° x 40° of dispersion and excellent response for high-level music and vocals
• 16-channel remote controlled digital mixer with Wi-Fi capabilities allows you to use up to 10 control devices
• Bluetooth media player that plays USB, SD or CD and has built-in AM/FM tuner
• Wirelessly stream audio from any Bluetooth-enabled smartphone, tablet or other mobile devices
• Yamaha PX5 amplifiers provide exceptional performance and advanced processing
• Audio-Technica 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum - operating range of 300ft
• Ultra-clear microphone and desktop mic stand ideal for play-by-play announcers, judges and more

About the System Components

This Pro Acoustics designed arena PA system includes four Yamaha C115VA 15" 1000W professional loudspeakers, a Soundcraft Ui16 tablet/PC/smartphone controlled digital mixer with Wi-Fi, a Yamaha PX5 stereo power amplifier, a Tascam CD-400U CD and media player with integrated AM/FM receiver and Bluetooth, an ART PS4x4 power distribution system, an Audio-Technica ATW-3212/C510 wireless handheld microphone, an Audio-Technica ATW-3211/892x wireless black headworn microphone, a Pure Resonance Audio UC1S vocal microphone with On/Off switch, an Atlas Sound DS7E adjustable height desktop mic stand and 25’ mic cable. Other accessories include an Atlas Sound 312-15 12U wide opening wall rack cabinet, a Gator GRW-DRW3 3U locking rack drawer, a 3ft XLR patch cable and 500' of 12/2 black speaker wire.

Not sure if this is the right Stadium Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Yamaha C115VA 15" Flyable 2-Way 1000W Professional Loudspeakers:

• 15" cast frame woofer
• 2" pure titanium diaphragm
• 90 x 45 degree CD horn
• Integral pole socket for stand mounting
• Excellent for high-level music and vocals
• Comprehensive lineup for a variety of applications
• An ideal match for EMX Series powered mixers or P Series power amplifiers
• Top-class parts and optimized wood enclosures
• Classic design combines strength and sophistication
• Built-in protection
• A-type models for flying installation

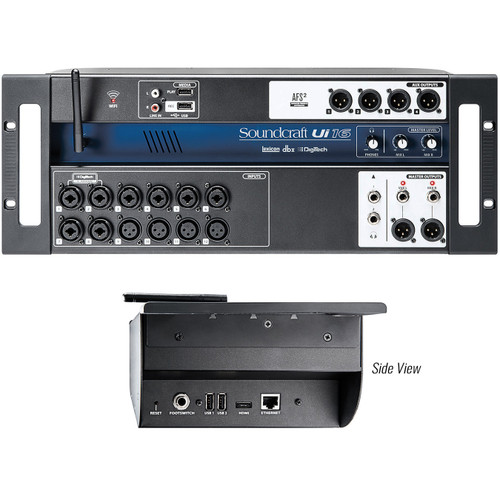

Soundcraft Ui16 Tablet/PC/Smartphone Controlled Digital Mixer with Wi-Fi:

• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
• Fully recallable and remote-controlled mic preamps
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
• Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• 2-channel USB audio playback and recording



Yamaha PX5 Stereo Power Amplifier:

• 2x 500W at 8Ω
• 2x 800W at 4Ω
• Newly developed Class-D amplifier engine with a custom LSI
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Yamaha Speaker presets
• Utlities for safe and secure operation

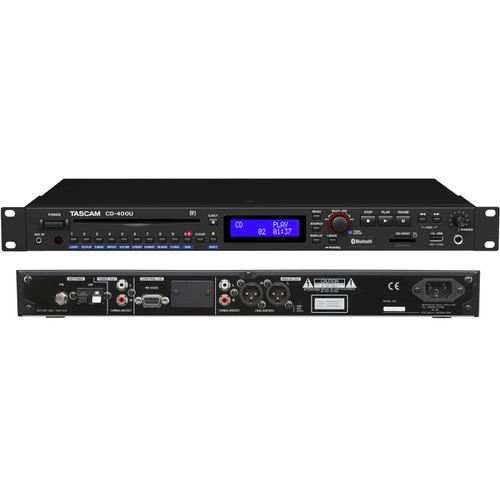

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

• CD/SD/USB/and FM/AM tuner realtime audio playback
• Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
• Outputs: XLR, RCA X 2, and headphone
• 1/8" audio input for playback from any external source
• "Power on Play" function starts audio playback automatically when powered on
• "Panel Lock" function disables buttons to avoid unauthorized operation or programming
• Real time recording from CD or FM/AM tuner to SD or USB media
• External control via RS-232C
• Control via ethernet with optional IF-E100 ethernet card is planned in the future

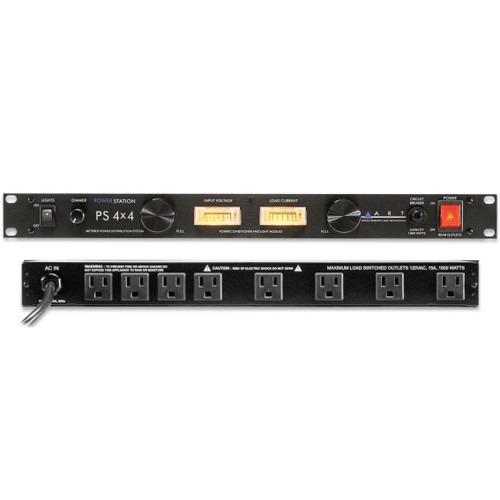

ART PS4x4 Power Distribution System:

• Backlit Linear input voltage meter
• Backlit Linear load current ammeter
• Surge and spike protection
• EFI and RFI filtering
• 2 front pull-out shock mounted light pipes
• Eight rear outlets
• 4" x 4" power distribution system
• 1800 watts capacity
• Front On/Off power switch
• Front On/Off light switch
• Designed for years of continuous, reliable performance
• Rugged All steel construction



Audio-Technica ATW-3212/C510 3000 Series Fourth Generation Wireless Microphone System with ATW-C510 Handheld Mic:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks



Audio-Technica ATW-3211/892x 3000 Series Fourth Generation Wireless Microphone System with BP892xcH Headworn Mic:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

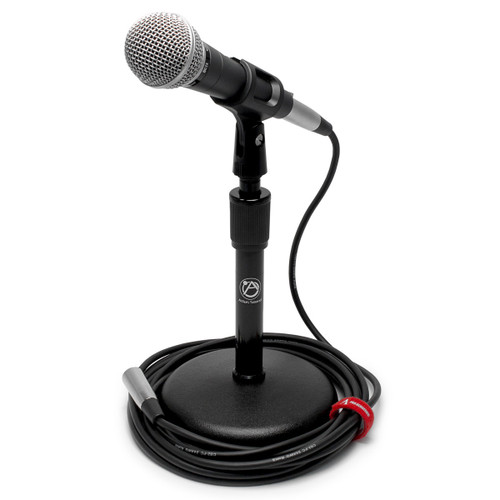

Pure Resonance Audio UC1S Dynamic Handheld Microphone:

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events

• (4) Yamaha C115VA 15" Flyable 2-Way 1000W Professional Loudspeakers
• (1) Soundcraft Ui16 Tablet/PC/Smartphone Controlled Digital Mixer with Wi-Fi
• (1) Yamaha PX5 Stereo Power Amplifier
• (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
• (1) ART PS4x4 Power Distribution System
• (1) Audio-Technica ATW-3212/C510 3000 Series Fourth Generation Wireless Microphone System with ATW-C510 Handheld Mic
• (1) Audio-Technica ATW-3211/892x 3000 Series Fourth Generation Wireless Microphone System with BP892xcH Headworn Mic - Black
• (1) Pure Resonance Audio UC1S Dynamic Handheld Microphone
• (1) Atlas Sound DS7E Adjustable Height Desktop Mic Stand

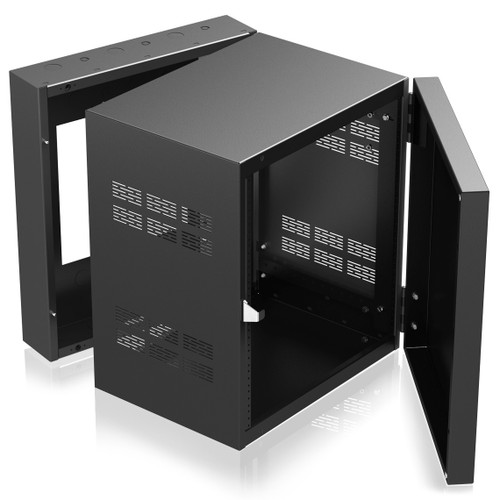

• (1) Atlas Sound 312-15 12RU Wide Opening Wall Rack Cabinet

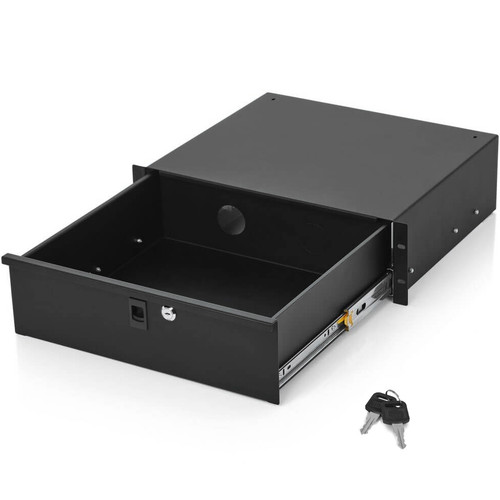

• (1) Gator GRW-DRW3 3U Lockable Rack Drawer

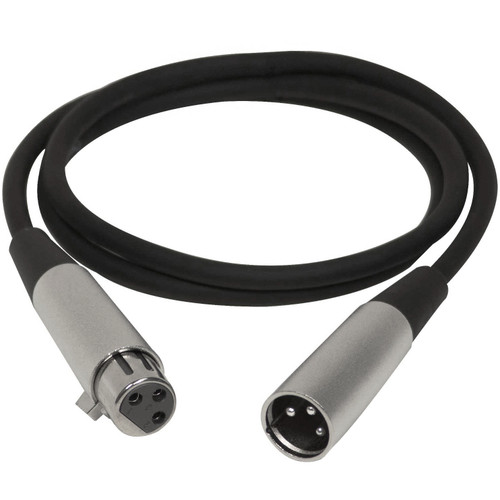

• (6) CBI MLN-3 XLR to XLR Patch Cables - 3ft
• (1) CBI MLN-25 XLR to XLR Cable - 25ft
• (500') West Penn 227 12/2 Audio Speaker Wire - Black
