JBL 8320 High Power 8" Cinema Surround Speakers - Pair
JBL 8320 High Power 8" Cinema Surround Speakers - Pair
JBL 8320 High Power 8" Cinema Surround Speakers - Pair
By JBL Professional

JBL 8320 High Power 8" Cinema Surround Speakers - Pair

Write a Review
Part #:
HPD8320
Model #:
HPD8320
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

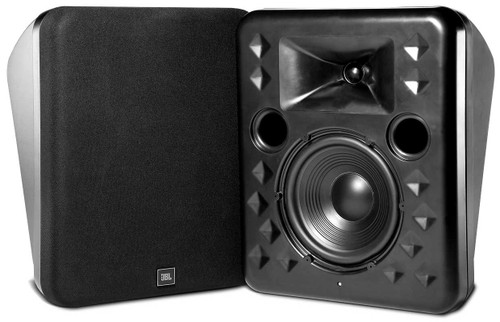

The JBL 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure.

Description

The two-way 8320's reliability and performance features position it as the ideal low cost, compact cinema surrond speaker system for extended dynamic range required by digital sound formats.

The 8320 features a high power, long-throw 8" (200 mm) low frequency driver for smooth, extended bass response. The high frequency section combines a 1" (25 mm) diameter soft dome driver with a constant coverage horn for very high output capability and wide, even high frequency coverage. The 150W continuous power rating (600W peak) provides extended dynamic range required for digital soundtracks with absolute reliability.

Its modern, molded black textured enclosure with black grille enhances any decor.

JBL’s QuickMount bracket allows one person to quickly and simply mount the very lightweight enclosure on a previously installed bracket half. Built to traditional JBL quality standards, the 8320 will stand up to long-term use under adverse conditions while delivering excellent performance.

Features
  • 50 Hz to 20 kHz Frequency Range
  • High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 150 watts continuous pink noise
  • Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure
  • Convenient mounting design uses JBL QuickMountTM, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved The 8320

Specifications
Frequency Range (-10 dB) 50 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz - 18 kHz
Power Rating 150 watts continuous pink noise 600 watts peak
Sensitivity (1W/1m) 94 dB-SPL half-space / wall-mounted 91 dB-SPL free-field
Maximum Peak SPL 122 dB/1m
Nominal Impedance 8 ohms
Hor. Coverage Angle (-6 dB) 100° averaged 400 Hz to 12 kHz
Vert. Coverage Angle (-6 dB) 90° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
Crossover Frequency 3 kHz
High Frequency Contour ISO2969 Curve X surround contour
Polarity EIA (Positive voltage to RED terminal gives forward cone motion)
Low Frequency Transducer Nominal Diameter 8" (200 mm) 1.5" (38 mm) voice coil
High Frequency Transducer Nominal Diameter 1" (25 mm) 1" (25 mm) voice coil
Downward Firing Angle Nominal 20° when mounted flush on back panel
Enclosure Material Textured Black H.I.P.S. Plastic
Grille Color Black
Input Connectors 5-way binding posts
Dimensions (H x W x D) 16" (406 mm) x 13.5" (343 mm) x 8.8" (224 mm)
Net Weight 11 lbs (5 kg)
