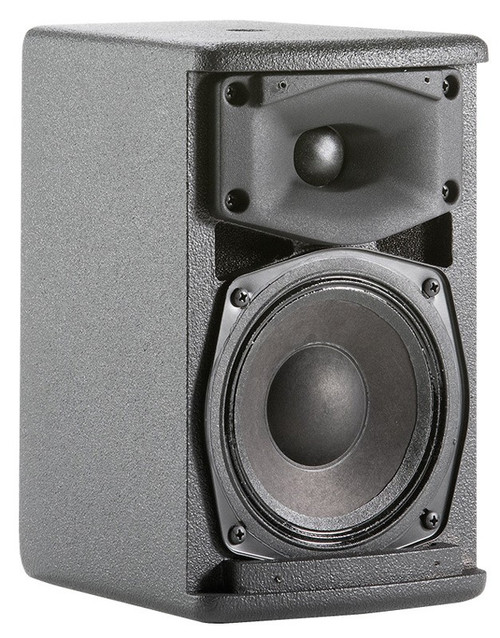

JBL AC15 Ultra Compact 2-Way Loudspeaker with 1 x 5.25" LF
The AC15 is an ultra-compact full range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area.
The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilizes a 5.25" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.
The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket. The rugged plywood enclosure features JBL’s textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.
JBL AE Series Compact Loudspeakers - An extension of the industry leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker systems designed specifically to better serve the needs of designers and artists alike.
The ultra-compact AC15 and AC25 models include a 1" dome tweeter while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28 featuring JBL's Progressive Transition™ rotatable waveguides, offer the system designer a choice of coverage patterns of either 90° x 50° or 120° x 60° configurations allowing for both vertical and horizontal orientation of the loudspeaker enclosure.
| Frequency Range (-10 dB) | 80 Hz -20 kHz |
|---|---|
| Frequency Response (±3 dB) | 90 Hz -18 kHz |
| System Power Rating | 225W (AES rated) 150W / 300W / 600W (Continuous/Program/Peak) (IEC rated) |
| Impedance | 16 ohms |
| Coverage Pattern | 90° x 90° |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 108 dB |
| System Sensitivity (1w @ 1m) | 86 dB SPL |
| Nominal Section Impedances | 16 ohms |
| LF Driver | 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil |
| HF Driver | 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter |
| Enclosure | 12 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
| Dimensions (H x W x D) | 9.5" (241.3 mm) x 5.9" (150.3 mm) x 7" (177.8 mm) |
| Weight | 10.5 lbs (4.7 kg) |
