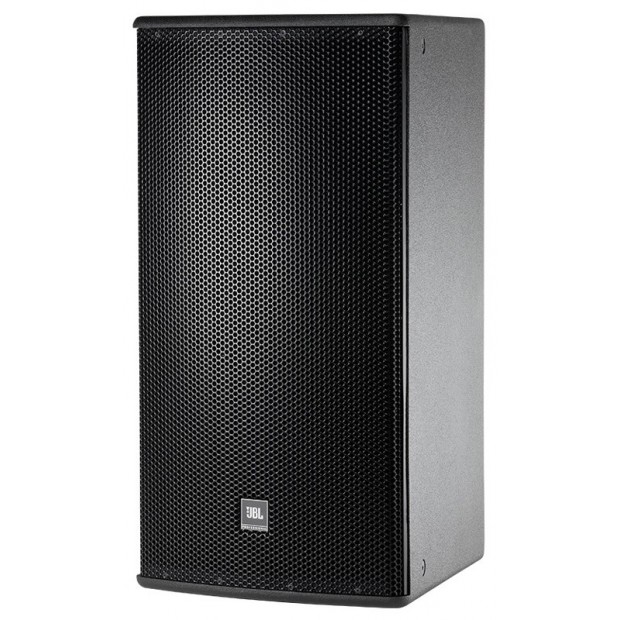

JBL AM5215/95 15 Inch Loudspeaker with 90° x 50° Coverage

Name: JBL AM5215/95 15 Inch Loudspeaker with 90° x 50° Coverage
Brand: JBL Professional
SKU: JBL-AM5215/95
Price: 2650 USD
Availability: InStock

Write a Review

Part #:

AM5215/95

Model #:

AM5215/95

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The JBL AM5215/95 is a medium power, lightweight, 2-way, full-range loudspeaker intended for a wide variety of applications.

Description

The large format PT Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

The enclosure is constructed of multiply birch coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

The AM5215/95 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

90° x 50° Coverage
265H-1 Differential Drive Low-Frequency Driver
2408H-1 High-Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX weather resistant finishes

Specifications

Frequency Range (-10 dB)	35 Hz – 20 kHz
Frequency Response (±3 dB)	41 Hz – 18 kHz
Coverage Pattern	90° x 50°, rotatable waveguide
Directivity Factor (Q)	11.6
Directivity Index (DI)	10.6 dB
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.8 kHz
Transducer Power Rating (AES)	LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
Long-Term System Power Rating (IEC)	Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL (Bi-amp)	LF: 125 dB-SPL cont avg (131 dB peak) HF: 129 dB-SPL cont avg (135 dB peak)
Maximum SPL (Passive)	124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1W @ 1m)	Passive mode: 98 dB SPL
Low Frequency Driver	1 x JBL 265H-1 380 mm (15 in ) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance	8 ohms
Sensitivity (1W @ 1m, within operational band)	99 dB SPL
High Frequency Driver	JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Nominal Impedance	8 ohms
Sensitivity (1W @ 1m)	113 dB SPL
Waveguide	PT-H95HF-1
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D)	30.8" (782 mm) x 16.6" (422 mm) x 19.85" (504 mm)
Net Weight	55 lbs (25 kg)
