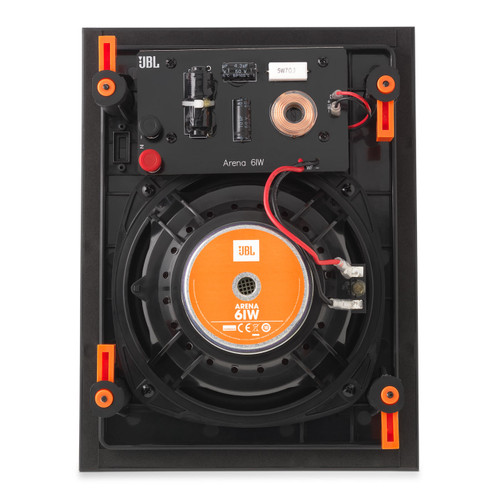

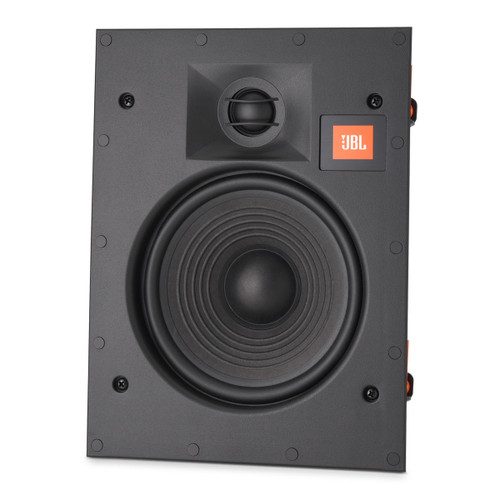

JBL Arena 6IW 6.5" In-Wall Loudspeaker
Description
The JBL Arena 6IW woofer is part of the JBL Arena architectural series. Floor to ceiling, JBL Arena architectural series speakers are engineered for full sound dispersion to fill the room – no matter where installed. Specially designed with a nearly invisible zero-bezel, fully paintable magnetic grille, the JBL Arena speakers blend into any home environment. The JBL proprietary HDI waveguide allows the loudspeaker to fill the room in cinema-quality, full-immersion sound from any location – even high elevations or off-axis listening locations. The JBL Arena is ready for integration into any home audio or theater system, with a sturdy, reliable design including a XL-2 bracket suitable for mounting in any wall or ceiling up to 2" thick. Expertly designed, the series is matched to the award winning JBL Arena component speakers for a complete home audio experience. It will leave you wondering how such spectacular sound seems to come out of nowhere.
Features
- Sound Inspired by JBL’s legendary M2 Master Reference Monitor
- Paintable, nearly invisible zero-bezel magnetic grille
- Superior XL-2 installation bracket
- Pivoting tweeters
- Tweeter audio level adjustment
Specifications
| Impedance | 8 ohms |
|---|---|
| Recommended Amplifier Power | 80W |
| Frequency Response | 38Hz - 20kHz |
| Loudspeaker Sensitivity | 86dB 2.83V @ 1m |
| LF Driver Size and Material | 6.5" (165 mm) Polyplas® Woofer |
| HF Driver Size and Material | 1" (25 mm) Pivoting CMMD® Lite Tweeter |
| High Frequency Control | +/- 3dB |
| Compatible Wall Material Thickness | 0.5" – 2" (12 mm – 51 mm) |
| Shipping Units of Measure | Each |
| Pre-Construction Bracket Part number | PCK6 |
| Back Box Part Number | FBB6 |
| Mounting Depth | 3.59" (91 mm) |
| Cutout Dimensions (H x W) | 9.69" (249 mm) x 7.28" (185 mm) |
| Grille Finished Dimensions (H x W) | 10.88" (276 mm) x 8.34" (212 mm) |
DOCUMENTS
In The Box
- Arena 6IW Speaker
- Magnetic Grille
- Owner’s Manual
- Printed Mounting Template
- Warranty Card
