The JBL AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/ paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
The AWC62 is comprised of a high-power coaxial 165 mm (6.5 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered pole-piece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 110° coverage on a broadband basis.
Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature voice coil and a reduced distortion design through saturated-gap magnet geometry.
The paintable enclosure is constructed of thick, ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.

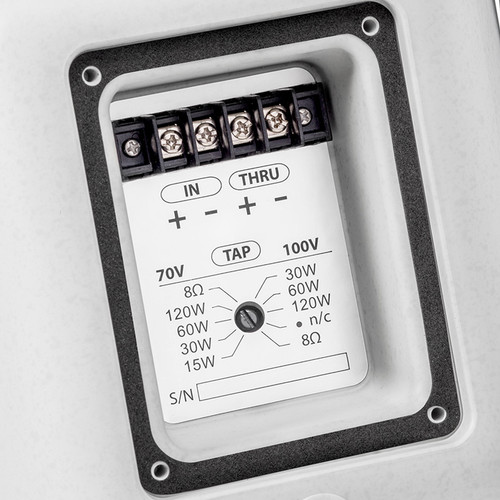

The system is equipped with a 120W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having outside diameter between 4 mm (0.16 in) and 9 mm (0.36 in).
A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.
| Frequency Range (-10 dB) | 70 Hz – 18 kHz |
|---|---|
| Frequency Response (±3 dB) | 100 Hz – 16 kHz |
| Coverage Pattern | 110º x 110º |
| Directivity Factor | 7.2 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.9 dB (1 k – 16 kHz) |
| Long-Term System Power | 175W 2 hrs. |
| Rating (IEC) | 120W 100 hrs |
| Sensitivity (2.83V @ 1m) | 92 dB (Ave. 100 Hz – 18 kHz) |
| Maximum SPL | Direct 8Ω: 114 dB (peaks of 120 dB) 120W Tap: 112 dB |
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W |
| Low Frequency Driver | Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil |
| High Frequency Driver | 25 mm (1 in) diaphragm and voice coil diameter |
| Colors | Available in gray (similar to Pantone 420C) and black (-BK) |
| Included Accessories | U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel |
| Dimensions (H x W x D) | 11.8" (300 mm) x 11.8" (300 mm) x 12" (305 mm) |
| Net Weight | 15 lbs (6.8 kg, 17 lbs (7.7 kg) with U-bracket |
| Shipping Weight | 19.5 lbs (8.8 kg) |
