Line Array Column Loudspeaker with Eight 2" Drivers and EN54:24 Certification

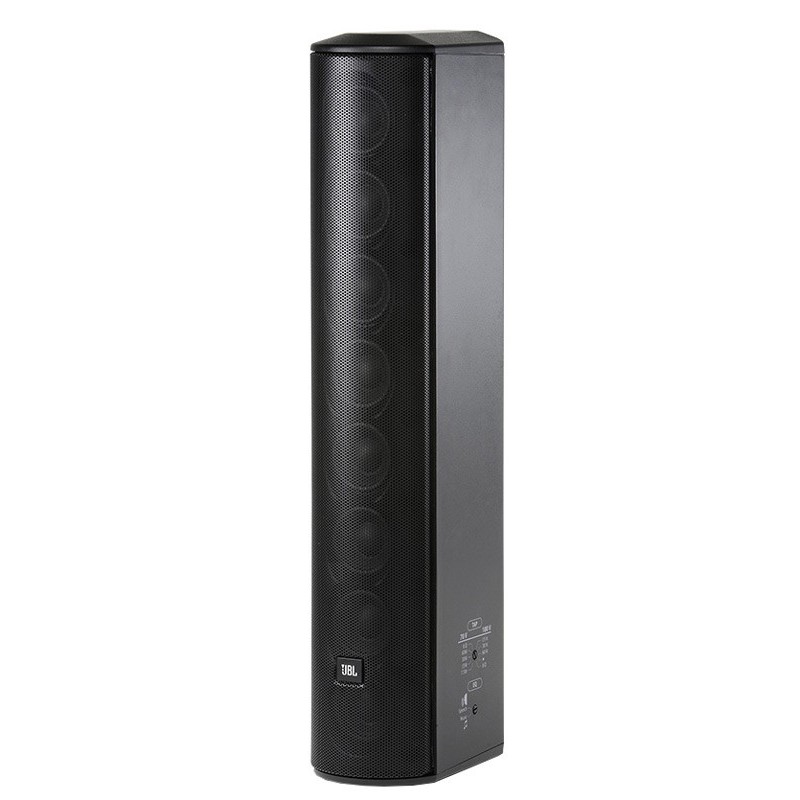

The JBL CBT 50LA-LS is a very compact 50 cm high column that utilizes a straight line of eight 2-inch drivers. It contains low-saturation transformers, so it can be used on 70V/100V distributed speaker lines or as low impedance speakers.
JBL’s CBT Series column loudspeakers were the first loudspeakers to incorporate JBL’s newly introduced and patented Constant Beamwidth Technology, using passive beam-forming components to deliver a narrow vertical beamwidth and constant directivity coverage from a passive column, resulting in high intelligibility in difficult acoustical venues and consistent frequency response at every listener location.
In addition, the CBT speakers provide Dynamic SonicGuard overload protection circuitry, which reduces distortion at high drive levels, along with user variable voicing which allows for selecting a flat frequency response or a midrange presence peak for, especially clear speech intelligibility.
| Components | Eight 50 mm (2 in) full-range drivers |
|---|---|
| Frequency Range (-10 dB) | 120 Hz – 20 kHz |
| Coverage Pattern | Vertical 20° (1.5 kHz - 16 kHz, ±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°) |
| Sensitivity (2.83V@ 1m) | 93 dB (speech mode, 2 kHz - 14 kHz) 89 dB (music mode, 300 Hz - 18 kHz) |
| Nominal Impedance | 8 ohms |
| Power Capacity (8 ohm setting) | 150W (600W peak), 2 hrs 100 W (400W peak), 100 hrs |
| Max SPL | Speech mode: 115 dB cont ave (121 peak) Music mode: 111 dB cont ave (117 peak) |

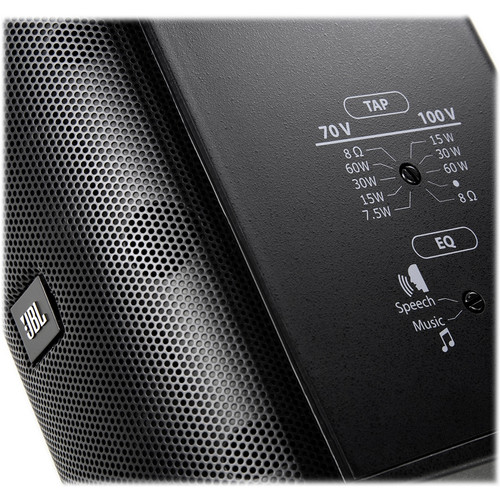

| 70V/100V Transformer Taps | 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant |
| Insert Points | Ten M6 insert points on back panel |
| Mounting | Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension |
| Safety Agency Rating | EN54-24:2008 certified (Certificate No. 0359-CPR-00238), when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of IEC60849/EN60849 |
| Included Accessories | Swivel (pan) / tilt wall bracket MTC-PC2 terminal panel cover |
| Optional Accessories | MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |
| Dimensions (H x W x D) | 20.8" (528 mm) x 3.9" (99 mm) x 6" (153 mm) |
| Net Weight | 9 lbs (4.1 kg) |
