The JBL COL800 is an elegant 32-inch (800 mm) slim column loudspeaker that provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt to the aim, providing optimum coverage of most listening areas while allowing the speaker to be installed flat to the wall. The slim, compact design—winner of international design awards for industrial design excellence—complements virtually any architectural décor.
A combination of stylish design and outstanding performance features makes the COL800 ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.
Four 5-inch x 2.25-inch racetrack woofers provide maximum radiating area in a column form factor. Dual tweeters are located at top of the array for less obstructed coverage of the listening space, and they are aimed at a 10° down angle, allowing down-tilted coverage aim, even with the cabinet flat to the wall. The shallow cabinet depth of 3.7 inches (93 mm) qualifies for ADA (Americans with Disabilities Act) projects when installed with the back of the cabinet flush to the wall.
A 60-watt multi-tap transformer allows for use on either 70V or 100V distributed speaker lines, while the speaker is switchable for direct 8-ohm operation with power handling of 150W continuous (600W peak, 2 hrs). The 85 Hz to 20 kHz frequency range delivers clean, clear sound for music or speech.

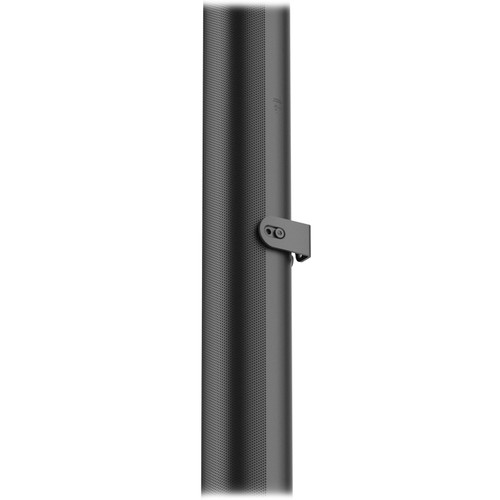

Versatile installation is accommodated by two included L-brackets, which can be installed on either the top and bottom panels (for horizontal pan aiming) or on the left and right side panels. Both locations allow for close-to-the-wall installation. In addition, a low-profile swivel (pan) / tilt wall bracket is also included, for adding up to 10° down-tilt to the cabinet aiming (in addition to the built-in 10° down-tilt aim when the speaker is installed flat to the wall).
The COL800 has an IP54 rating (per IEC60529) for protection against ingress of dust or water. The drivers are water-treated, the grille has a water-backing, and a cover is included to protect the input terminals.
| Drivers | Four 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers Two 20 mm (0.8 in.) tweeters (tweeters located at top of array for better coverage of listening space) |
|---|---|
| Frequency Range (-10 dB) | 85 Hz – 20 kHz |
| Frequency Response (+/-3 dB) | 125 Hz – 18 kHz |
| Nominal Impedance | 8Ω (in Thru/direct mode) |
| Power Rating (8Ω Setting) | 300W Continuous Program (2 hrs) 150W (600W peak) Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity (2.83V @ 1m) | 88 dB |
| Coverage Pattern | Vertical 60° (1 kHz-4 kHz average); 10° down-tilt to vertical aiming axis for +20°/-40° coverage in relation to physical cabinet aim Horizontal 160° (1 kHz – 4 kHz average) |
| Rated Maximum SPL | 110 dB Continuous (116 dB peak) @ 1m |
| Transformer Taps | 60W, 30W, 15W @ both 70V & 100V (plus 7.5W @ 70V), and 8Ω thru, selectable via switch |
| Environmental Rating | IP-54 rated per IEC60529, dust and water protected when installed with included cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. (Cycle 1 per ISO 4892.3-2006) |
| Dimensions (H x W x D) | 31.5" (800 mm) x 4" (102 mm) x 3.7" (93 mm) |
| Net Weight | 11.5 lbs (5.2 kg) |
| Shipping Weight | 14 lbs (6.4 kg) |
