B-Stock. Authorized JBL Dealer. Factory-renewed performance and value. Returns are thoroughly inspected and tested to meet strict factory standards. Documentation and Packaging as new product.

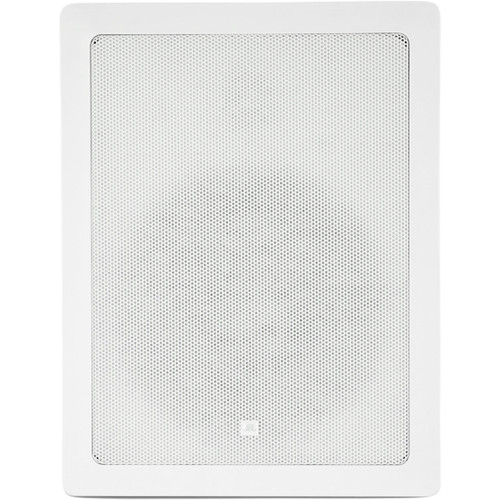

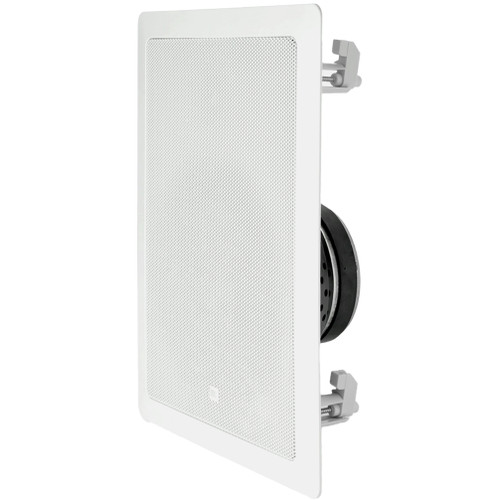

The Control 128WT is an 8" two-way in-wall installation speaker with a 70V/100V transformer for use on distributed loudspeaker lines. This premium in-wall speaker is designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

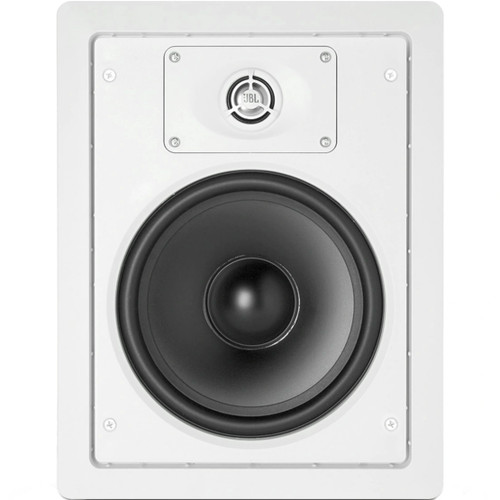

The high-performance 8" woofer features a polymer-coated aluminum cone with pure butyl rubber surround. The 1" pure titanium dome tweeter is mounted on a low-diffraction swivel-mounting system enabling the user to direct high frequencies where required without the diffraction distortion inherent in other aimable tweeter designs.
| Frequency Range (-10 dB) | 30 Hz - 20 kHz |
|---|---|
| Continuous Power Capacity | 240 Watts Peak, 120 Watts Continuous Program, 60 Watts Continuous Pink Noise |
| Sensitivity | 90 dB SPL, 1W, 1 m (3.3 ft) |
| Transformer Taps | 70V: 50W, 25W, 12W & 6W taps, rubber surround for long-life and high 100V: 50W, 25W, & 12W taps |
| Low-Frequency | 8" polymer-coated aluminum cone, pure butyl rubber surround |
| High-Frequency | 1" pure-titanium dome with cloth suspension on swivel-mount with -10 degree aimability |
| Termination | Screw-down Euroblock-type connector. Max. wire size 14 AWG (1.5 mm) |
| Crossover Network | 2nd order low-pass to the woofer and 2nd order high-pass to the tweeter |
| Optimum Air Cavity Behind Speaker | 40 to 80 liters (1.4 to 2.8 cu ft) |
| Maximum Wall Thickness | 1.25" (32 mm) |
| Included Accessories | Cutout template & paint shield |
| Optional Accessories | MTC-128RIF Rough-In Frame for new construction installation to wallstuds |
| Cutout Size (H x W) | 11.9" (300 mm) x 8.9" (225 mm) |
| Dimensions (H x W x D) | 13.1" (334 mm) x 10.1" (257 mm) x 4.3" (110 mm) |
| Net Weight (ea) | 7.2 lbs (3.3 kg) |
| Shipping Weight (pair) | 17.2 lbs (7.8 kg) |
