- Description
Details

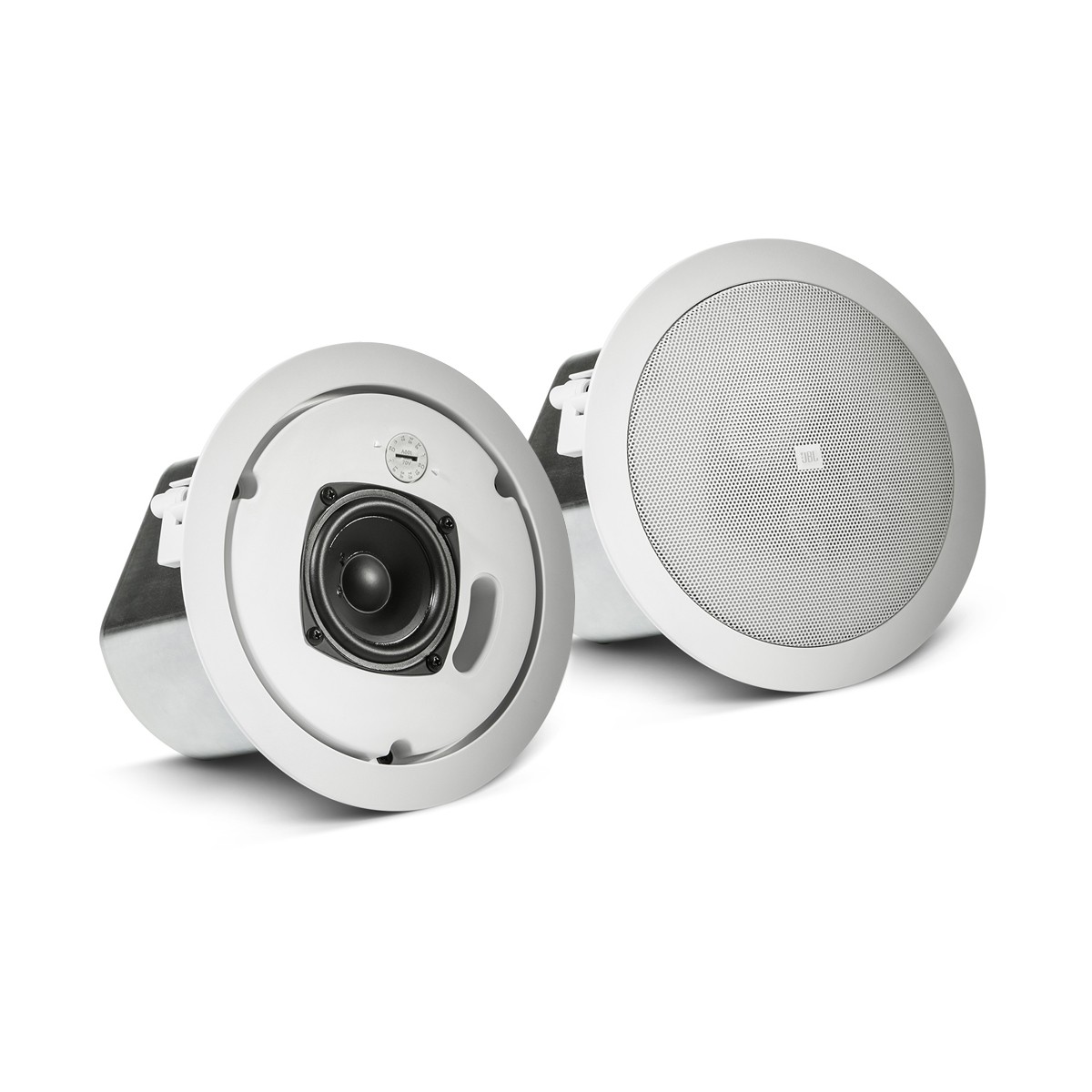

The Control 12C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 3 inch (76 mm) full-range driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a preattached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as background music, cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis.
- Features
Features
- 3" (76 mm) high output driver with polypropylene cone and butyl rubber surround
- EN54-24 Compliant
- Blind-mount backcan for quick and easy install
- Combined 70V/100V and low impedance direct operation
- 68 Hz – 17 kHz bandwidth with wide 130° coverage
- Specification
System Frequency Range (-10 dB) 68 Hz – 17 kHz Frequency Response (±3 dB) 95 Hz – 15 kHz Power Capacity (at low-Z) 40 Watts Continuous Program Power
20 Watts Continuous Pink NoiseRated Noise Power 15W (15W tap) Rated Noise Voltage 70V/100V (with 70V/100V tap settings) Nominal Sensitivity 84 dB: 8 ohm tap EN54 Sensitivity (@ 4m) 72 dB (per EN54-24 spectrum and measurement conditions at 4 meters) Coverage Pattern 130° conical coverage (1 kHz - 16 kHz) Coverage Angles (by Frequency)
Conical (Vertical & Horizontal)500 Hz: 180°
1000 Hz: 175°
2000 Hz: 170°
4000 Hz: 160°Reference Axis Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane Directivity Factor (Q) 9.8 Directivity Index (DI) 7.4 dB Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak EN54 Max SPL (@ 4m) 84 dB (per EN54-24 spectrum and measurement conditions, 15W tap, at 4 meters) Nominal Impedance 8 ohms (in direct/bypass 8Ω setting)
1.9W@70V; 3.8W@100V Tap: 2667Ω
3.8W@70V; 7.5W@100V Tap: 1333Ω
7.5W@70V; 15W@100V Tap: 667Ω
15W@70V; N/C@100V Tap: 333ΩTransformer Taps 15W, 7.5W, 3.8W @ 70V or 100V (plus 1.9W @ 70V only) Fuse Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC Physical Driver 3 inch (76 mm) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil Connections Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (0.126"/3.2 mm opening), accommodates 2.5 sq mm / 12 AWG wire Gland Nut/Strain Reliefs Accommodates round jacketed cables 0.16" (4.0 mm) through 0.36" (9.0 mm) Materials ABS Baffle with UL94-V0 and UL94-5VB Flame Class Fire Rating. Zinc-platedSteel Backcan Safety Agency EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems Safety Seismic Attachment One point, top surface Dimensions From back of baffle to back of gland nut 6.9" (174 mm) Diameter 7.7" (196 mm) Ceiling Cutout Size Circular Cutout with 6.7" (170 mm) Diameter (Cardboard Cutout Template Included) Ceiling Thickness Range Up to 1.4" (35 mm) with stock dog-ears. MTC-TCD thickceiling dog-ears available up to 2.2" (55 mm) ceiling thickness Weights Net Weight (ea) 3.5 lbs (2.2 kg) Shipping Weight (pair) 14.7 lbs (8.2 kg) - Documents
Documents
- In The Box
In The Box
- (2) C-Ring Support Backing Plate
- (4) Tile Support Rails
- (2) Cutout Template
- (2) Paint Shield
- (2) Grille
