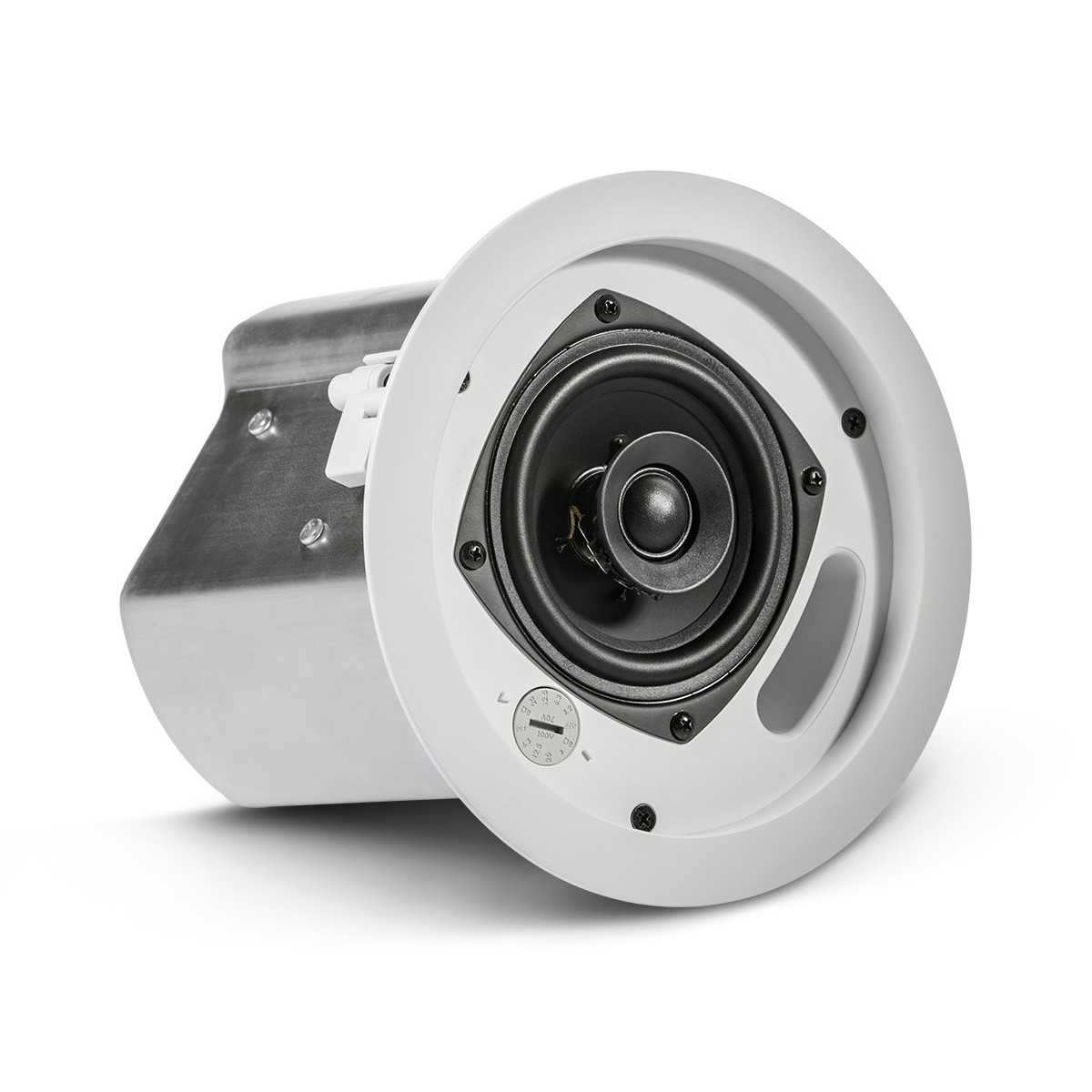

Control 14C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm softdome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/ waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis.
- Features
Features
- 4" (100 mm) high output driver with polypropylene cone and butyl rubber surround
- 0.75" (19 mm) soft-dome liquid-cooled tweeter
- EN54-24 Compliant
- Blind-mount backcan for quick and easy install
- Combined 70V/100V and low impedance direct operation
- 74 Hz – 20 kHz bandwidth with wide 120° coverage
- Specification
System Frequency Range (-10 dB) 74 Hz – 20 kHz Frequency Response (±3 dB) 100 Hz – 15 kHz Power Capacity (at low-Z) 60 Watts Continuous Program Power
30 Watts Continuous Pink NoiseRated Noise Power 25W (25W tap) Rated Noise Voltage 70V/100V (with 70V/100V tap settings) Nominal Sensitivity 87 dB: 8 ohm tap EN54 Sensitivity (@ 4m) 75 dB (per EN54-24 spectrum and measurement conditions at 4 meters) Coverage Pattern 120° conical coverage (1 kHz - 16 kHz) Coverage Angles (by Frequency)
Conical (Vertical & Horizontal)500 Hz: 175°
1000 Hz: 170°
2000 Hz: 150°
4000 Hz: 89°Reference Axis Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane Directivity Factor (Q) 7.6 Directivity Index (DI) 8.1 dB Rated Maximum SPL 102 dB @ 1 m (3.3 ft) average, 108 dB peak EN54 Max SPL (@ 4m) 87 dB (per EN54-24 spectrum and measurement conditions, 25W tap, at 4 meters) Nominal Impedance 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms
(based on min Z of 5.7 ohms at 11.2 kHz)
3.2W@70V; 6.3W@100V Tap: 1600Ω
6.3W@70V; 12.5W@100V Tap: 800Ω
12.5W@70V; 25W@100V Tap: 400Ω
25W@70V; N/C@100V Tap: 200ΩTransformer Taps 25W, 12.5W, 6.3W @ 70V or 100V (plus 3.2W @ 70V only) Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver Fuse Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC LF Driver 6.5" (165 mm) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil HF Driver .75" (19 mm), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide Physical Connections Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (0.126"/3.2 mm opening), accommodates 2.5 sq mm / 12 AWG wire Gland Nut/Strain Reliefs Accommodates round jacketed cables 0.16" (4.0 mm) through 0.36" (9.0 mm) Materials ABS Baffle with UL94-V0 and UL94-5VB Flame Class Fire Rating. Zinc-platedSteel Backcan. Safety Agency EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems Safety Seismic Attachment One point, top surface Dimensions From back of baffle to back of gland nut 7.7" (217 mm) Diameter 10" (253 mm) Ceiling Cutout Size Circular Cutout with 6.7" (170 mm) Diameter (Cardboard Cutout Template Included) Ceiling Thickness Range Up to 1.3" (35 mm) with stock dog-ears. MTC-TCD thickceiling dog-ears available up to 2.2" (55 mm) ceiling thickness Weights Net Weight (ea) 4.8 lbs (2.2 kg) Shipping Weight (pair) 17.9 lbs (8.2 kg) - Documents
Documents
- In The Box
In The Box
- (2) C-ring support backing plate
- (4) Tile support rails
- (2) Cutout template
- (2) Paint shield
- (2) Grille
