The Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceiling-mount applications. Delivering exceptional next-generation performance in a medium format coaxial point source design, the Control 227C and CT incorporate breakthrough performance features such as best-in-class pattern control to provide a consistent sound throughout the listening area. Especially wide coverage allows fewer speakers to cover the space, reducing both the material and labor costs for the installation.

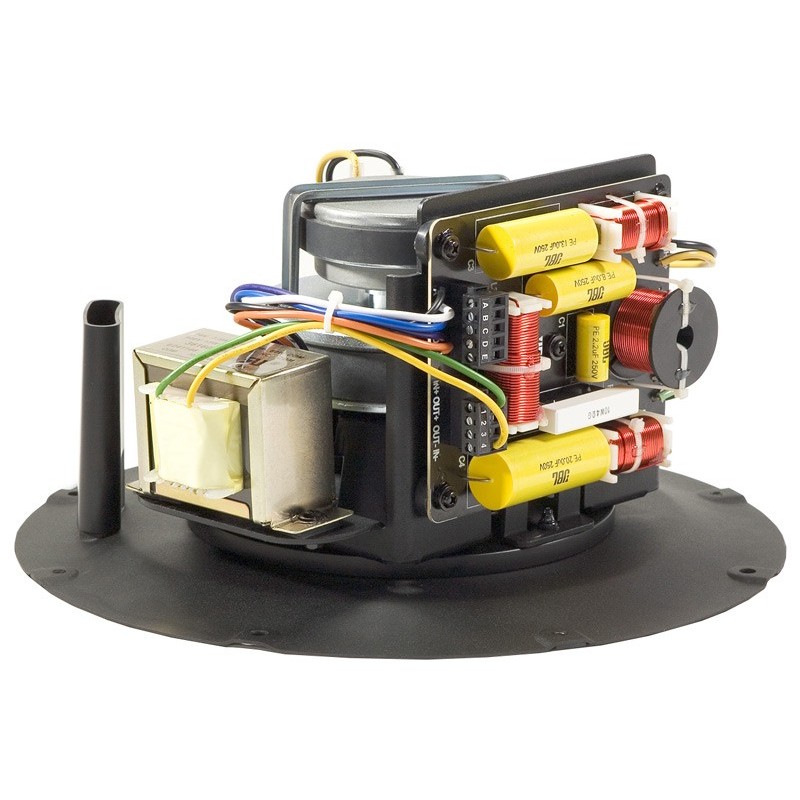

The Control 227C and CT feature a 165 mm (6.5 in) Kevlar-reinforced low-frequency driver coupled with a 25 mm (1 in) exit titanium compression driver for enduring reliability and outstanding performance. An 8 ohm driver is utilized on the Control 227C and offers 150 Watts of continuous power handling capability, while a top-quality, low saturation 60 Watt multi-tap transformer comes pre-attached on the Control 227CT, enabling the system to be used on 70V or 100V distributed speaker lines.
The Control 227C and CT are easy to install and feature a removable multi-pin locking connector, with secure screw-down terminals. This allows for pre-wiring the input wires for easy clip-on convenience during installation. The optional MTC-200BB6 14 cubic liter (0.5 cubic foot) back can is made of extra-thick 16 gauge steel, and the top is lined with 1/2" medium density fiberboard.
The clean, contemporary look of the MTC-RG6/8 grille for the Control 227C and CT is designed to suit a variety of settings, offering a simple, elegant appearance that fits into a wide variety of decors.
| Frequency Range (-10 dB) | 43 Hz - 19 kHz |
|---|---|
| Frequency Response (±3 dB) | 75 Hz - 17 kHz |
| Coverage Pattern | 120° conical, broadband |
| Directivity Factor (Q) | 7 (1 k - 16 kHz) |
| Directivity Index (DI) | 8.5 dB (1 k - 16 kHz) |
| Long-Term System Power Rating, IEC | 150 W (600 W peak), 2 hrs; 100 W (400 W peak), 100 hrs |
| Nominal Sensitivity | 90 dB measured half-space 95 dB computed for competitive comparison |
| Maximum SPL | 112 dB continuous average (118 dB peak) |

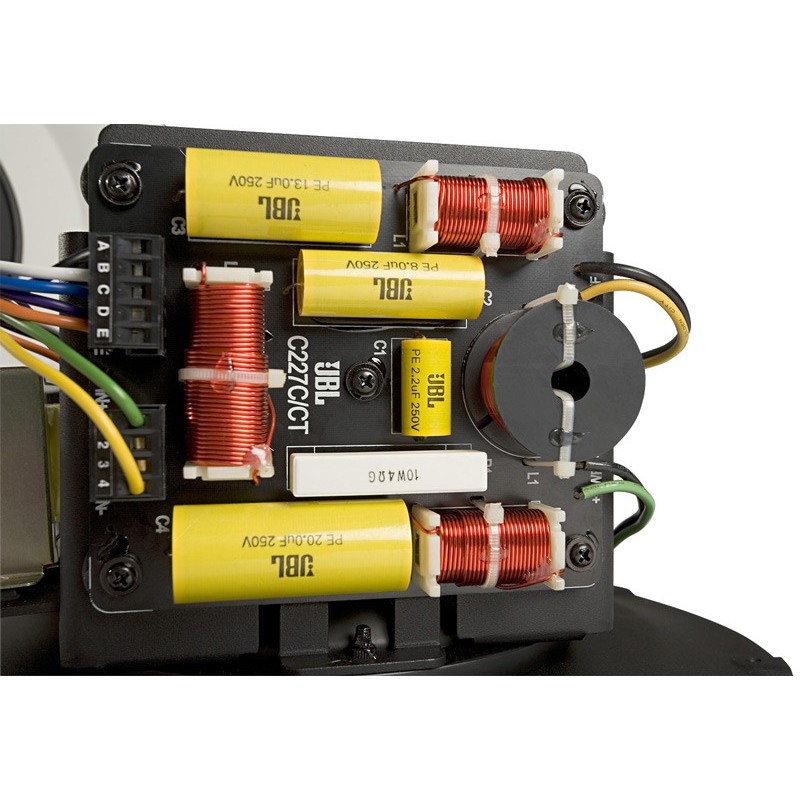

| Crossover Network | 2.2 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF |
| Nominal Impedance (bypass mode) | 8 ohms |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W & 15 W |
| Low Frequency Driver | 165 mm (6.5 in) Kevlar reinforced cone |
| High Frequency Driver | 25 mm (1 in) exit compression driver |
| Tap Connection | A) Common B) 7.5W @ 70V, 15W @ 100V C) 15W@70V, 30W@100V D) 30W@70V, 60W@100VE) 60 W @ 70V, n/c @ 100V |
| Safety Agency Rating | In accordance with IEC60849 / EN60849. Transformer UL Listed per UL1876 |
| Baffle | Metal, round 305 mm (12.0 in), driver premounted to baffle, ported |
| Baffle Attachment to MTC-200BB6 Backbox | 10 x 19 mm (0.75 in) sheet metal screws |
| Grille Attachement to Baffle | 4 pcs 4 mm machine screws |
| Included Accessories | Ported baffle pre-attached, transformer on 227CT |
| Optional Accessories | MTC-200B6 Back Can MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge |
| Dimensions (H x Dia) | Ø 12" (305 mm) round baffle x depth from back of baffle of 5.8" (147 mm) |
| Net Weight | 11.5 lbs (5.2 kg) |
| Shipping Weight | 14.5 lbs (6.6 kg) |
