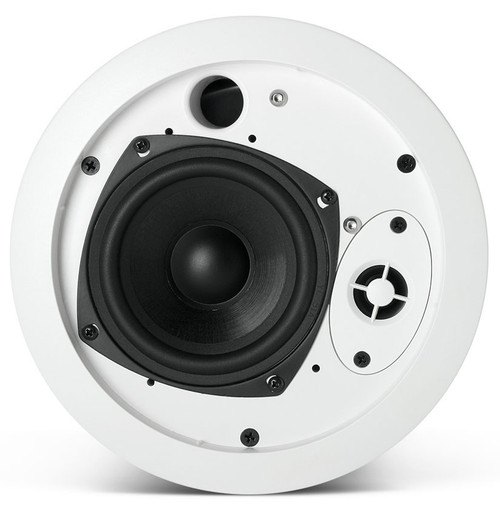

The Control 24C Micro is a 4" two-way in-ceiling speaker that is ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. The Control 24C Micro's low distortion and smooth, natural frequency response make it perfect for medium volume business music systems as well as for the medium to low SPL segments of larger or louder systems.
Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers can, in many systems, allow for mixing and matching of models within zones without requiring separate equalization.
Installation of the Control 24C Micro is quick and easy. The loudspeaker is packaged with the backcan, grille, support backing bracket and tile rails. In addition, optional new construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling. A template is provided for marking the cutout. An innovative C-shaped support backing plate can be installed from below through the cutout to reinforce the top of the ceiling material. Tile bridge rails are included which can be screwed onto the C-plate to extend support to the T-channel grid in suspended ceiling installations. After the speaker is fitted through the cutout, it is held securely in place via mounting tabs which tighten onto the C-plate, if used, or directly onto the ceiling material.
| Frequency Range | 85 Hz - 25 kHz |
|---|---|
| Power Capacity | 30 Watts Continuous Program Power (C24C Micro); 15 Watts Continuous Pink Noise (C24C Micro) |
| Nominal Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Crossover Frequency | 3.5 kHz |
| Rated Maximum SPL | 98 dB @ 1 m (3.3 ft) |
| Low Frequency | 4.5" IMG (injection molded graphite), 1" voice coil |
| High-Frequency | 0.5" polycarbonate |
| Backcan | Formed steel |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-O Secondary Attachment Point: Included |
| Termination | Screw-down terminals, touch-proof, UL, CE and VDE rated,outside of backcan |
| Included Accessories | C-shaped support backing plate2 tile support rails Cutout template, cardboard |
| Cutout Size | 6.6" (167 mm) |
| Dimensions (H x Dia) | 4.2" (106 mm) x 7.7" (195 mm) 4.1" (105 mm) front of ceiling tile to back of the backcan |
| Net Weight (ea) | 3.6 lbs (1.6 kg) |
| Shipping Weight (pair) | 7.9 lbs (3.6 kg) |
