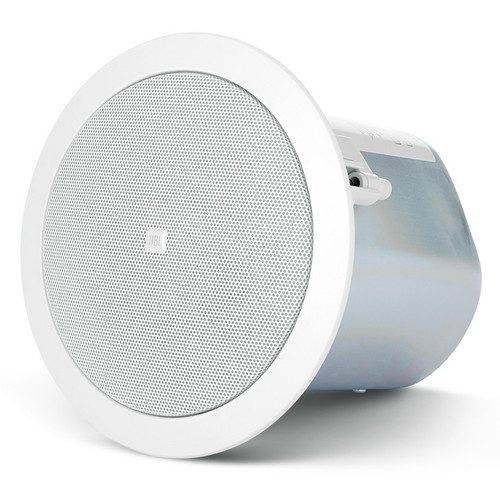

JBL Control 24CT 4" 2-Way Ceiling Speaker - Pair

Part #:
CONTROL 24CT
Model #:
Control 24CT-PAIR
Availability: Discontinued - Limited Stock Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The JBL Control 24CT 4" Two-Way Ceiling Speaker provides premium performance in background, foreground and music-plus-paging sound systems.

Description

The JBL Control 24CT is a 4" two-way compact ceiling speaker that is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

The Control 24CT includes a multi-tap transformer for 70V/100V systems. The computer-optimized ported enclosure delivers warm, smooth bass response. Low frequency output can be further augmented with the addition of one of the Control Contractor subwoofer models.

The 4" woofer features a polypropylene-coated cone and pure butyl rubber surround for long life, even in high humidity environments. An aluminum voice coil former provides extra cooling for greater long-term power handling.

The coaxially mounted 0.75" titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides wide, even coverage of the listening area. The extremely broad 130° coverage pattern allows for fewer speakers to be used, making for a simpler and less expensive installation.

Features

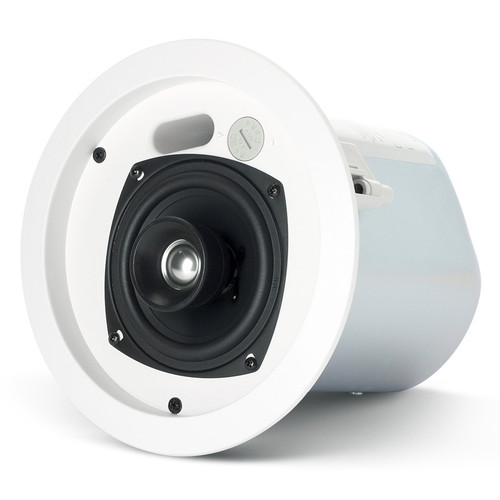

  • Coaxially mounted 4" woofer with butyl rubber surround and 0.75" titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • Sold in Pairs

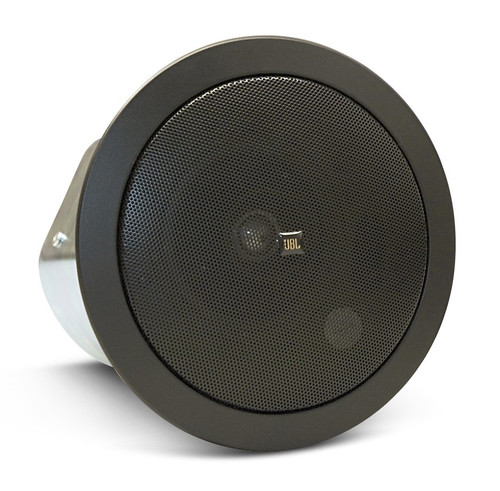

  • Available in black or white

Specifications

Frequency Range (-10 dB) 80 Hz - 20 kHz
Power Capacity 80 Watts Continuous Program Power
40 Watts Continuous Pink Noise
Nominal Sensitivity 86 dB SPL @ 1 m (3.3 ft)
Nominal Coverage Angle 130° conical coverage
Directivity Factor (Q) 2.4 averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 averaged 500 Hz to 4 kHz
Rated Maximum SPL 102 dB @ 1 m (3.3 ft)
Transformer Insertion Loss Max 0.8 dB
Transformer Taps 70V: 30W, 15W, 7.5W & 3.7W taps
100V: 30W, 15W, & 7.5W taps
Enclosure Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Termination Removable locking connector with screw-downterminals. 2 input terminals.
Cutout Size 6.6" (168 mm)
Dimensions (Dia x D) 7.7" (195 mm) x 7.9" (200 mm)
Net Weight (ea) 8 lbs (3.5 kg)
Shipping Weight (Pair) 18 lbs (8 kg)
