Details

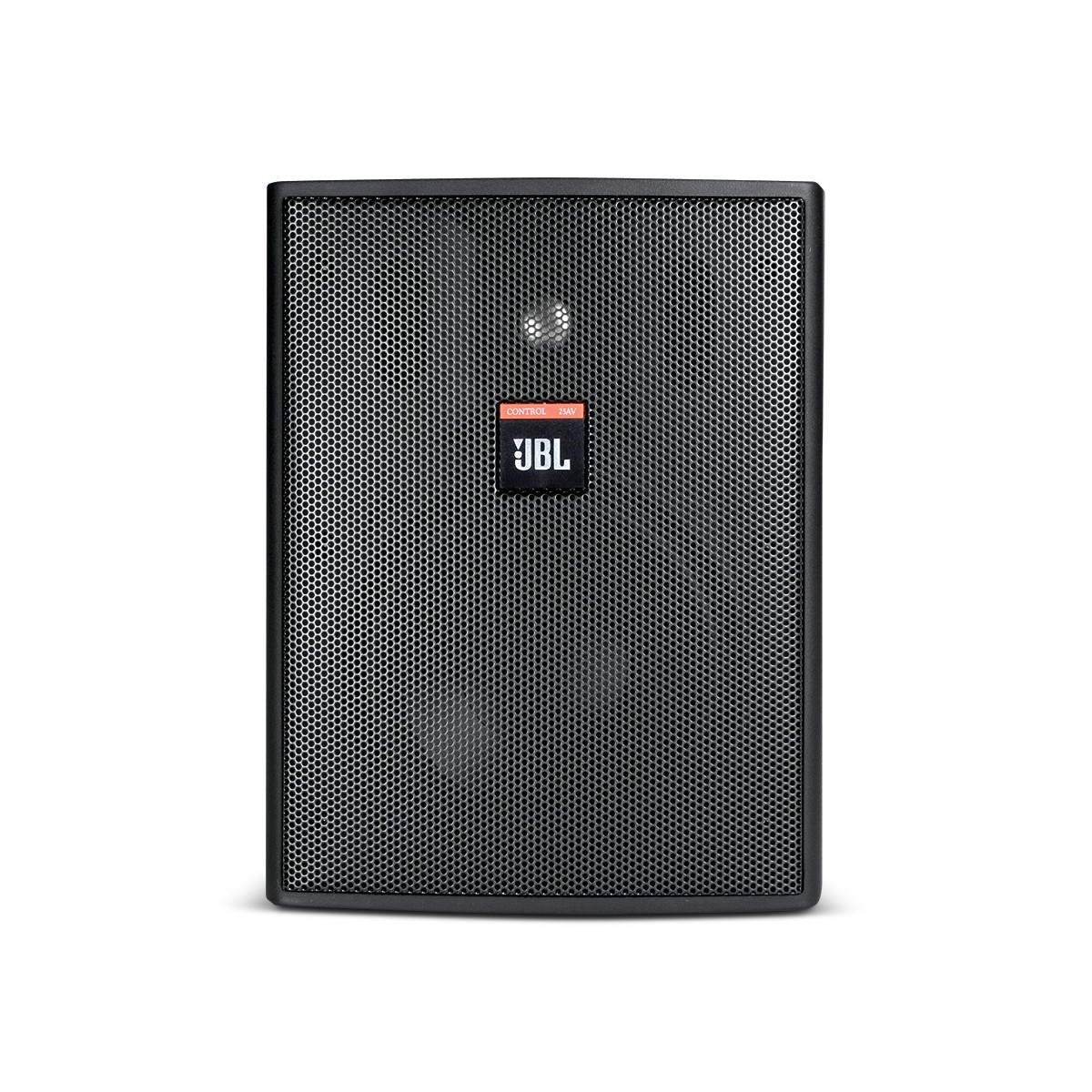

The Control 25AV-LS is an especially wide band-width, smooth response speaker. It features a top-quality 70V/100V transformer for distribution systems which can also be bypassed for use as an 8 ohm speaker.
The JBL Control 25AV-LS is UL1480 UUMW listed for use in fire alarm and/or emergency communication systems. Also EN52-24 certified.- Features
Features
- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems
- Extremely Smooth Frequency Response
- Aluminum Grille with Polyester Powder Coating for enhanced durability
- 60 Watt Transformer for 70V or 100V Lines, with 8 ohm Bypass
- SonicGuard™ overload protection
- 5.25" (130 mm) polypropylene coated woofer, 0.75" (10 mm) titanium coated horn-loaded tweeter
- Includes InvisiBall® mounting hardware and sealed input panel cover
- Captive screw-down input terminals.
- 110° x 85° high-frequency horn
- Specification
System Freq. Range (-10 dB) 90 Hz - 20 kHz Power Capacity 200 Watts Continuous Program Power (at 8 ohm bypass mode)
100 Watts Continuous Pink Noise (at 8 ohm bypass mode)\
60 Watts (at 60W tap setting)Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V) Nominal Sensitivity 87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode)
71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)Nominal Coverage Angle 110° x 85° (1kHz to 16kHz) Directivity Factor (Q) 4.8 (500 Hz to 4kHz) Directivity Index (DI) 107 dB @ 1 m (3.3 ft) average, 113 dB peak Rated Maximum SPL 8 ohms (in bypass mode) Safety Agency UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849 Physical LF Driver 5.25" (130mm) with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former HF Driver .75" (20mm) titanium coated PEI Termination Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm) Cabinet Material ABS, (materials rated UL94-5VA) Grille Aluminum with polyester powder coating Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating. Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition Dimensions (H x W x D) 9.3" (236 mm) x 7.4" (186 mm) x 6.3" (159 mm) Weights Net Weight (ea) 8.4 lbs (3.8 kg) Shipping Weight (pair) 19 lbs (8.6 kg) - Documents
- In The Box
In The Box
- (1) MTC-PC2 input panel cover
- (1) Invisiball mounting base
- (1) 6 mm x 100 mm Invisiball hex wrench
