Details
The JBL Control 28T-60 has been replaced with the JBL Control 28-1.
The JBL Control 28T-60 is the largest of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers. Its rich sonic character makes the Control 28T-60 a perfect choice for restaurants, health clubs, under balcony, outdoor theme and water parks, or other applications where foreground/ background music and paging are required.
The Control 28T-60 can be used in either 70.7V or 100V distributed-line sound systems. Taps are provided at 60W, 30W and 15W (plus a 7.5W tap for use on 70.7V systems only).
The unique InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to ±37° and horizontal rotation of up to ±44°. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed, while providing a high degree of theft deterrence as well.
The Control 28T-60 readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting.- Features
Features
- Isolation transformer for 70.7V/100V distributed-line sound systems
- 8" Polypropylene coated woofer, 1" Titanium coated horn loaded tweeter
- Built-in InvisiBall mounting hardware
- Weather resistant enclosure and transducers
- Readily paintable
- 90° x 90° high frequency horn
- Overload Protection Circuitry
- Sold in Pairs

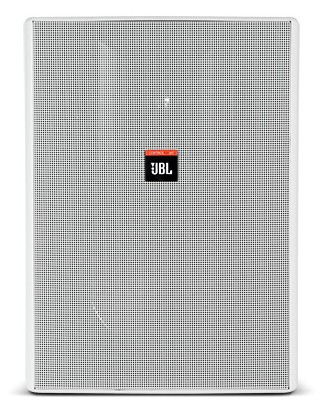

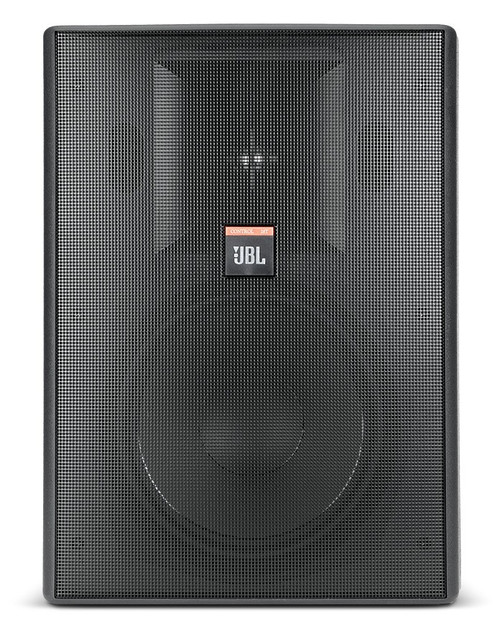

- Available in Black or White
- Specification
Frequency Range (-10 dB) 55Hz to 15kHz 100V Line 60 W, 30 W, 15 W 70 V Line 60 W, 30 W, 15 W, 7.5 W Nominal Max Output by Tap 70.7V Input Tap #1 99 dB Tap #2 102 dB Tap #3 105 dB Tap #4 107 dB 100V Input Tap #1 102 dB Tap #2 105 dB Tap #3 107 dB Tap #4 (Do not use) Nominal Coverage 90° x 90° Directivity Factor (Q) 7.5 dB Directivity Index (DI) 8.8 dB Crossover Frequency 2.8kHz LF Driver 8" Polypropylene cone with WeatherEdge HF Driver 1" Titanium coated polycarbonate Enclosure Material HIPS (High Impact Polystyrene) Overload Protection Full-Range power limiting to protect network and transducers Termination Spring terminals, accepts banana plug Finish Black or White Dimensions (H x W x D) 11" (280 mm) x 15" (380 mm) x 8.6" (220 mm) Net Weight (ea) 14.3 lbs (6.5 kg) Shipping Weight (pair) 33 lbs (15 kg) - Documents
