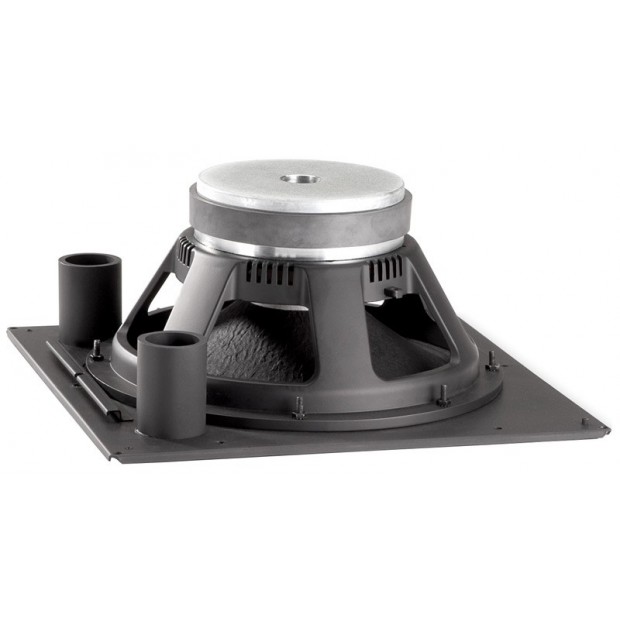

The JBL Control 312CS is an excellent addition to JBL Control 321, 322 and 328 loudspeaker systems, or any fullrange loudspeaker system that requires extended bass response. The 300 mm (12 inch driver features a Kevlar-reinforced low frequency cone for reliability, well-damped surround, extended excursion capability, high temperature 75 mm (3 in) voicecoil and reduced distortion through saturatedgap magnet geometry. The Control 312CS is easy to install. The innovative EZRail™ feature built into the metal baffle temporarily holds one side of the speaker baffle in place until the installer can affix the baffle to the backcan with screws. The removable multi-pin locking connector, with secure screw-down terminals, allows for pre-wiring the input wires for easy clip-on convenience during installation.
| Frequency Range (-10 dB) | 30 Hz-4.5 kHz |
|---|---|
| Frequency Response (±3 dB) | 34 Hz-3.5 kHz |
| Long-Term System Power Rating | 400 W (1000 W peak), 2 hrs; 250 W (600 W peak), 100 hrs |
| Sensitivity (2.83V @ 1m) | 93 dB3 measured half-space |
| Maximum SPL | 121 dB cont ave (124 dB peak) |
| Nominal Impedance | 8 ohms |
| Driver | Kevlar reinforced cone, 75 mm (3 in) voice coil |
| Input Connector | Removable locking connector with screw-down terminals |
| Dimensions (H x W x D) | 14.4" (366 mm) x 14.4" (366 mm) square baffle x 6.3" (160 mm) depth from back of baffle |
| Net Weight | 17 lbs (7.7 kg) |
| Shipping Weight | 18.5 lbs (8.4 kg) |
