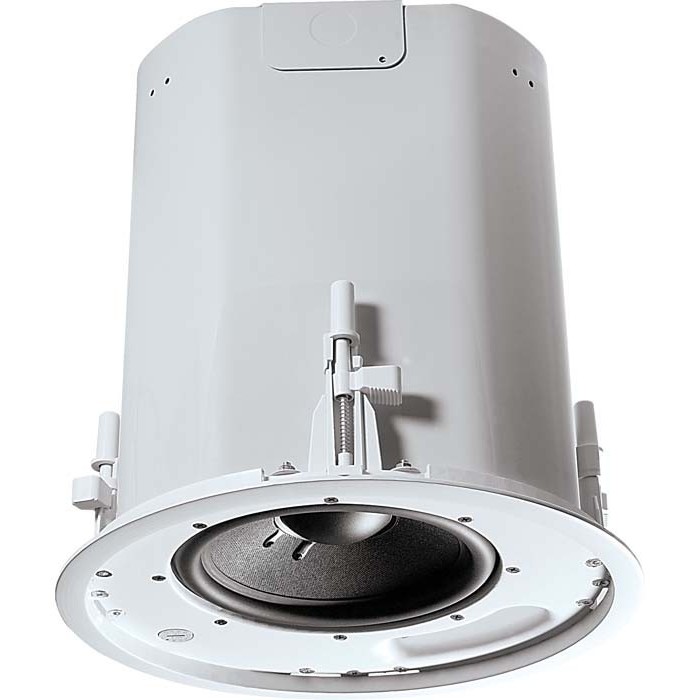

The Control 40CS/T is a direct radiating, high impact, 8" subwoofer designed to produce powerful bass performance in an in-ceiling loudspeaker. Featuring high power handling and low distortion, the Control 40CS/T subwoofer is perfect for in-ceiling sound systems requiring higher fidelity and low end extension.
The Control 40CS/T also features a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42C, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance.
Featuring a large backcan along with a high powered driver, the Control 40CS/T provides extended bass response for a warm full-bodied tone. The system’s 200 mm (8 in) woofer features a polypropylene cone and pure butyl-rubber surround for long life. The copper-clad aluminum voice coil wound on a vented aluminum former provides low distortion and high sensitivity.
Ideal for small and large projects alike, the Control 40CS/T is switchable for use as either an 8-ohm low-impedance speaker, or as part of a 70V/100V distributed loudspeaker system.
| Transducer (Driver) | 200 mm with polypropylene cone, butyl rubber surround, copper-clad coil, vented aluminum former |
|---|---|
| Frequency Range (-10 dB) | 32 Hz-300 Hz |
| Frequency Response (± 3 dB) | 50 Hz-180 Hz |
| Power Capacity | 200 Watts Continuous Program Power; 100 Watts Continuous Pink Noise |
| Nominal Sensitivity (2.83V/1m) | 95 dB (near corner), 89 dB (center of ceiling) |
| Rated Maximum SPL | 109 dB @ 1 m (3.3 ft) average, 115 dB peak, 115 dB @ 1 m (3.3 ft) average, 121 dB peak |
| Rated Impedance | 8 ohms (in bypass mode) |
| Transformer Taps | 80 W 40 W, 20 W, (& 10 W @ 70V) |
| Input Connectors | Six removeable locking 2-pin connectors with screwdown terminals. Max wire 12 AWG (2.5 mm) |
| Knockouts | Two (top and side) |
| Ceiling Thickness Range | Accommodates tiles/drywall up to 70 mm (2.75 inches) thick |
| Cutout Size (Dia) | 12.1" (307 mm) |
| Dimensions (Dia x D) | 13.1" (332 mm) x 13.3" (338 mm) |
| Weight | 17.9 lbs (8.1 kg) |
