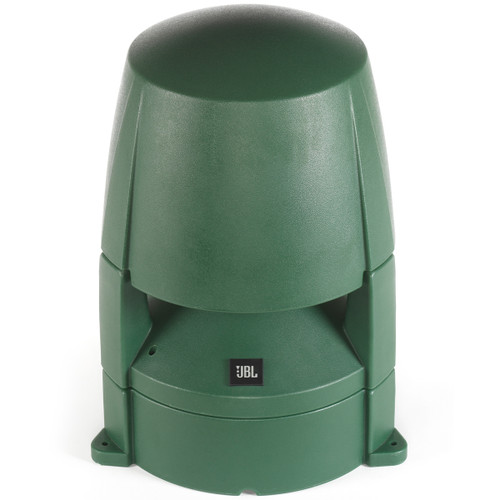

The Control 89MS Above-Ground Landscape Subwoofer augments the low-frequency performance of the JBL Control 80 Series landscape speaker line (and other outdoor systems) to provide rich bass in lawn, garden, and entrance areas of hotels, restaurants and other hospitality and retail complexes, as well as theme parks, sports venues, resorts, entranceways, and anywhere a highly weather-resistant speaker is required.
This sleek, attractive, compact subwoofer features a down-firing, long-throw 200 mm (8-inch) driver which delivers 115 dB (peak) of clean, powerful bass down to 40 Hz. The built-in low-pass crossover features a dual-slope filter which begins with a gentle slope at the crossover frequency and transitions to a steeper slope at higher frequencies), creating a balanced subwoofer transition regardless of whether the speaker is driven from a full-range or a dedicated subwoofer amplifier channel. The premium-grade dedicated-subwoofer-band multi-tap transformer (and tap selector with 8Ω bypass) allows the Control 89MS to be used in 70V and 100V distributed systems or driven directly at low impedance, for maximum versatility.
The Control 89MS is IP56-rated to withstand the elements, with a tough polyethylene enclosure and a fully-sealed center wiring chamber. The enclosure color extends throughout the cabinet, maintaining color even when scraped or scratched. All external hardware is stainless steel, and the powder-coated stainless steel grille resists rusting.
| Frequency Response (-10dB) | 40 Hz – 150 Hz |
|---|---|
| Frequency Response (±3 dB) | 53 Hz – 110 Hz |
| Power Rating | 300W: Continuous Program (2 hrs) 150W: (600 W Peak), Continuous Pink Noise (2 hrs) 100W: (400 W Peak), Continuous Pink Noise (100 hrs) |
| Transformer Taps | 70V: 80W, 40W, 20W, 10W 100V: 80W, 40W, 20W |
| Maximum Input Voltage | 31V (based on 2 hr. Continuous Pink Noise rating and min-Z) |
| Sensitivity | 87 dB (ave. 60 Hz – 105 Hz) |
| Nominal Coverage Angle | 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground) |
| Directivity (Q) | 2.0 (with half-space, 2π, on-ground loading) |
| Directivity Index (DI) | 3.0 |
| Rated Maximum SPL | 115 dB peak (109 dB continuous, 2 hr) @ 1m |
| Nominal Impedance | 8Ω (at 8Ω tap) |
| Insertion Loss | |
| Thru Setting | 8Ω nominal |
| Crossover Type | Complex dual-slope 2nd order low-pass with additional impedance compensation |
| Recommended Protective High-Pass | 40 Hz for 8Ω operation and for all tap settings, 24 dB/oct |
| Driver | 200 mm (8-inch) driver, polypropylene injection cone, long-excursion corrosionresistant TPV (thermoplastic vulcanizate) surround, and 50 mm (2-inch) voice coil on 80% glass fiber + polyamide coil former |
| Enclosure Material | LDPE Polyethylene plastic, 6 mm minimum wall thickness, UL94V-HB rated, color throughout |
| Grille | Powder coated stainless steel |
| Environmental | IP-56 rating per IEC529 (dust protected and protected against strong jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature, & UV. Passes Mil-Std-202F for salt spray. Enclosure UL94V-HB rated |
| Agency Ratings | UL1480A Speakers for Commercial and Professional Use, for outdoor wet locations; CSA C22.2 No. 205-12, Signal Equipment. Transformer UL Recognized per UL1876, ROHS compliant |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section) |
| Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one in the bulkhead between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16" in and 0.35" in). For Installation instructions, see Installation Guide (#ISC80MLS-B) |
| Colors | Hunter Green, RAL 6018 |
| Included Accessories | (2) wire nuts, (2) gland nuts, (1) security screwdrive |
| Installer-Supplied Required Tools | 22 mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure |
| Dimensions (H x Dia) | 20.7" (524 mm) x 14" (355 mm) |
| Net Weight | 24 lbs (10.9 kg) |
| Shipping Weight | 30 lbs (13.6 kg) |
