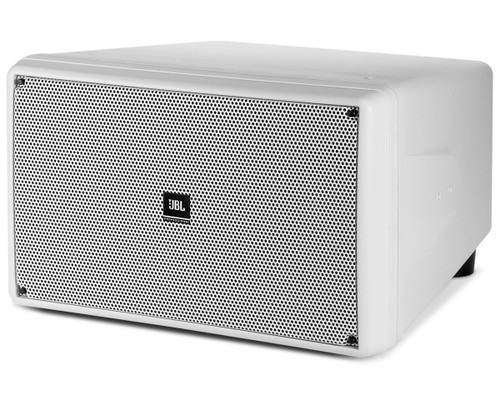

JBL Control SB2210 Dual 10" Indoor/Outdoor Compact Subwoofer
Part # CONTROL SB2210
Model # Control SB2210

The JBL Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $772.00

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

JBL Control SB2210 Dual 10" Indoor Outdoor Compact Subwoofer

The SB2210 Control provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.

The internal angled baffle allows for a large port opening and compact front dimensions without compromising driver size. The Control SB2210 produces warm, punchy low-end sound.

The 10" (250 mm) diameter low-frequency drivers feature a long-excursion design and extended low-frequency performance. The driver's woven fiberglass cone delivers robust performance and the highly damped butyl rubber surround and linear suspension spider design provide clean sound quality with lower distortion. The driver's high temperature anodized aluminum voice coil former, voice coil wire, and adhesive ensure stable performance under long time high power working conditions. An FEA optimized motor construction reduces harmonic distortion while an aluminum conductive ring coupled to the outside of the pole post reduces harmonic distortion.

Included with the Control SB2210 are four feet for floor and shelf placement. Thirteen M6 insert points allow for installation using forged shoulder eyebolts (with included bevel washers) for suspending the subwoofer, or for mounting to a wall or ceiling via the optional MTC-210UB U-Bracket. The cabinet is available in black or white (Control SB2210-WH) and is paintable. The thermoset composite-coated grille stands up to UV as well as humidity and direct exposure to water. The grille is backed with a combination of materials that, while acoustically transparent, prevent the intrusion of water into the cabinet.

Features

Features

  • 2 x 10" (250 mm) Woven Fiberglass Cone LF Drivers
  • 500W Power handling
  • Frequency Response Down to 38 Hz
  • 13 x M6 Insert Points Including Inserts for Optional U-Bracket
  • Compact, Low Profile Design
Specification
Frequency Range (-10 dB)38 Hz - 500 Hz
Frequency Response (-3 dB)48 Hz - 95 Hz
Power Rating500W (2000W peak) Continuous Pink Noise (2 hrs)
1000W Continuous Program (2 hrs)
400W (1600W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage60.0V RMS (2 hrs), 120V peak
Sensitivity95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)
Max SPL122 dB in half-space (2π loading)
Nominal Impedance
Minimum Impedance7.2Ω at 160 Hz
Recommended Filter45 Hz, 24 dB/oct high-pass filter
Low FrequencyTwo 10" (250 mm) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring
Enclosure MaterialHigh Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance
GrilleThermoset composite coated steel, zinc-plated, 3-layer foam backing
EnvironmentalIP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray
TerminalsScrew-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection
Agency RatingROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876
ColorsBlack or white (-WH)
Included Accessories1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers
Optional AccessoriesMTC-210UB (&-WH) U-Bracket
MTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs.
Transformer Taps:
70V: 300W, 150W, 75W, 38W
100V: 300W, 150W, 75W
Dimensions (H x W x D)14" (355 mm) x 23.3" (590 mm) x 22.5" (570 mm)
Net Weight51.4 lbs (23.31 kg)
Shipping Weight57 lbs (25.85 kg)
