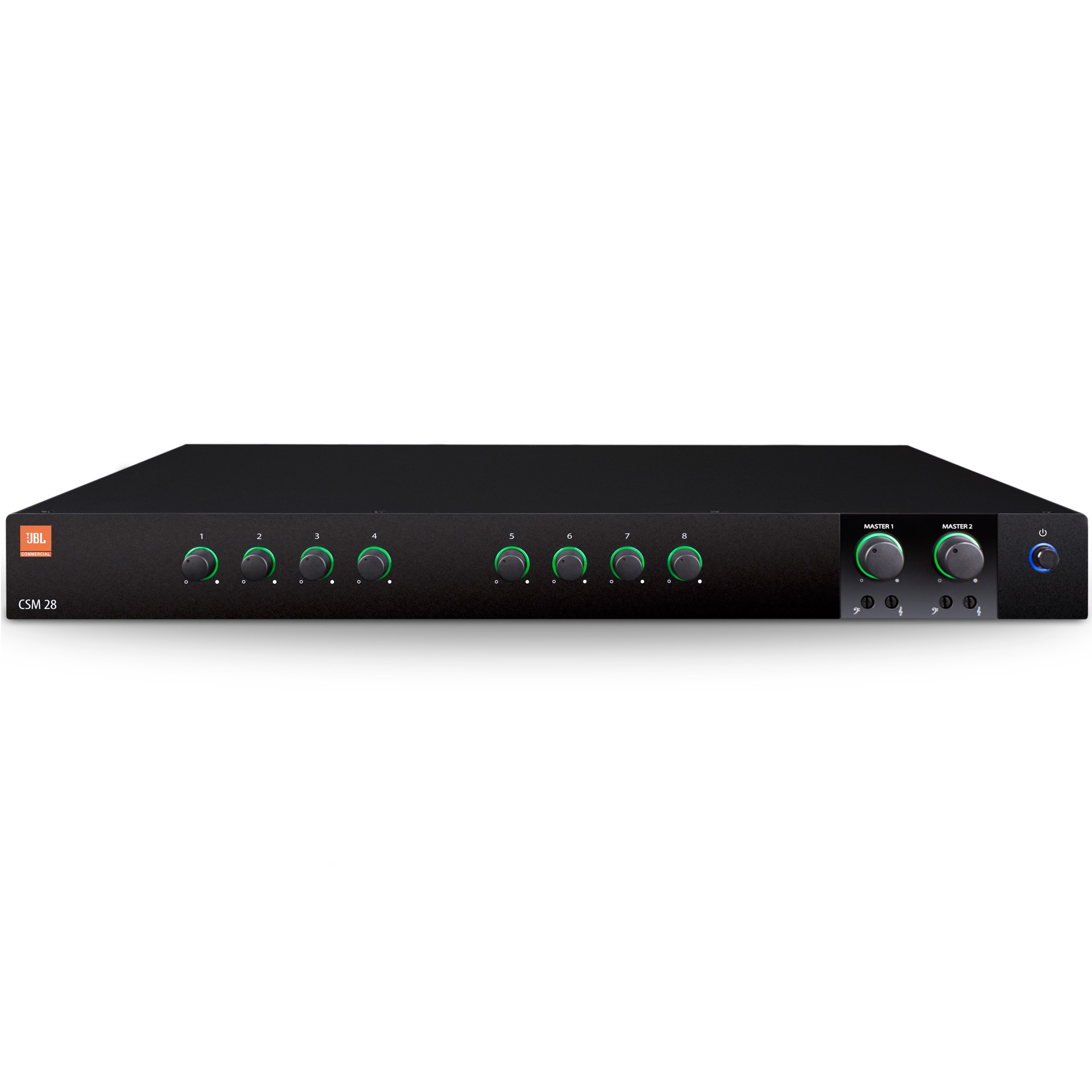

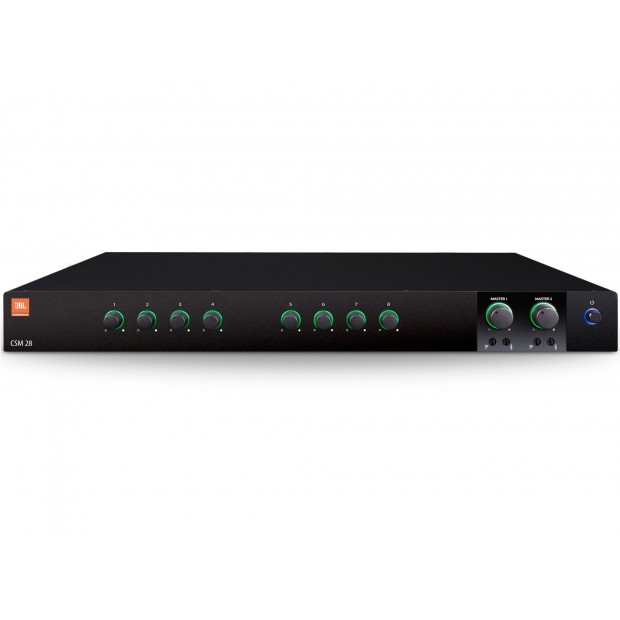

Easily configured for a range of applications, such as background music, security, and paging, the CSM 28 Commerical Mixer is designed for everything from schools and hospitals to restaurants and fitness facilities.
It features RJ45 connectors for use with JBL CSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, it's built using HARMAN’s GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.
| Number of Input Channels | 8 |
|---|---|
| Number of Output Channels | 2 |
| Line Output Level | 5.0Vrms into 10kΩ |
| Input Sensitivity to Obtain 5Vrms to Line Out | Mic Input: 3mVrms, Line Input: 775 mVrms, RCA Input: 300mVrms |
| Frequency Response | 20Hz - 20kHz, +/-1 dB |
| Total Harmonic Distortion (THD) | 0.05% Typical (Measured with 5Vrmsat Output) |
| Signal-to-Noise Ratio | >90 dB |
| Input Impedance (Nominal) | Mic: 400Ω, Line: 20KΩ (Balance), RCA: 50KΩ |
| Phantom Power | +27V DC |
| Crosstalk | >70 dB (Ref. 5Vrms from Output, Volume @ Mid Position, A-Weighted, 1kHz) |
| Tone Controls | Bass +/-10 dB @ 100HzTreble +/-10 dB @10kHz (Bass and Treble Non-Detented Potentiometers on Each Channel) |
| Nominal AC Line Voltages | 100-240V, 50/60 Hz |
| Operating Temperature/Humidity | 0°C to 40°C @ 95% R.H. (non-condensing) |
| Storage Temperature | -20°C to 85°C |
| Dimensions (H x W x D) | 1.7" (43.3 mm) x 17.2" (437 mm) x 11.9" (303.4 mm) |
| Net Weight | 7.5 lbs (3.4 kg) |
| Shipping Weight | 10.8 lbs (4.9 kg) |
